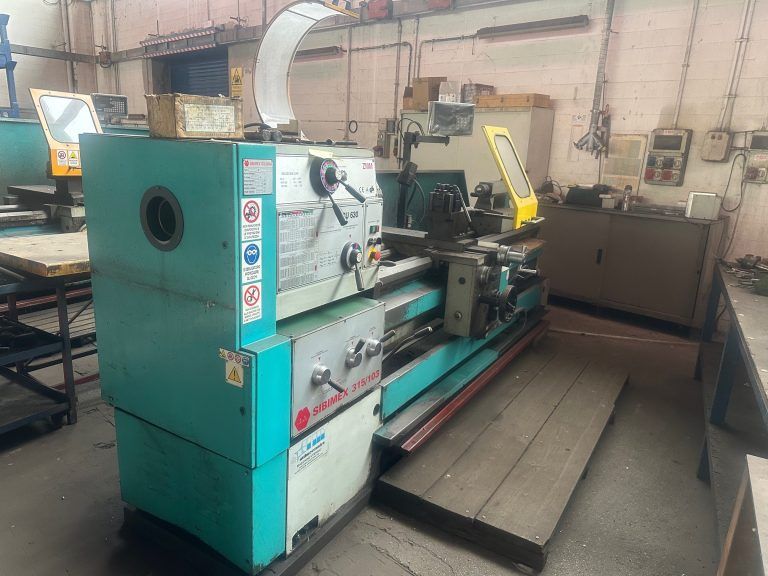

ZMM Engine Lathe 1250 rpm -SIBIMEX CU 630

Center height 315 mm
Swing over bed 630 mm
Swing over carriage 430 mm
Swing in gap 830 mm
Bed width 400 mm
Distance between centers 2000 mm
Spindle bore 103 mm
Spindle nose Camlock 11
Spindle speed range 11.5 – 1250 rpm
Number of spindle speeds 11
Spindle motor power 11 kW
Bed with gap and removable bridge
Hardened and ground guideways
2-axis digital readout
Emergency brake with rack system
Mechanical multi-disc clutch
Rapid longitudinal feed
Rapid cross feed
Automatic feed and threading gearbox
Automatic lubrication for gearbox
Self-centering chuck
Steady rest
Follow rest
Rotating tailstock
Coolant system with pump
Quick change toolpost
Flange for chuck
Dead center
Reduction sleeve
Spindle guard
Toolpost guard
Rear sheet metal guard
Instruction manual
CE declaration
Weight 3300 kg
