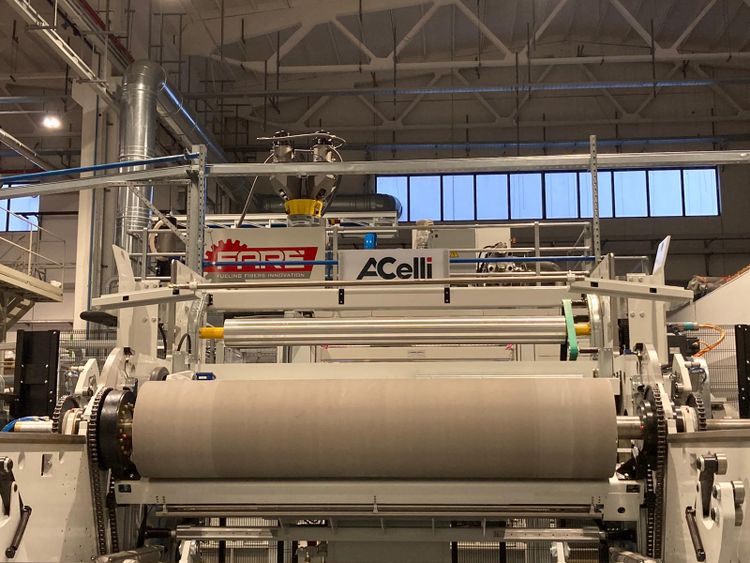

Acelli FARE

1.03 Configuration 1 head (YM)
1.04 Useful width 1600 mm (full height or up to 9 bands of 180 mm each)
1.05 Capacity 105 Kg/h (840 tons/year)
1.06 Weight 10 - 150 gsm
1.07 System size Approximately 9 x 20 x 6,5 m. height
1.08 Working width 1800 mm
1.09 Max reel diameter Up to 1200 mm
1.10 Production speed Up to 150 m/min
1.13 Support structure Yes, with motorized roller
1.14 Generatore Yes, 35 kV DC
1.15 Nonwoven tension control Yes
1.16 Winding unit Yes
1.17 Cutting group Yes, longitudinal
1.18 Cleaning oven With closed chamber
1.19 Washing tub Ultrasound
1.20 Power supplies :
Electrical current: 3x 380 V, 50 Hz
Air pressure: 8 bar
1.21 Accessories 10 pneumatic knives
1.22 Availability Immediate
1.23 Further information Extruder for the production of TNT masks, sheets and gowns
