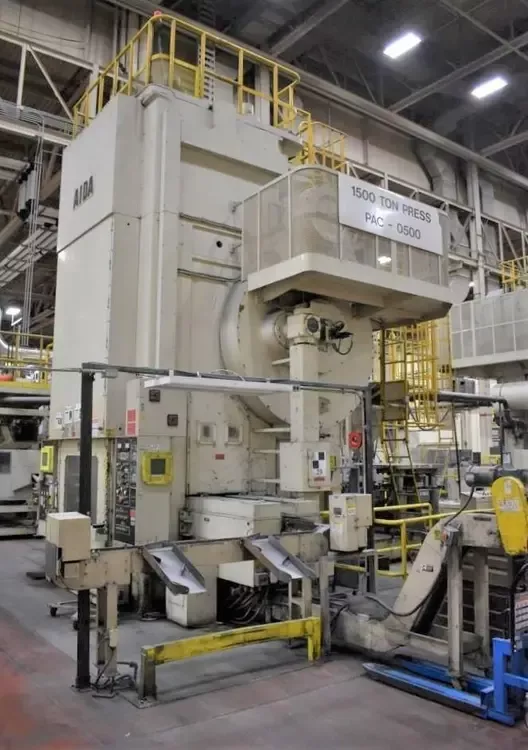

Aida PK-1500 1500 Ton

Tonnage: 1500 Ton
Slide Stroke: 9.84"
Die Height: 44.09"
Slide Adjustment: 1.18"
Bolster Area: 47.24" x 47.24"
Slide Area: 47.24" x 47.24"
Speed (Variable): 25–40 SPM
Bolster Thickness: 11.81"
Main Motor: 125 HP DC
Voltage: 480 V
Frequency: 60 Hz
Phases: 3

Bed Knockout Type: Mechanical
Bed Knockout Force: 82 Ton
Bed Knockout Stroke: 2.95"
Knockout Pin Diameter: 3.15"
2nd Stage Center Installed
Common Pin Lifter with Bed Knockout Pin

Transfer Device: 2-Axis
Feed Stroke: 7.87"
Clamping Stroke (Per Side): 3.93"
Clamp Inside Distance of Feed Bars: 9.84"
Feed Bar Bottom Face Height from Bolster: 27.99"

Machine Height: 292"
Machine Weight: 218,600 lbs
