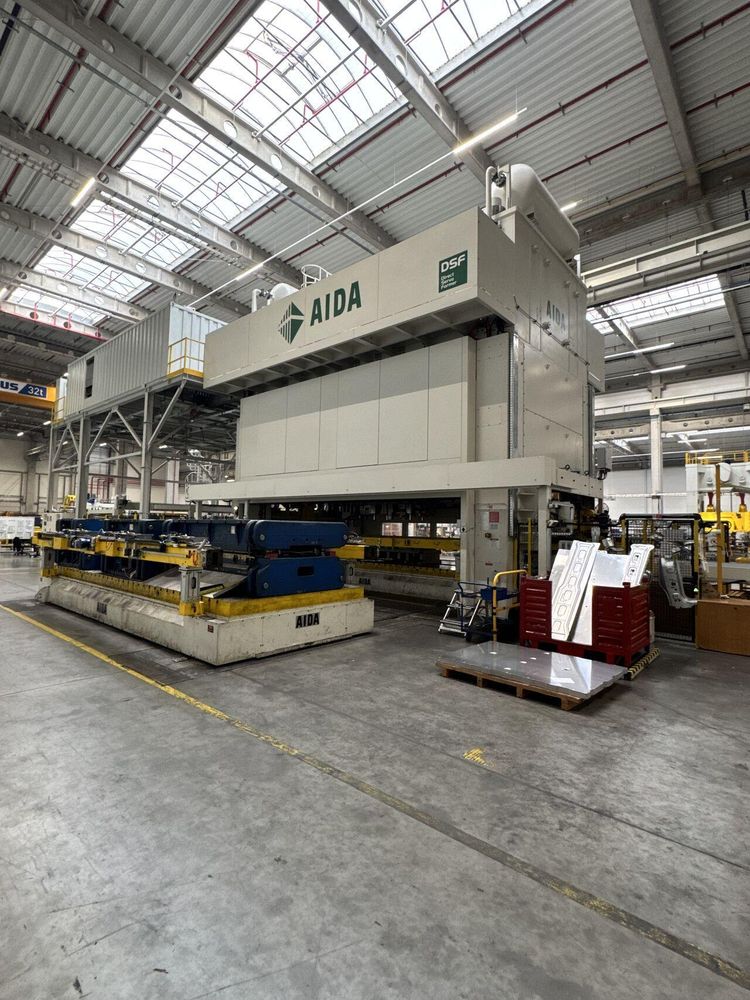

Aida DFS-TE4-20000(2) 730-250 2,000 tons

Nominal Press Force 2,000 tons
Drive System Full Servo Drive
Stroke 800 mm
Stroke Rate up to 50 strokes per minute
Ram Adjustment 400 mm
Side Opening 3,650 mm
Bolster Area 7,300 × 2,500 mm
Ram Area 7,300 × 2,500 mm
Transfer Pitch 0 – 1,250 mm
Transfer Opening 700 – 2,740 mm
Transfer Stroke 0 – 350 mm
Coil Material Thickness Range 0.5 – 3.0 mm
Maximum Material Width 1,800 mm
Decoiler Load Capacity 20 tons
Integrated NORDA Transfer System
Millutensil Coil Feeding Line
Applications: Automotive body and structural components, high-strength and advanced steel forming, high-volume transfer stamping operations
Enhanced forming flexibility through servo motion profiles
Reduced setup time and increased process control
