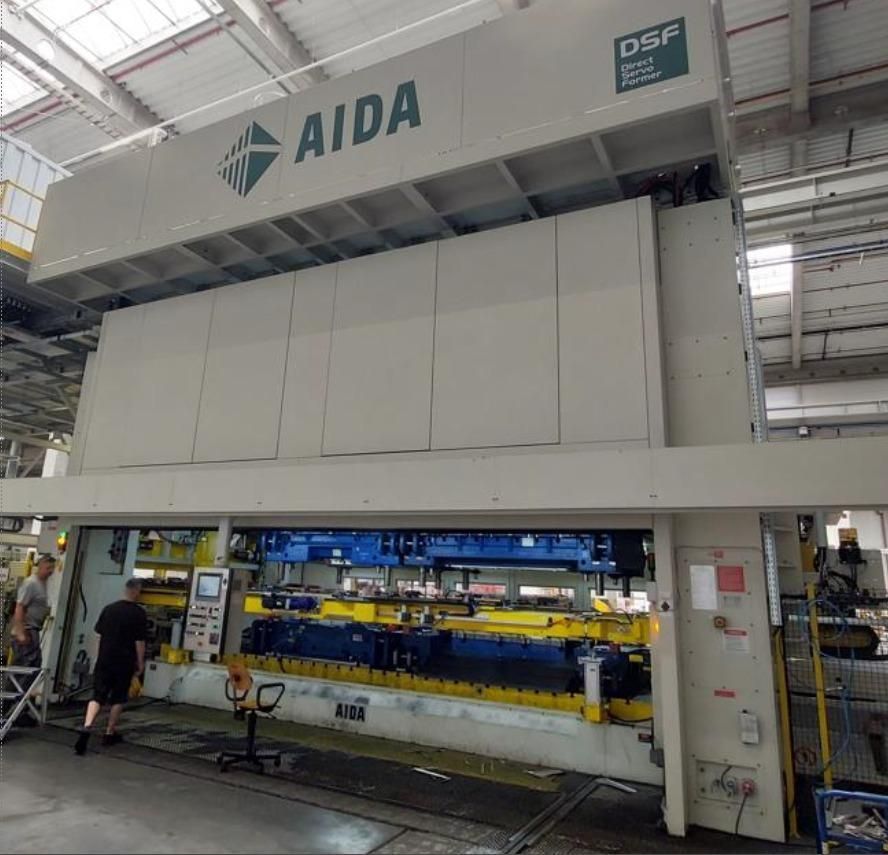

Aida DFS-TE4-20000(2) 730-250 2000 Ton

Press Force 2000 Ton
Press Type Servo Transfer Press
Type Servo-Transfer-Progressive
Material Feeding System Coil Feeding - Destacker
Press Process Transfer 3-28 / Progress 3-50
Press Bed 7300 x 2500 mm
Slide Stroke 800 mm
Speed 20 - 50 SPM
Slide Adjustment 400 mm
Shut Height (SDAU) 1200 mm
Distance Between Uprights 7880 mm
Opening in Uprights 2300 mm
Bolster Area (LR x FR) 7300 x 2500 mm
Moving Bolster Height 750 mm
Hydraulic Cushion N/A
Cushion Capacity on Station 1 N/A
Plaque Dimension (LR x FR) N/A
Working Stroke Cushions N/A
Die Height (min / max) 800 / 1200 mm
Coil Weight (max) 20 Ton
Material Thickness (min / max) 0.5 - 3 mm
Material Width (min / max) 300 - 1800 mm
RM Coil Inner Dim. (min / max) 475 - 620 mm
RM Coil Outer Dim. (max) 2000 mm
