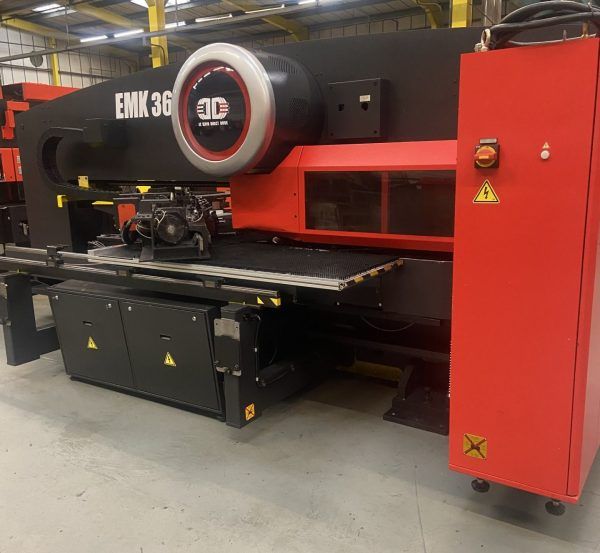

Amada EM3610NT 30 t

Press force 30 t
High speed AC servo direct twin drive
Working size 1525 x 2500 mm
Max sheet size with auto repositioning 1525 x 5000 mm
Max material thickness 4.5 mm mild steel
Max sheet weight 160 kg
Max hole size 114.3 mm
58 station turret
36 x A stations max dia 12.7 mm
12 x B stations max dia 31.7 mm
4 x C stations max dia 50.8 mm
2 x D stations max dia 88.9 mm
2 x B auto indexing stations max dia 31.7 mm
2 x E auto indexing stations max dia 114.3 mm
Combined X/Y axis speed 128 m/min
Turret speed 330 rpm
Punching accuracy ±0.1 mm
Positioning repeatability ±0.07 mm
Ram stroke length 37 mm
Tool lubrication air blow system
Axis drives AC servo motor
Electric power requirement 22 kVA
Voltage 400 V ±10%
Frequency 50 Hz
Air pressure required 5.0 kgf/cm²
Air flow 250 l/min
Machine length 5423 mm
Machine width 5120 mm
Machine height 2318 mm
Machine weight 24.5 t
Safety light guards
Control Amada AMNC-F (Fanuc 180i-PB)
