Amada FBD-8025E

Ref : 32342
Condition : Used
Manufacturer : Amada
Model : FBD-8025E
Pressure : -
Year(s) : -
Quantity : 1
Location : Seller or machines location:
United States (USA)

Reference #32342

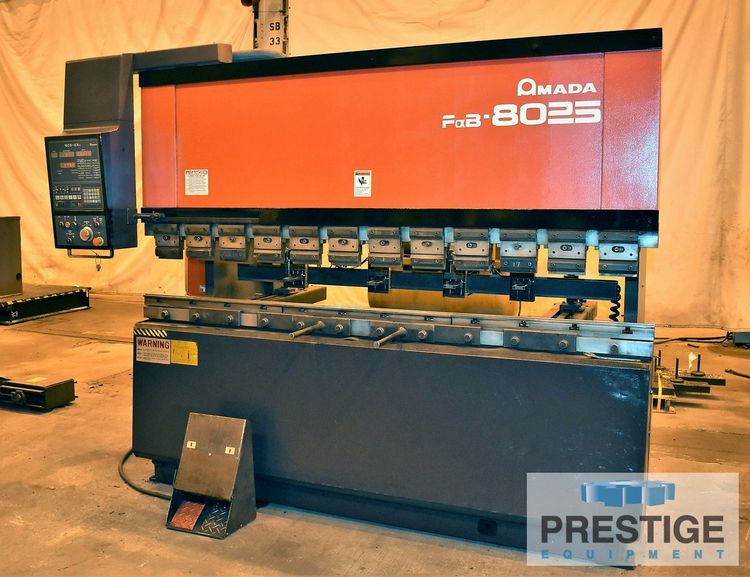

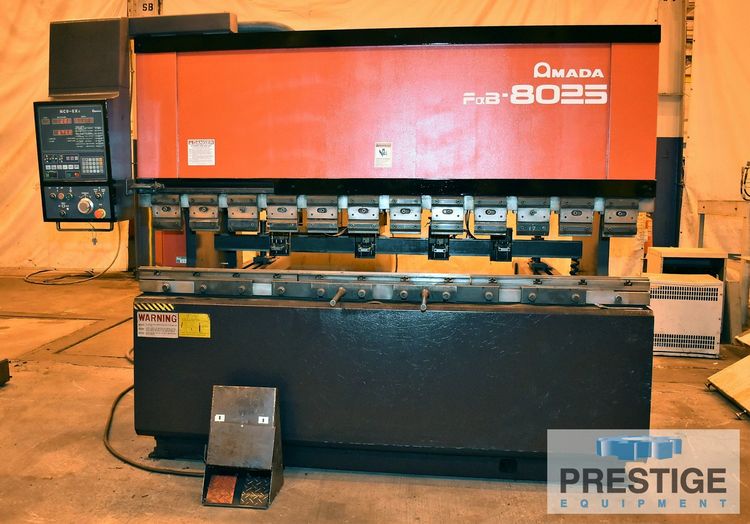

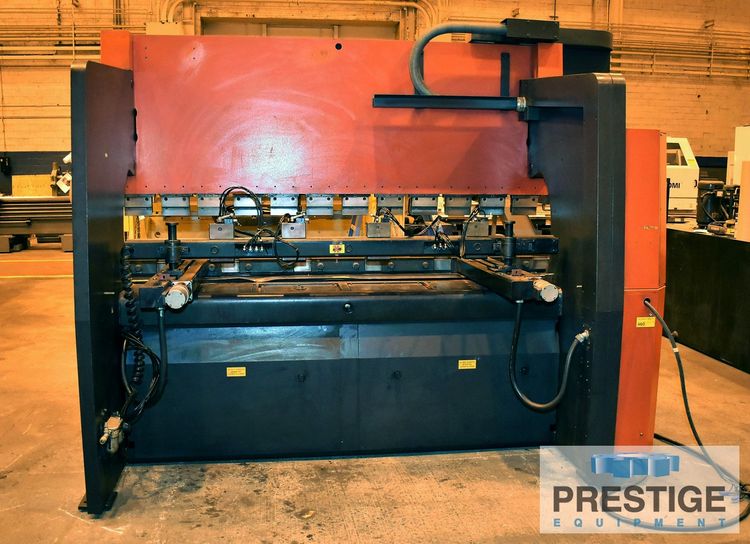

Amada FBD-8025 Amada 3-Axis CNC Hydraulic Press Brake


FEATURES:

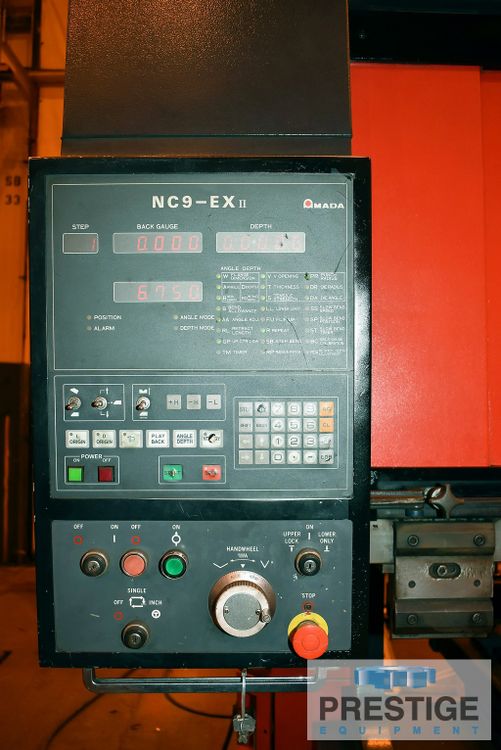

NC9-EX-II 3-Axis CNC Control
Upper Tool Holder Clamps
Full Set of Lower Die Holders
Electric Foot Switch

SPECIFICATIONS:
Maximum Tonnage Capacity .............. 88 Ton
Overall Length Of Bed & Ram ........... 98.43"
Distance Between Housings ............. 86.61"
Throat Depth .......................... 15.75"
Stroke Length ......................... 3.9"
No. Of Cyclinders ..................... 3
Main Motor ............................ 7.5 HP
Approx. Overall Weight ................ 12,500 Lbs
Approx. Dimensions .................... 116"L x 57"W x H 89"H

EQUIPPED WITH:
NC9-EX-II 3-Axis CNC Control
Upper Tool Holder Clamps
Full Set of Lower Die Holders
Electric Foot Switch
Dual Voltage 220/440 Electrics

NOTE:
Inspect in our Philadelphia, PA. Warehouse
