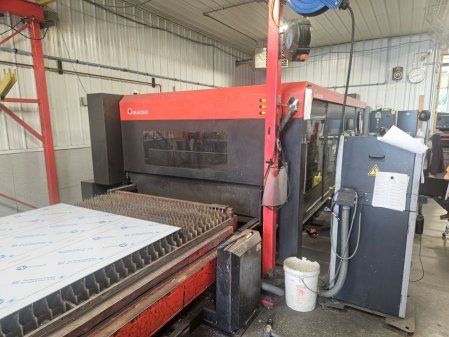

Amada FOM2-3015NT CO2 LASER AMNC PC-OS, Windows embedded

Travel method: X & Y-axis beam move
Drive method: X rack & pinion, Y & Z ball screw
Work area X: 121"
Work area Y: 61"
Work area Z: 7.87"
Maximum thickness mild steel: 7/8"
Maximum thickness stainless steel: 1/2"
Maximum thickness aluminum: 3/8"
Maximum work weight: 2000 lbs
Rapid traverse X & Y: 3150 IPM
Rapid traverse simultaneous: 4455 IPM
Rapid traverse Z: 2362 IPM
Repeatability: +/- 0.0002"
Z-axis sensor: HS-2007
CNC: AMNC PC-OS, Windows embedded
Assist gas control: Automatic select
Approximate machine weight: 34,216 lbs
Power requirements: 200/220V +/- 10%, 50/60 Hz

CNC controller model: AMNC-NT
Display: LCD color graphics display
Control function X,Y,Z-axis simultaneous
Control function focus lens B-axis
Control function adaptive optic
Control function laser power control (CW, gated pulse, pierce routines, etc.)
Data input method: Touch screen, keyboard, ethernet, wireless, CD, USB, 3.5" floppy disk
Minimum command unit (X,Y,Z): 0.0001"
Minimum travel unit (X,Y,Z): 0.0001"
Standard memory: 2 MB
Hard drive: 10 GB
Operating modes: Automatic and manual
Display modes: Program contents, position information, program check, settings, parameters, beam diameter compensation, assist gas status, self-diagnostics
Interlock displays: Cooling water status, gas pressure status, vacuum status, turbo blower malfunction, shutter status, beam power, resonator discharge, door open, WACS

Chiller
Beam purge
