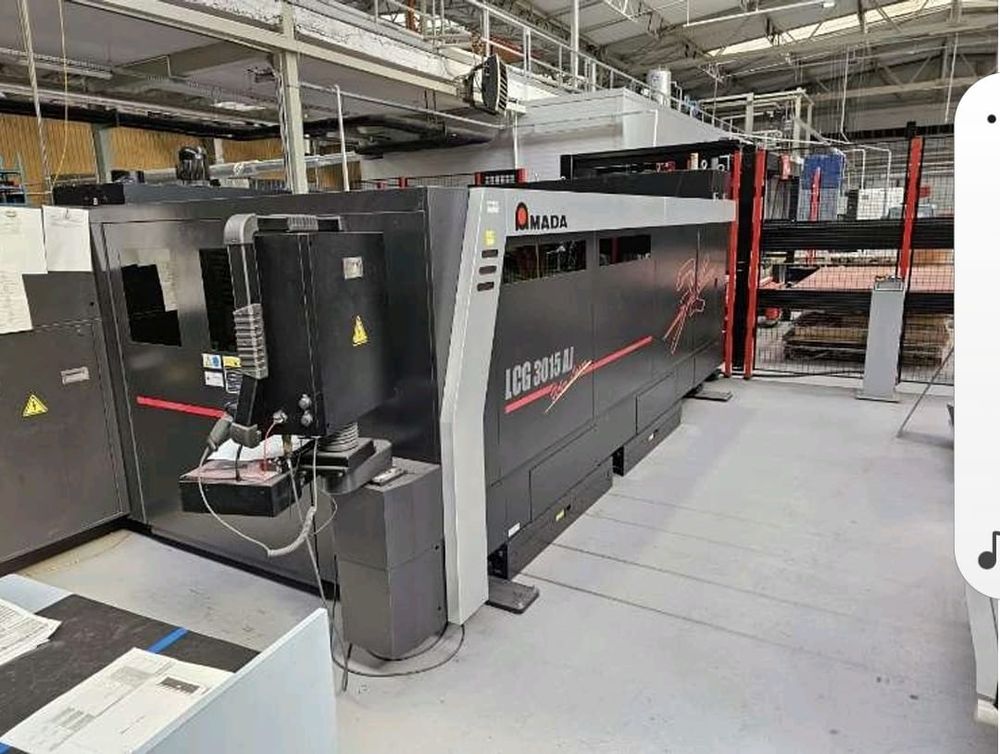

Amada LCG 3015 AJ 4kw Fibre Laser Machine with MP Flexit CNC CONTROL

Single pallet load/unload system (MPF)
Low cutting hours
Autofocus
Nozzle changer
WACs
Oil shot
Fully automatic CAM system
X-direction conveyor
HS capacitance head
Front & side access
Compressed air cutting
AMNC 3i control

Axis traverse distance 3070 x 1550 x 100 mm
Controlled axes X, Y, Z + B axis
Max material thickness 20 mm mild steel
Max material thickness 18 mm stainless
Max material thickness 16 mm aluminium
Max material thickness 10 mm brass
Max material thickness 8 mm copper
Max processing dimensions 3070 x 1550 mm
Maximum simultaneous feed rate X/Y 170 m/min
Positioning accuracy ±0.01 mm
Maximum material mass 920 kg
Rated output 4000 W
Processing surface height 940 mm
Machine length 10136 mm
Machine width 2840 mm
Machine height 2432 mm
Machine weight 9300 kg
