Amada AC2510 200 kN

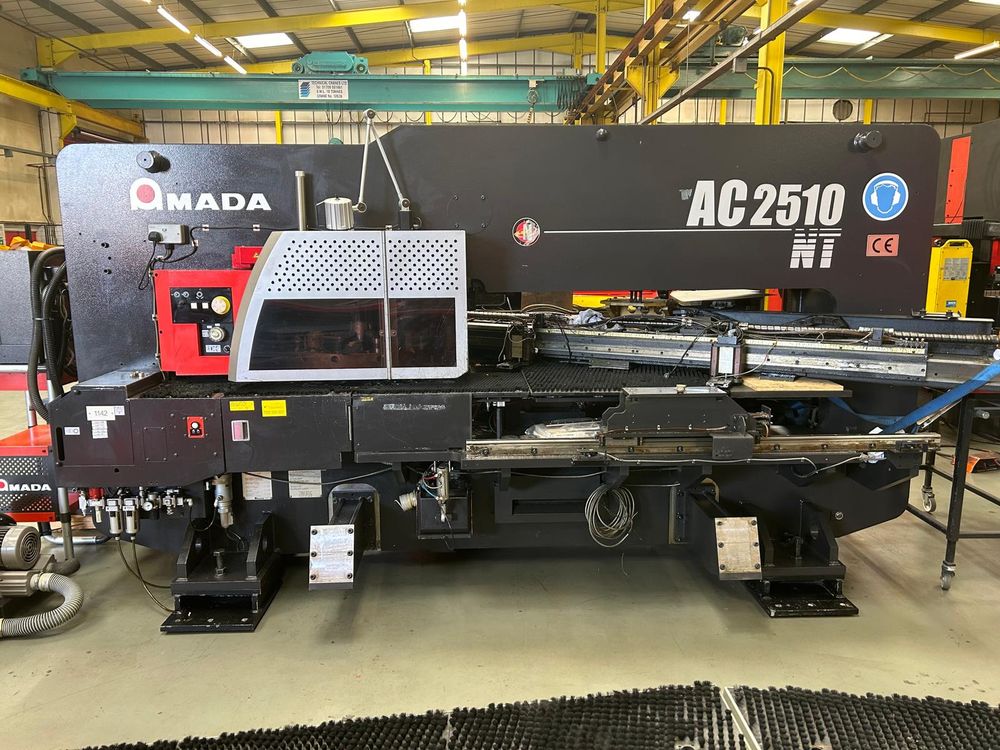

Amada AC2510 Electric Punch Machine, 51 Station, 4 auto index
Year: 2007

Frame Construction Bridge Type
Numerical Control AMNC-F
Punching Force 200 kN
Drive System Single AC Servo Drive
Turret (No. of Stations)

51 Stations:
24 x A (Max. Dia. 12.7mm)
18 x B (Max. Dia. 31.7mm)
3 x C (Max. Dia. 50.8mm)
2 x D (Max. Dia. 88.9mm)
3 x G (Max. Dia. 31.7mm)
1 x H (Max. Dia. 50mm)

Auto Indexing:
3 x B (Max Dia 31.7mm)
1 x C (Max. Dia. 50.8mm)

Axis Traverse Distance 1270 x 2500 mm
Workable Maximum Sheet Size (with auto repositioning) 1270 x 5000 mm
Table Loading Weight 150 kg
Maximum Punching Hit Rate 480 per min
Hit Rate With 25mm Pitch
350 per min
Positioning Speed 80 – 60 mm
Maximum Sheet Thickness 3.2 mm
Control AMNC-F Windows Based Network Control
15″ Colour LCD Touch Screen

Machine Mass 13 000 KG
Machine Length 4165 mm
Machine Width 5120 mm
Machine Height 2082 mm
