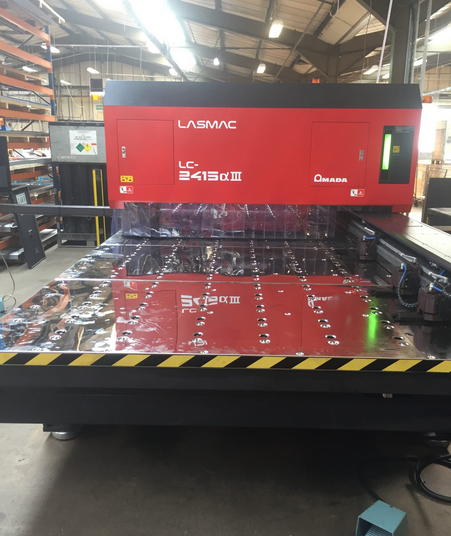

Amada LC2415 Alpha 111 – 4kw Laser Machine Fanuc FS – 160i – L

Traverse Method: X Axis Sheet Traverse
Traverse Method: Y Axis Head Traverse
Axis Traverse Distance: 2520 x 1550 x 300 mm (Z Axis)
Max. Sheet Size (including 1 reposition): 5040 x 1550 mm
Max. Guaranteed Material Thickness: 10 mm Mild Steel
Max. Guaranteed Material Thickness: 8 mm Stainless (Oxygen Cut)
Max. Guaranteed Material Thickness: 7 mm Stainless (Clean Cut)
Max. Guaranteed Material Thickness: 6 mm Aluminium (A5052)
Max. Material Weight: 330 Kg
Max. Feed Speed: 80 m/min (X & Y Axis)
Max. Feed Speed: 60 m/min (Z Axis)
Laser Cutting Speed: 0 ~ 20 m/min
Positioning Repeatability: +/- 0.005 mm
Axis Drive (X, Y & Z): AC Servo Motor
Workchute: 1550 x 550 mm
Assist Gas: 3 Ports, automatic control
Electric Power Required (Includes Oscillator): 65 KVA 400V +/- 10% 50Hz
Air Required Machine Only: 6.0 Kgf/cm² 850 l/min
Machine Length: 5700 mm
Machine Height: 2275 mm
Machine Weight: 6.4 tonnes
Standard Equipment: Anti Scratch Roller System
Standard Equipment: Z-Axis Sensor (HS-98)
Standard Equipment: NC Autofocus
Standard Equipment: CE Conformity Partition
Oscillator Model: Fanuc AF 4000E
Oscillator Type: RF Discharge Excited Fast Axial Flow CO2 laser
Oscillator Rated Output: 4000 W
Laser Gas Mixture: CO2:He2:N2=5:40:55 +/-2% each
Laser Gas Pressure: 1.75 +/-0.25 Kgf/cm² (at regulator)
Laser Gas Consumption: 20 l/hour
NC Model: Fanuc FS – 160i – L
NC Display: 9″ Colour LCD
NC Data Interface: RS232C
Chiller Model: Tricool 21 series S2/120 or equivalent
Chiller Type: Air Cooled, Floor Mounted
Chiller Water Specification: Demineralized
Chiller Power Requirement: 400V 3 Phase neutral earth
Chiller Power Consumption: 29.1 KVA
Chiller Dimensions: 1750 x 800 x 1750 mm
Chiller Weight: 700 Kg
Dust Collection Model: Torit DFPRo 4 or equivalent
Dust Collection Capacity: 1800 m³/hr @ 20°C
Dust Collection Power Supply: 3 Phase AC 400V 50Hz
Dust Collection Weight: 730 Kg
Dust Collection Dimensions: 1390 x 1500 x 2295 mm
Dust Collection Fan Motor: 3 Kw
