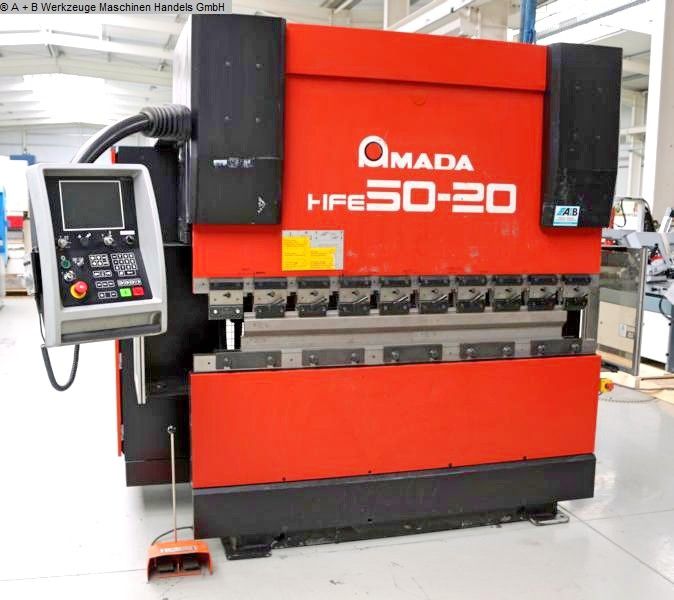

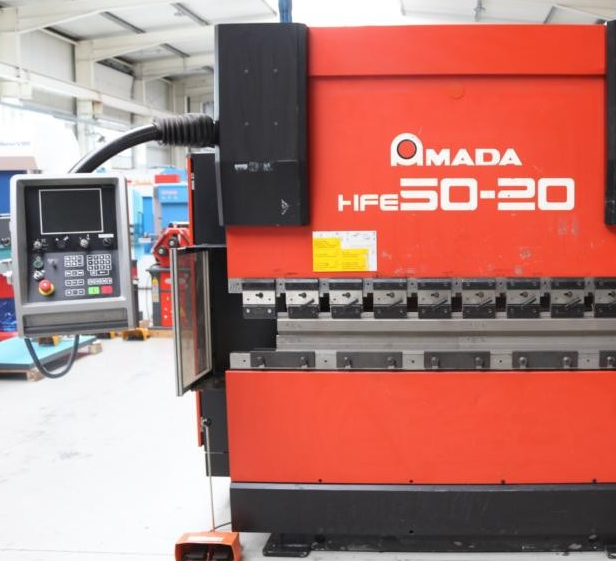

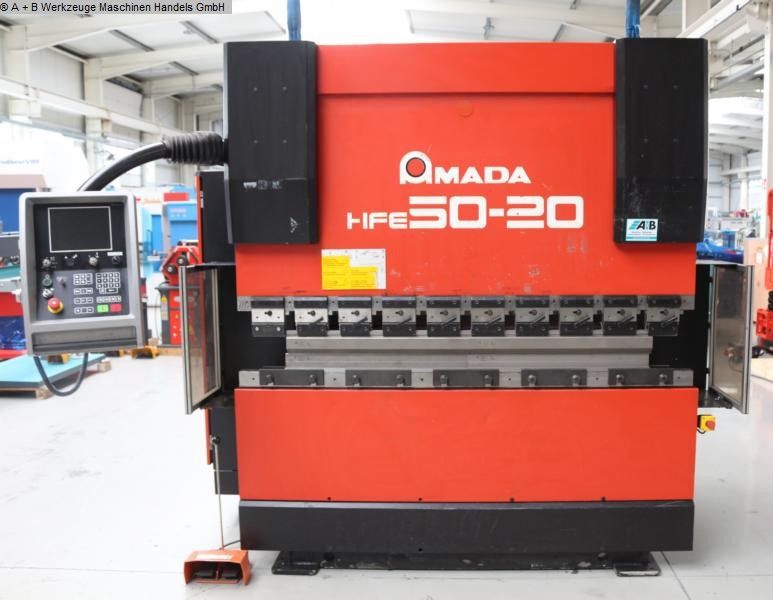

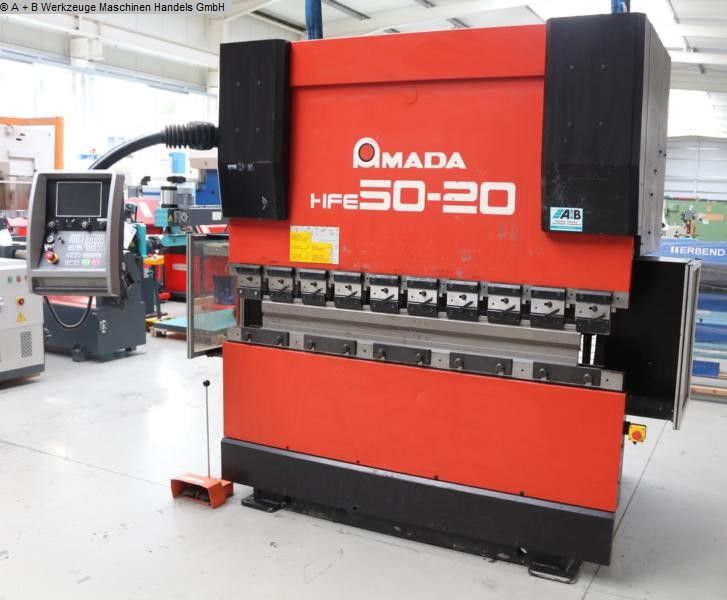

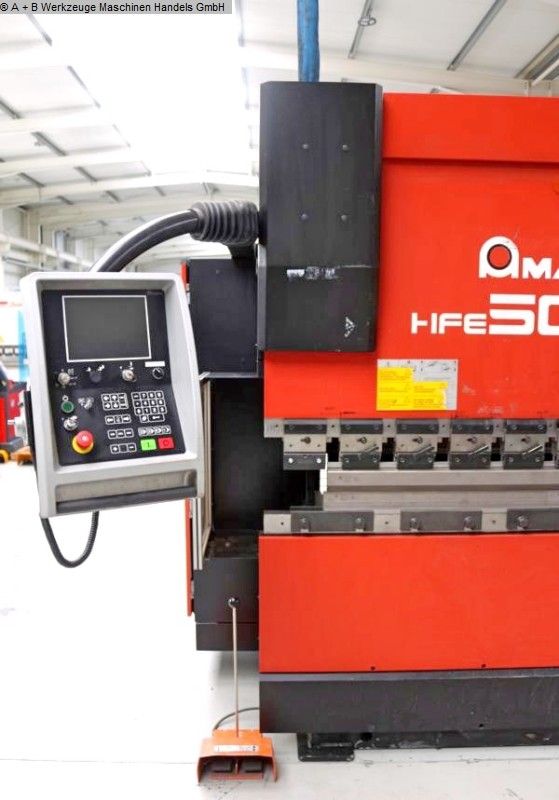

Amada HFE 50-20 50 t

Press force: 50 t
Bending length: 2090 mm
Distance between uprights: 1665 mm
Throat depth: 400 mm
Table width: 60 mm
Adjustment speed: 100 mm/s
Working speed: 10 mm/s
Return speed: 92 mm/s
Stroke: 200 mm
Table height: 910 mm
Daylight: 470 mm

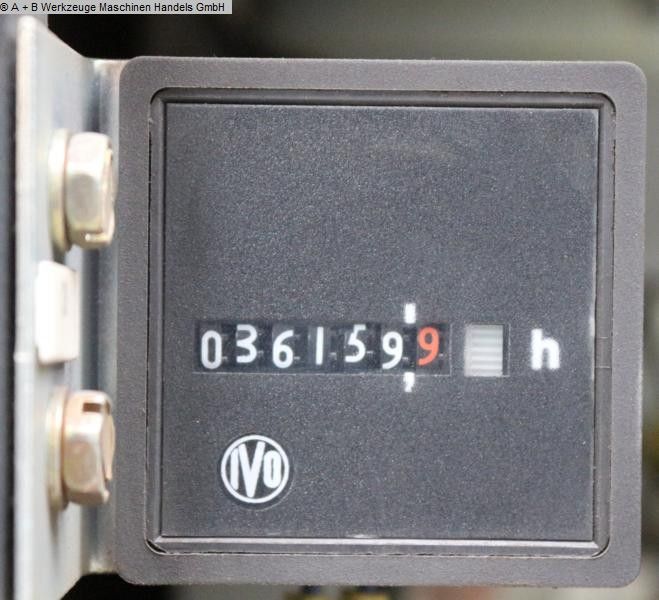

Operating hours: 36,160 h
Power requirement: 6 kW
Machine weight: 4850 kg
Machine dimensions: 3458x2450x2450 mm

Equipment
CNC electro-hydraulic press brake

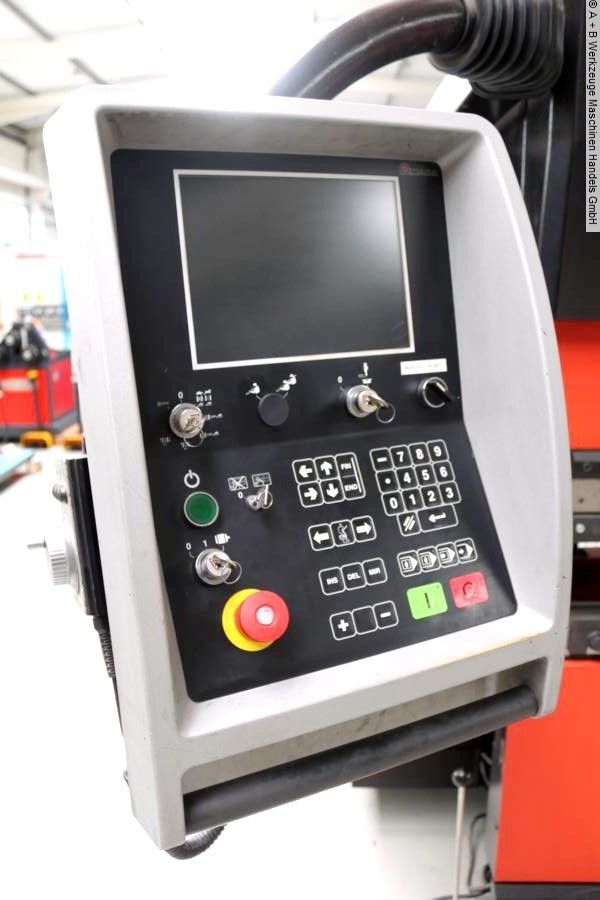

CNC control type OPERATEUR 2 with 8 axes (X1+X2, Y1+Y2, R1+R2, Z1+Z2)
CNC-controlled backgauge adjustment (X-axis)
CNC-controlled vertical adjustment of stop fingers (R1+R2)
CNC-controlled left-right adjustment of stop fingers (Z1+Z2)
Hand control unit for manual axis movement
Pivoting control (front left)

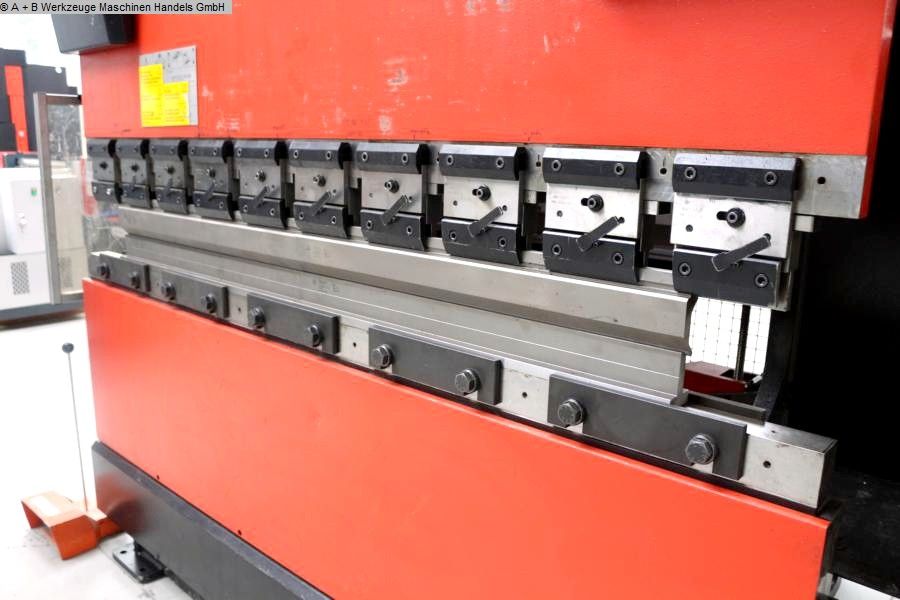

AMADA/PROMECAM quick clamping system for upper tool
1 split set of offset upper tools (UKB 10.512)
AMADA/PROMECAM bottom tool holder
1 split set of 1-V dies (UKB 20.810)
Side guards (hinged doors)

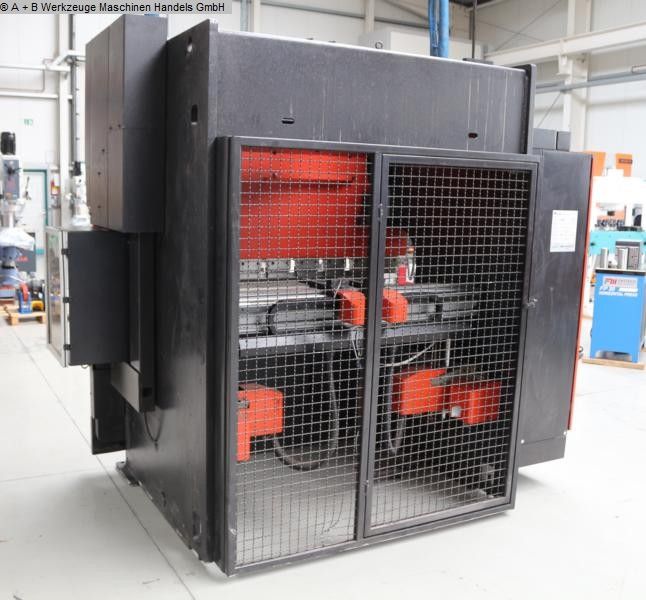

Rear guards (hinged door)
CE marking
Freely movable double foot switch
Operating instructions (PDF)
