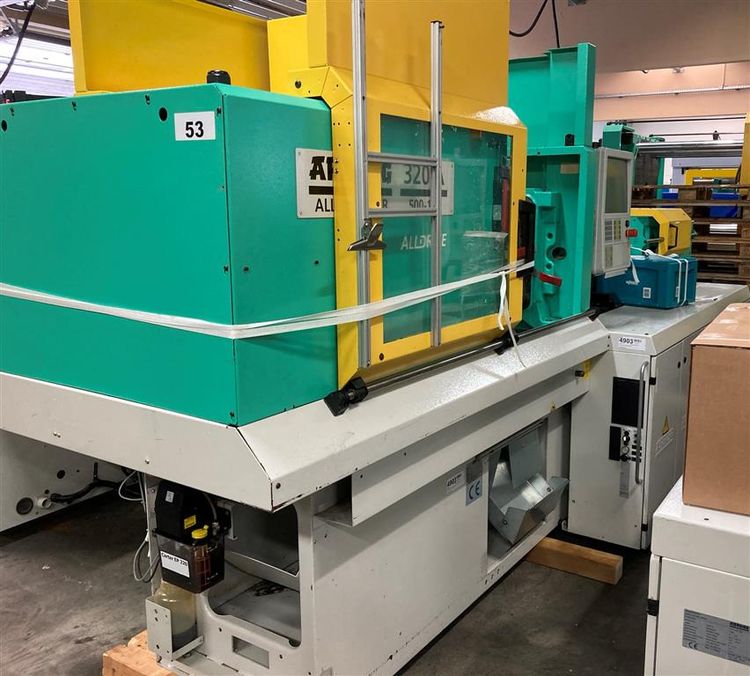

Arburg 320 A 500-170 50 T

Ref : 2517600-6-GO
Condition : Used
Manufacturer : Arburg
Model : 320 A 500-170
Capacity : 50 T
Year(s) : 2006
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Type of control other (Selogica)
Screw size 20 mm
injection shot weight in Polysterol 32 g/PS
closing pressure 500 kN
daylight 320 x 320 mm
opening stroke 450 mm
mould height - Max./min. 200 mm
control Selogica
daylight between platens - max. 650 mm
total power requirement 43 kW
weight of the machine ca. 3,6 t
dimensions of the machine ca. 4.00 x 1,20 x 2,0 m

A version 320
wear-resistant plastification unit
SELOGICA user interface with touchscreen operation
Small accumulator hydraulics with:
Drive motor 3 kW
Pump with 5.5 l/min loading volume flow
electrical connection for pneumatic
Needle shut-off nozzle in the mould
connection mould blow unit 1
connection / electrical preparation for the
retrofitting of mould blow unit 1
Connection sorter unit
Electromechanical ejector, position-controlled
protection open above increased to safety measurements
Interface for robot systems according to EUROMAP 67
50-pin connector
4 freely programmable inputs/outputs, tap on
the printed circuit board via a detachable plug connection
Interface for temperature control units for mould tempering
Printer interface serial V24 for setting parameters
Printer interface, serial USB, for setting parameters
Compact Flash and USB interface for data storage
Operating authorization with chip card
1 additional heating control circuit for nozzle or
Adapter with socket
Device interface
freely configurable page for "approach parameters"
Interface for a coloring/dosing device
Cooling water distribution with 2 free circuits,
Cooling water distribution with 4 free circuits,
manually adjustable
1 machine-related cooling circuits programmable
Arburg equipment packages No.: 1,2,3, 5,6,7
Control extension for additional signals

This machine will be cleaned, partly-overhauled and function tested
in our company and can be tested in our company after finiishiing.
