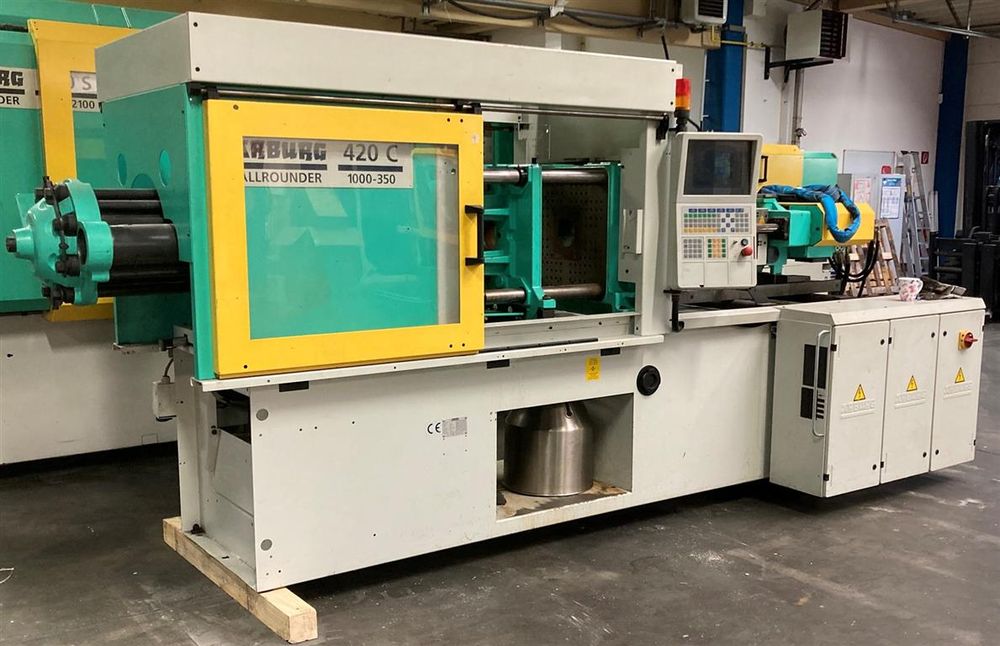

Arburg 420 C 1000-350 100 T

Ref : 2497911-6-GO
Condition : Used
Manufacturer : Arburg
Model : 420 C 1000-350
Capacity : 100 T
Year(s) : 2002
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Type of control conventional ( Selogica)

Details
screw size 45 mm
injection shot weight in Polysterol 210 g/PS
closing pressure 1000 kN
daylight 420 x 420 mm
opening stroke 500 mm (max.) mm
mould height - Max./min. 350 mm
control Selogica
daylight between platens - max. 850 mm mm
weight of the machine ca. 3,5 t

Features
C verion III
highly wear resistant plastification unit
Selogica control
technology step 1 - with 1 regulating pump
increasing of the min. mould height to 350 mm - opening
stroke remain the same
core pull
injecton pressure increased by 10 % (to
max. 2.500 bar)
interface for robot according to EUROMAP 12
interface for printer
cooling water distribuition with 4 free cooling circuits
manual adjustable
1 machine-related cooling circuits manual adjustable
Arburg equipment packages No.: 1,2,3,5,6,7
This machine will be overhauled according to our checklist in our company and can be tested after finishing in our company. This machine can be inspected at every time.
