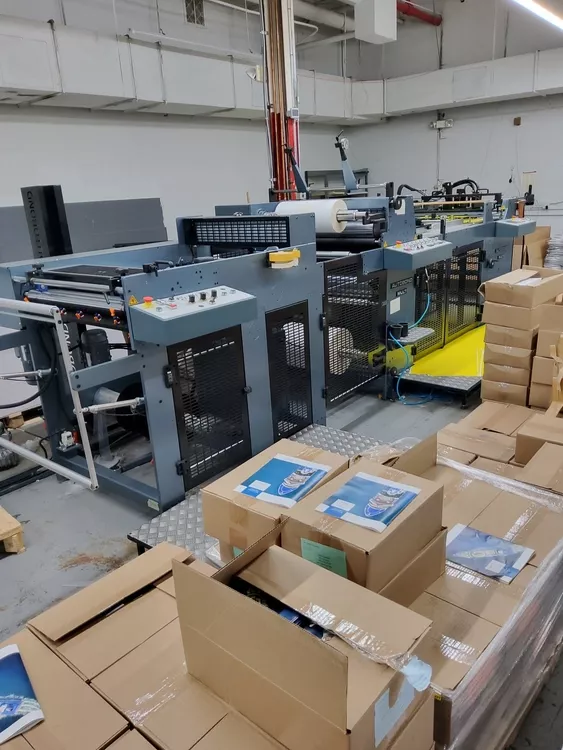

Autobond Multi 76 TPE-H-CC-S Laminator

(Thermal, Perfector, Edge-seal, Heidelberg, Cross Cutter-Stacker)
Laminator:
Maximum sheet size 29.5” wide x 41.73” long.
Minimum Sheet size 11.5” x 12”.
Maximum mechanical speed is 200 ft/min or 3600 28” x 40” SPH.
Paper weight 80 lb text to 24 point board.

The laminator is of heavy-duty construction, using 7/8” inch thick steel side plates with 3.25” x 3.25” steel support beams.
The rolls of film are mounted on two quick-change airshafts.
A pneumatic clutch controls film tension.
There are two sets of laminating rollers; the first, a highly polished 9.25” diameter chrome roller, and a 6” diameter rubber roller for application of thin films (
