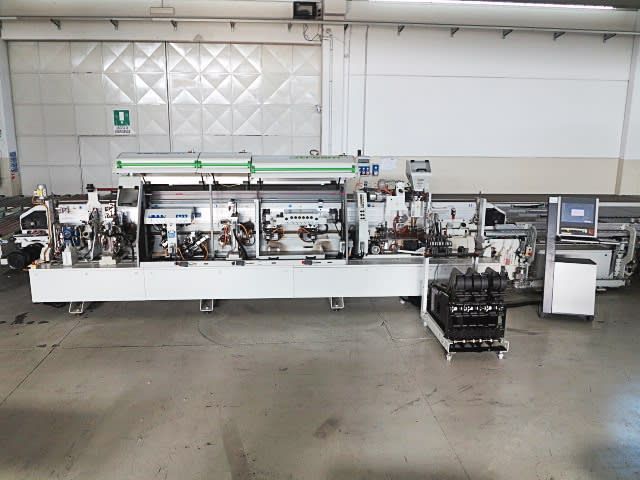

Biesse STREAM B1 7.0

Single Edgebanders

Short Description:
Premilling Unit
Corner Rounding Unit
Max feed speed 25 m/min
Maximum panel thickness 60 mm
Operating Units 8 nr

Long Description :
Subfamily Single Edgebanders
Min. panel height 10 mm
Max. panel height 60 mm
Min. panel length 150 mm
Min. panel width 100 mm
Max. panel width 3200 mm
Min. edge thickness 0.3 mm
Max. edge thickness 3 mm
Max. forward feed speed 25 m/min
Top pressure
Pressure with rubber belt
Panel support guides with positioning by NC
Infeed panel alignment system
No. Panel Sizing / Milling units 1

1
Unit pre-milling unit
Constructor model RT30
automatic timed intervention
motor power 3.5 KW
r.p.m. 9000 RPM
Lamps to preheat the side of the panel
Edge coil magazine
no. positions 6

Gluing system
glue pot for EVA hot melt glue

premelter for EVA hot melt glue
premelter for EVA hot melt glue HM20
Roller set to press the edge
no. pressure roller 4
with positioning by NC
No. Edge Processing Units 6

1
Processing Unit end trimming
Constructor model IT90-S
no. motors 2
Max. machining speed 28 m/min
motor power 0.65 KW
r.p.m. 12000 RPM

2
Processing Unit fine trimming to trim and round
Constructor model RF10
no. motors 2
motor power 1 KW
r.p.m. 12000 RPM

3
Processing Unit Corner rounding
Constructor model AR30
no. motors 2
automatic tool change
Max. machining speed 18 m/min
motor power 0.65 KW
r.p.m. 12000 RPM

4
Processing Unit edge scraping
Constructor model RB40
with positioning by NC

5
Processing Unit glue scraping
Constructor model RC20

6
Processing Unit buffing
Constructor model SZ30
no. motors 2
motor power 0.37 KW
r.p.m. 1400 RPM

Spray unit
Machine programming software SINTRA
Safety standard CE mark
Total installed power 25 KW
