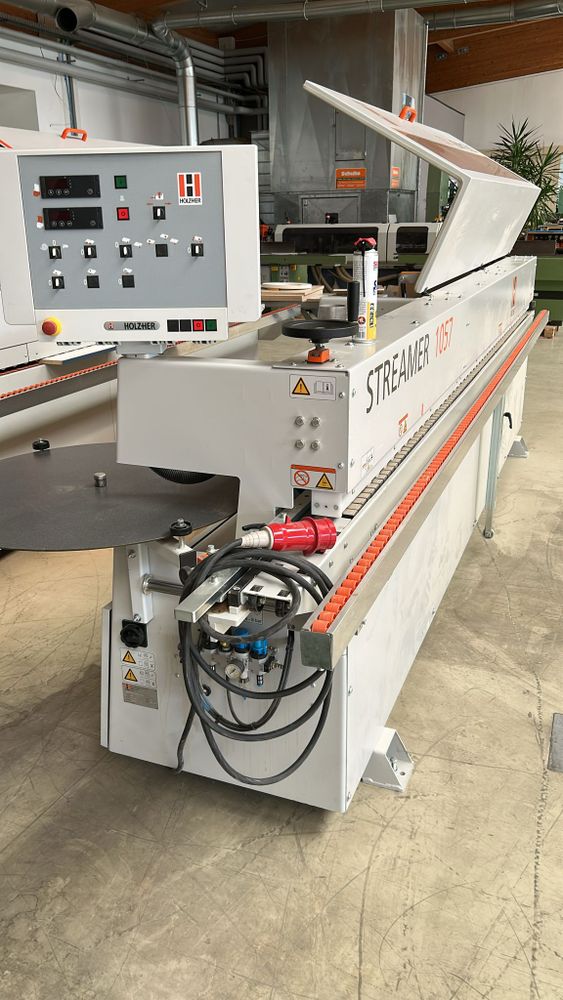

Holzher Streamer 1057

Used machine
Condition: very well maintained

Equipment and technical specifications:
- Base machine 200-400 V / 50 Hz, with manual pressure bridge adjustment
- Extendable workpiece support, 600 mm spacing
- FG201 jointing milling unit with 2 milling heads for jointing panel edges
- Diamond cutter D = 70 x 64 x 30 mm, 2 teeth, counterclockwise rotation for jointing unit
- Diamond cutter D = 70 x 64 x 30 mm, 2 teeth, clockwise rotation for jointing unit
- 1903 edge feeder, automatic transport of rolls and strips
- Glu Jet GJ301 adhesive application system (2.3 kW, 50 Hz)
- Automatic Glue height adjustment (tactile nozzle)
- Pneumatic pressure unit 1912-3
- Pneumatic trimming unit 1918 (60 mm), pneumatic chamfer trimming 0/10 degrees, pneumatic adjustment
- FR201 trimming unit (2x0.6 kW, 300 Hz, 18,000 rpm)
- Multifunctional trimming unit for flush trimming, radius trimming, and radius run-out
- Diamond cutter D=57x17 mm, Z2, R=2.0 mm, counterclockwise rotation
- Diamond cutter D=57x17 mm, Z2, R=2.0 mm, clockwise rotation
- Corner rounding unit 1832 (1x0.35 kW, 200 Hz, 12,000 rpm)
- Diamond cutter D=53x10x16 mm, Z3, R=2.0 mm, with CM technology
- 1929 scraper unit with 2 Scraper holders, including reversible inserts
- Chip collection box for scraper unit 1929
- HW reversible inserts for scraper holders
- Surface scraper 1964 for removing adhesive residue for a clean adhesive joint
