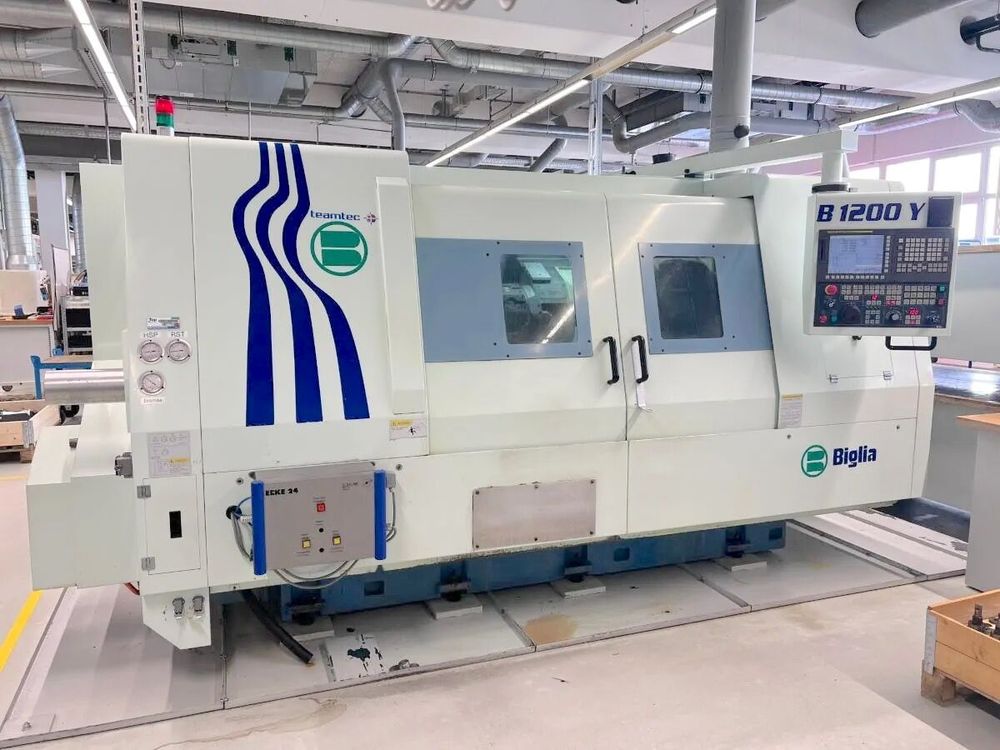

Biglia Fanuc 18i-TB 2800 rpm B1200YL 6 Axis

Axis stroke X: 255 mm
Axis stroke Z: 1315 mm
Axis stroke Y: 110 mm (+60 / -50 mm)
Axis stroke B: 1200 mm
Rapid feed X: 20 m/min
Rapid feed Z: 24 m/min
Rapid feed Y: 7.5 m/min
C axis speed: 100 rpm
C axis accuracy: 0.001°
Control: Fanuc 18i-TB
Manual Guide
Tool load monitoring (SBS)
Anti-collision system
Bar capacity: 92 mm
Turning diameter: 410 mm
Turning length: 1315 mm
Swing over bed: 700 mm
Main spindle speed: 2800 rpm
Main spindle power: 30 kW
Main spindle torque: 776 Nm
Main spindle nose: ASA8
Main spindle bore: 111 mm
Driven tools speed: 4000 rpm
Driven tools power: 5.5 kW
Driven tools torque: 70 Nm
Chuck diameter: 315 mm
Turret positions: 12
Driven stations: 12
Tailstock quill diameter: 115 mm
Tailstock quill stroke: 150 mm
Tailstock taper: CM5
Machine weight: 7250 kg
Machine dimensions: 5100 x 2000 x 2100 mm
Chip conveyor
Autocentering chuck 315 mm
Driven toolholders available
Fixed toolholders available
Hydraulic steady rest preparation
