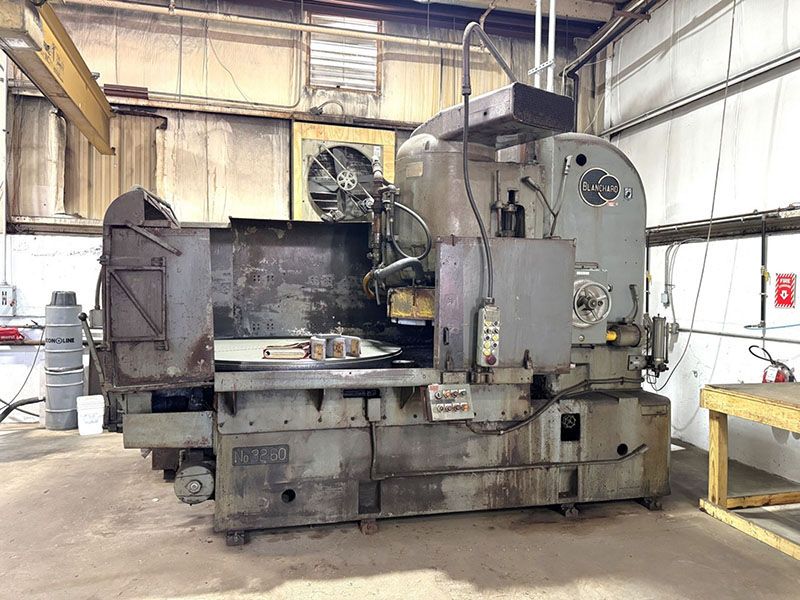

Blanchard 32-60

Chuck diameter: 66"
Magnetic chuck area: 60"
Swing inside guards: 72"
Vertical range under new wheel: 18"
Maximum load on chuck: 6,000 lbs
Grinding wheel diameter: 32"
Grinding wheel speed: 514 RPM
Chuck speed range: 6–33 RPM
Number of chuck speeds: 6
Infinitely variable power downfeed: 0.004"–0.080"
Maximum downfeed before stop: 0.198"
Extended swing: 72"
Chuck extension: 6"
Spindle motor power: 75 HP
Spindle motor type: General Electric
Electro-magnetic chuck
Electro-matic variable hold neutrofier control
Segmented grinding wheel
Wheel brand: Cortland
Wheel dresser
Rapid raise and lower wheelhead with power interlock
External coolant system
Gusher coolant pump
Dry base
Floor-mounted electrical cabinet
Electrical service: 62.5 KVA
Overall length: 15'6"
Overall width: 90"
Overall height max: 134"
Overall height min: 110"
Approximate weight: 35,000 lbs
