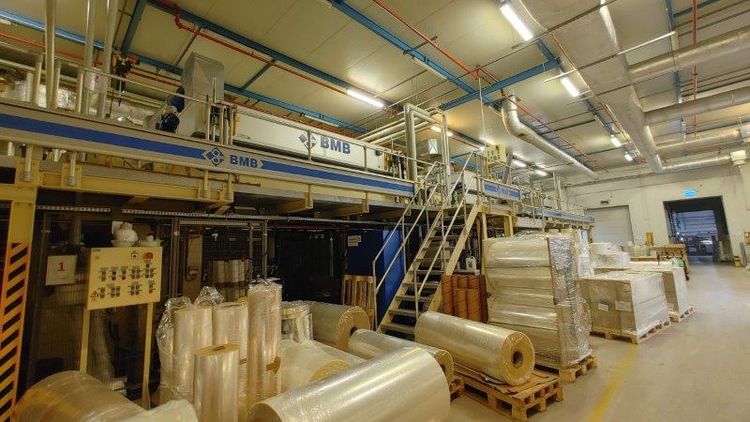

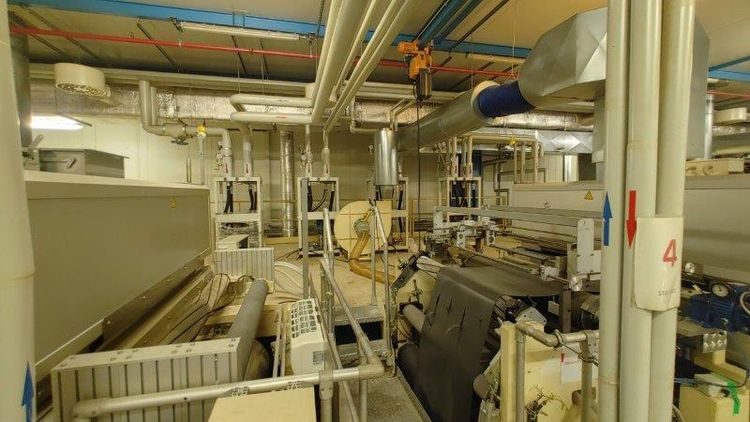

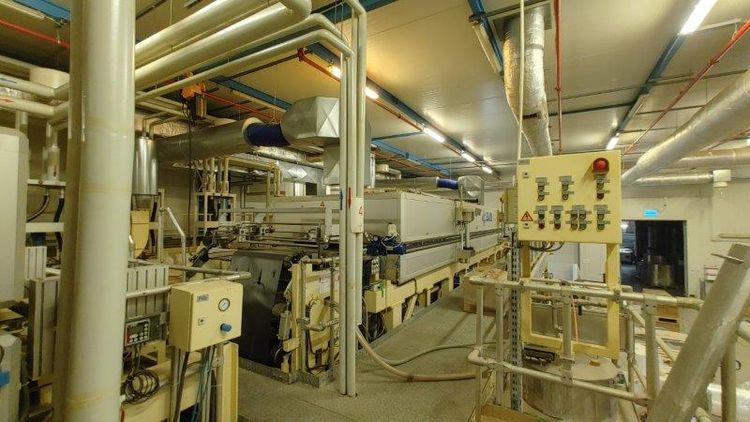

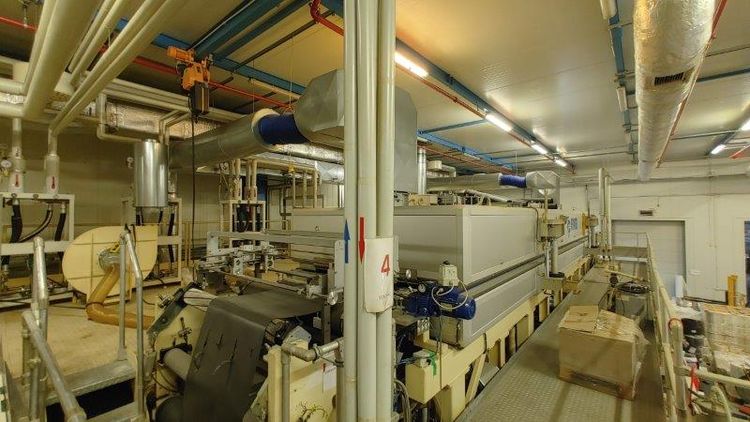

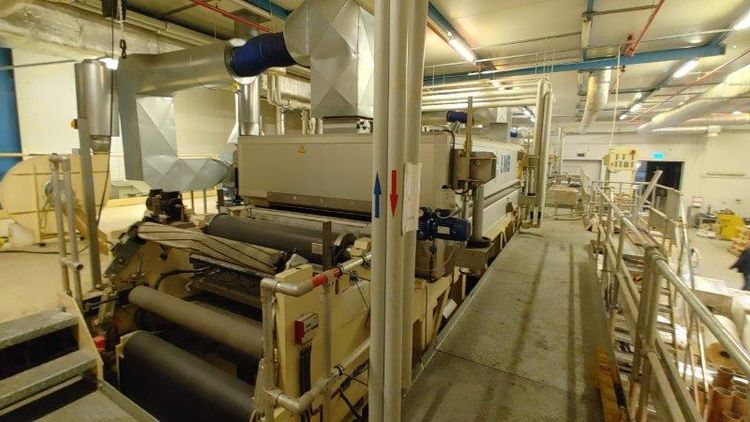

BMB, Kroenert PvdC/Acrylic coating line
EUROPE (Western and Northern)
Year 2012, only 7000 production hours!
Type of coating Primer + PVdC/acrylic adhesive (double sided)
Max. web width 1300 mm
Min-Max coating width 700 - 1300 mm
Max. mechanical speed 300 m/min
Materials:
BOPP 10 – 80 µ
PET 6 – 60 µ
Paper 20 – 150 g/m2
PVC hard (blister) 20 – 300 µ (must be tested)
Alu foil soft 7 – 80 µ

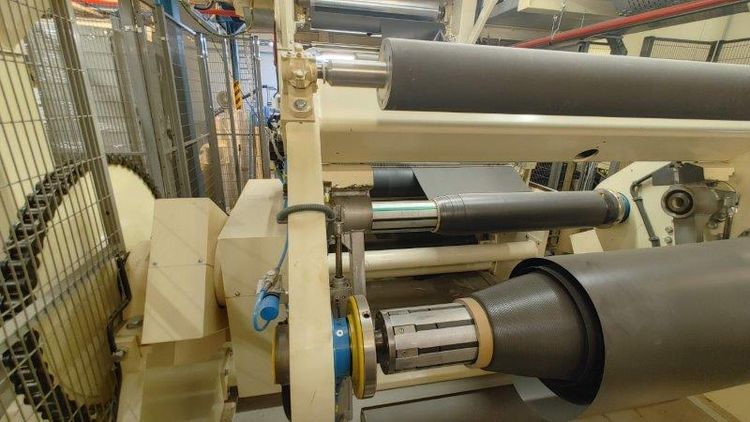

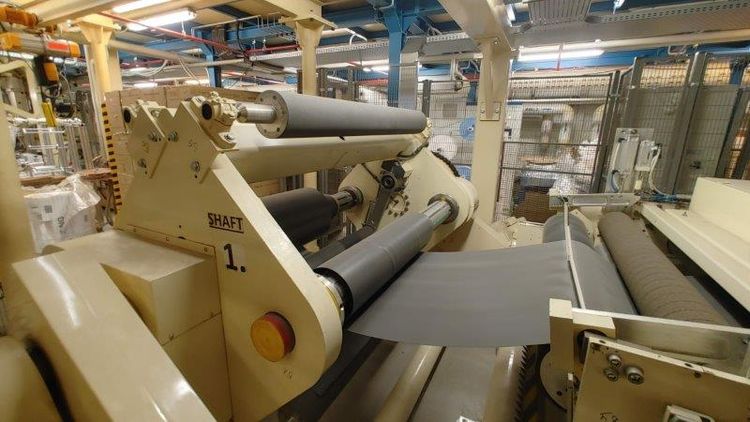

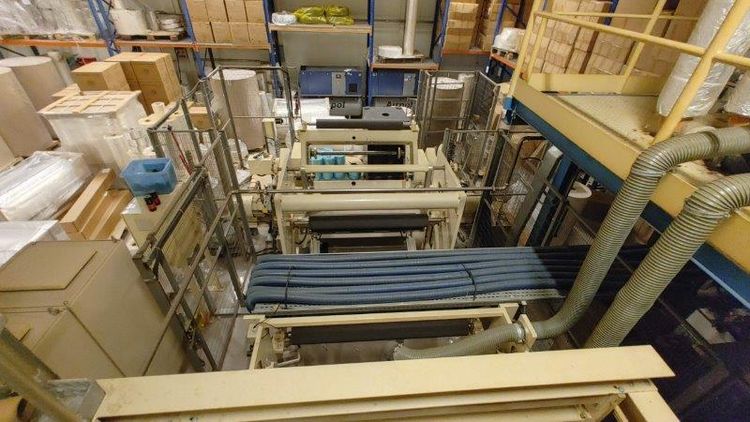

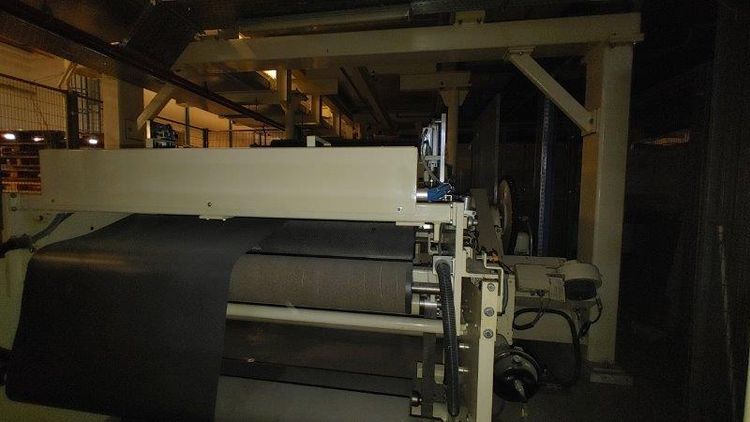

Unwind type Automatic turret
Unwind shafted/shaftless Shafted
Max. unwind reel diameter 1000 mm
Rewind type Automatic turret
Rewind shafted/shaftless Shafted
Max. rewind reel diameter 1000 mm

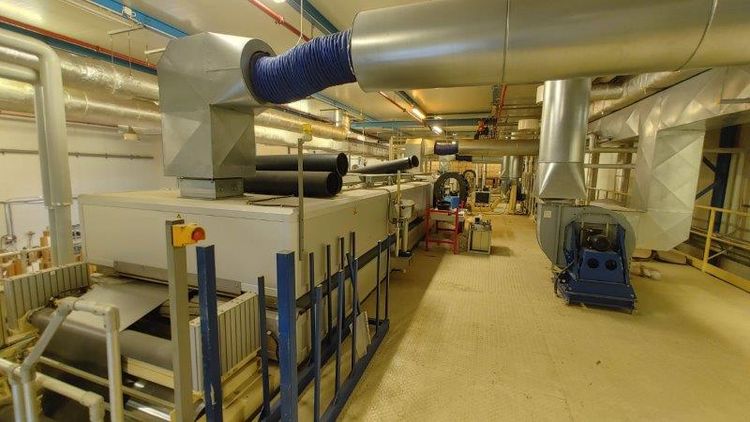

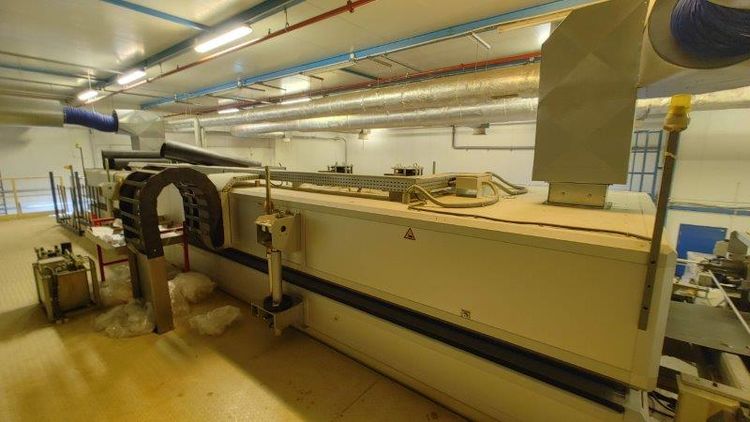

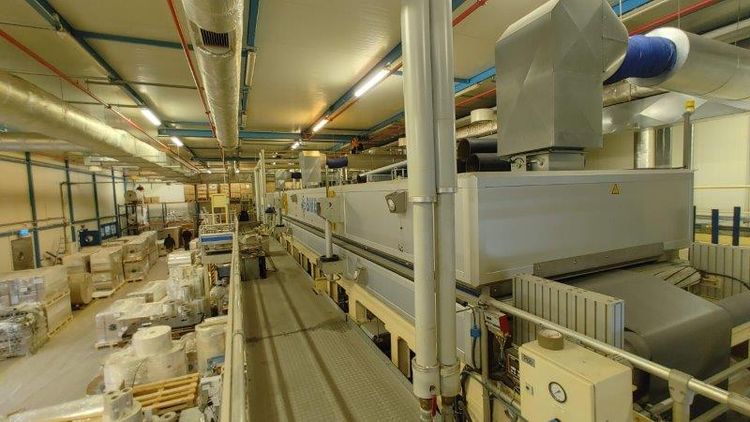

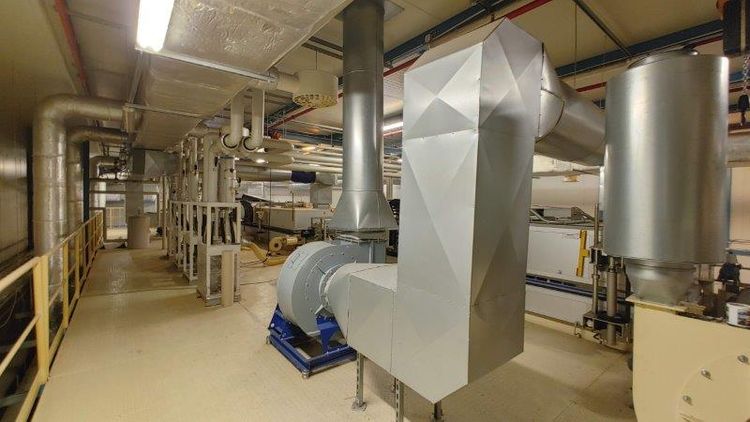

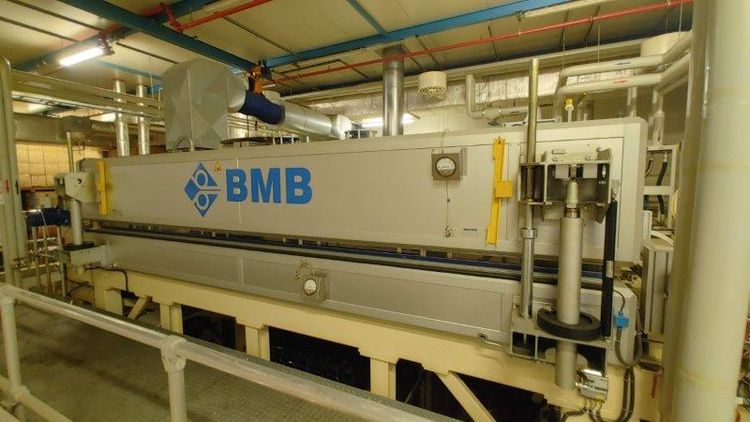

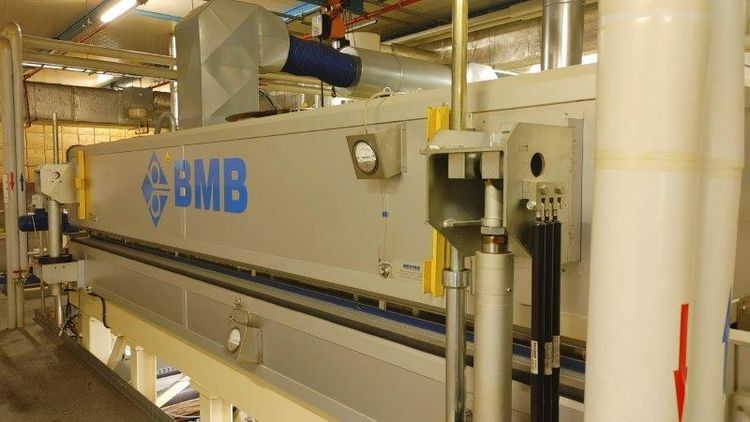

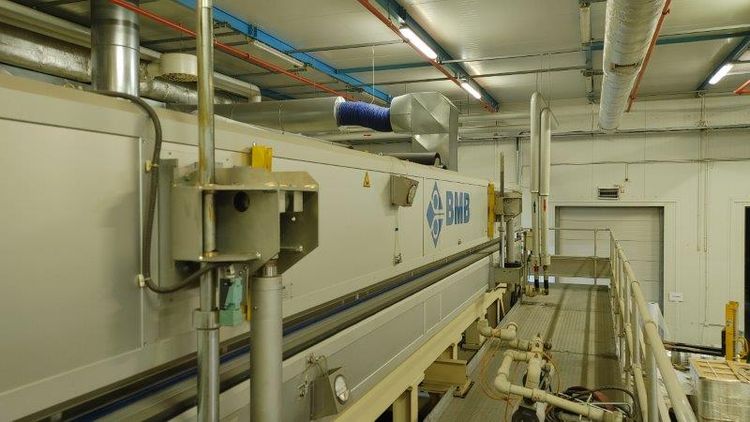

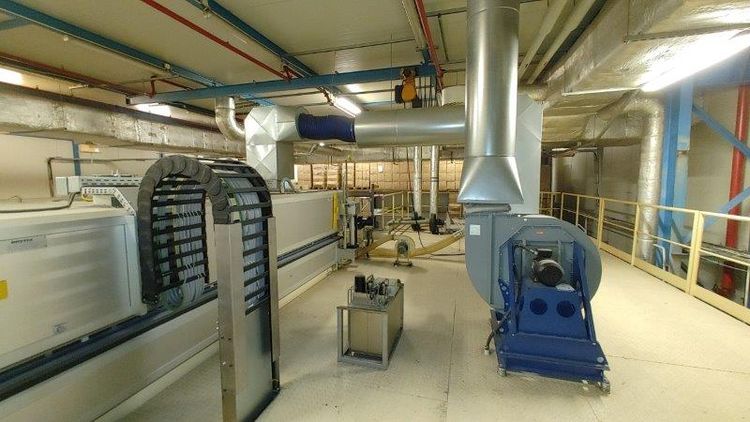

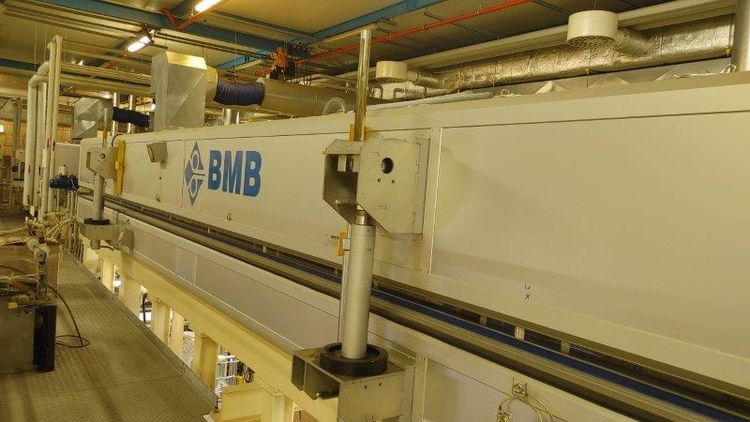

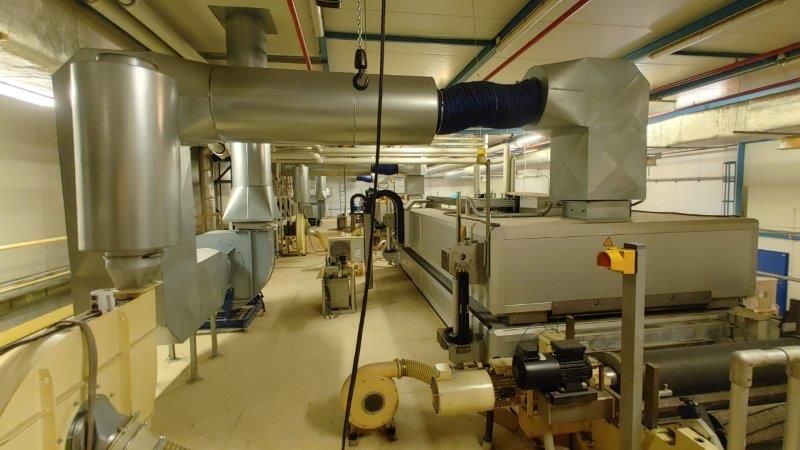

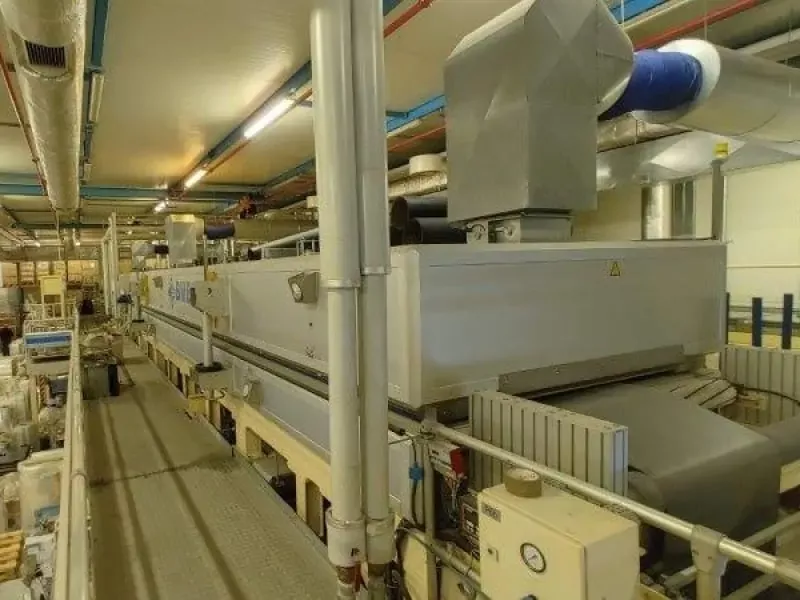

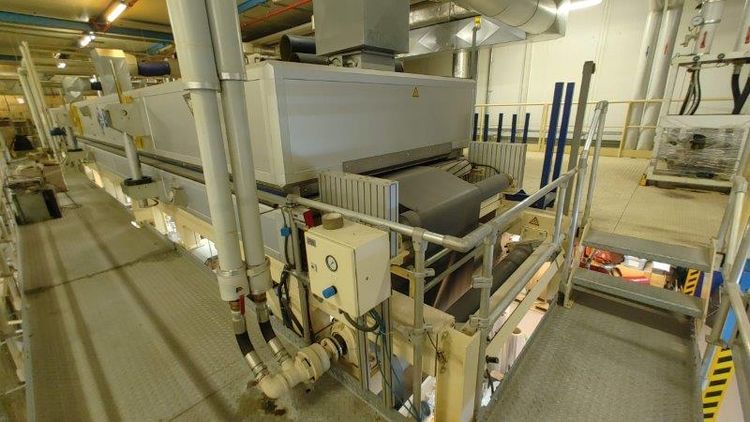

Drying type Electric
1 x 5 meter dryer(for primer)
1 x 10 meter dryer (for PVdc/Acrylic coating)
Web guide(s) Yes, BST
Corona treater Yes, AFS
Other information :

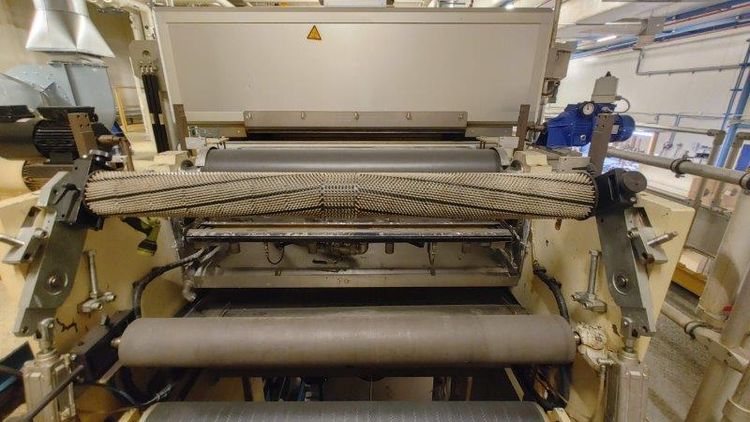

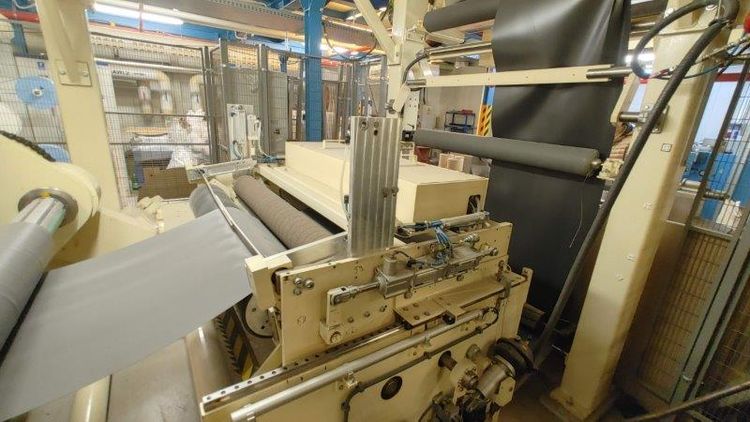

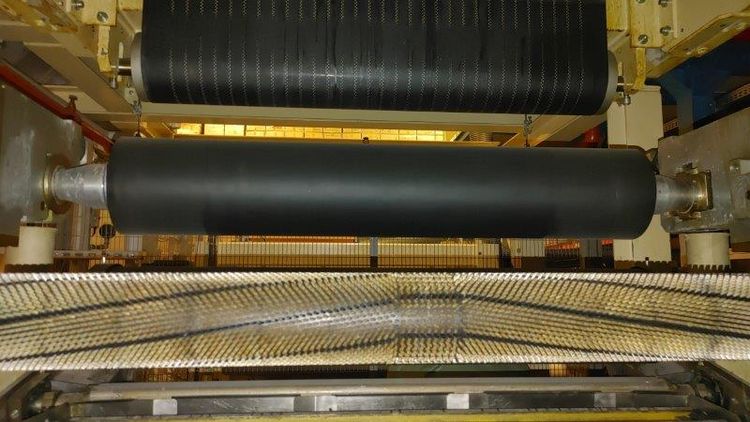

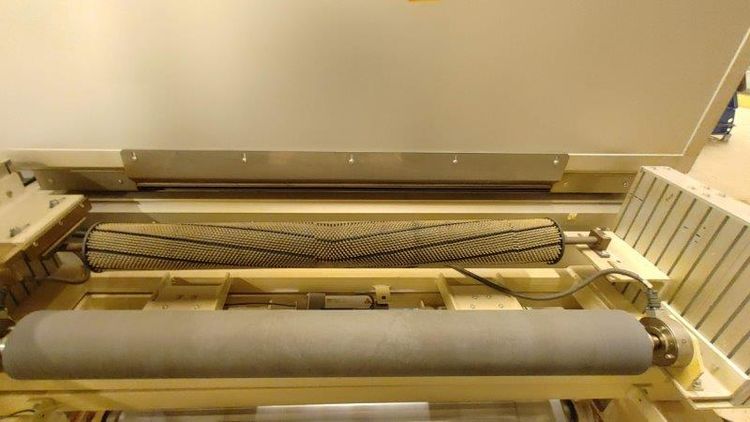

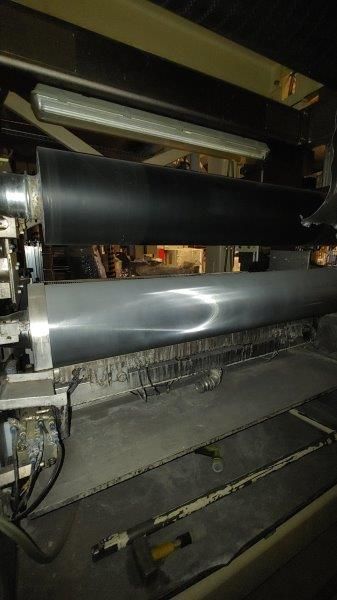

This machine has two coating stations which both can coat on both sides of the web
Station 1: For primer
Coat weight dry 0,5 – 1 g/m2
Solid content: Max 30%
Station 2: For PVdC/Acryclic adhesive
Both coating materials have their own Reco 800A trolley which can be changed in the machine.
PVdC
Coat weight dry 3 – 8 g/m2
Solid content 50 – 55 %
Acrylic adhesive
Coat weight dry 1 – 3 g/m2
Solid content 20 – 25 %
Available from Now
Machine can be seen in production Yes
