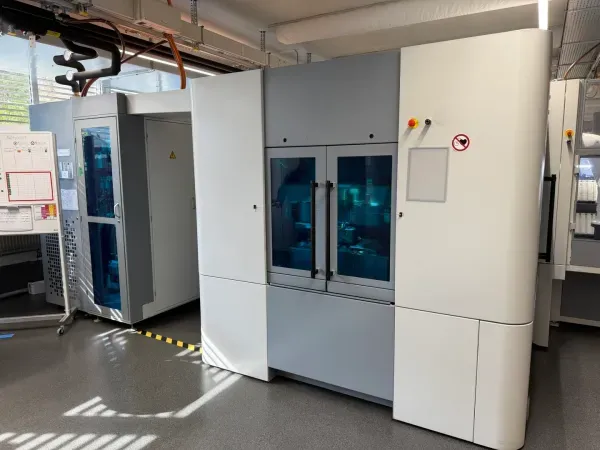

Bumotec S100MULTI 12

Machine concept: Machining center with 4 workstations (carousel configuration)
Control system: Rexroth IndraMotion MTX 12VRS
Number of axes: 12
Voltage: 3 x 400 V
Frequency: 50 Hz
Main power supply: 63 A
Automation cell power: 32 A
Total power: 40 kVA

Spindle / Tooling
Tool spindle power: 2 kW
Max spindle speed: 60,000 RPM
Tool holder: HSK-E25
Tool magazines: Up to 144 tools
Milling spindles: 2 (simultaneous operation)
Minimum chip-to-chip time: 500 ms

Axis / Travels
X-axis travel: 80 mm
Y-axis travel: 80 mm
Z-axis travel: 180 mm
Feed rate: 50 m/min
Axis resolution: 0.005 µm
Linear motors in all axes

Work Capacity
Max workpiece size: 80 x 80 x 80 mm
Suitable materials: Brass, Aluminum, Stainless Steel

Machine Dimensions
Width: 2,500 mm
Depth: 5,000 mm
Height: 2,370 mm
Weight: approx. 12,000 kg

Features / Equipment
High-precision multi-station machining center
4-station carousel machining concept
Integrated loading cell with Stäubli robot
2 milling spindles working simultaneously
Fully automated production system
High-speed spindle 60,000 RPM
Large tool capacity (up to 144 tools)
Designed for precision small-part machining

Condition
Operating hours: approx. 25,000 h
