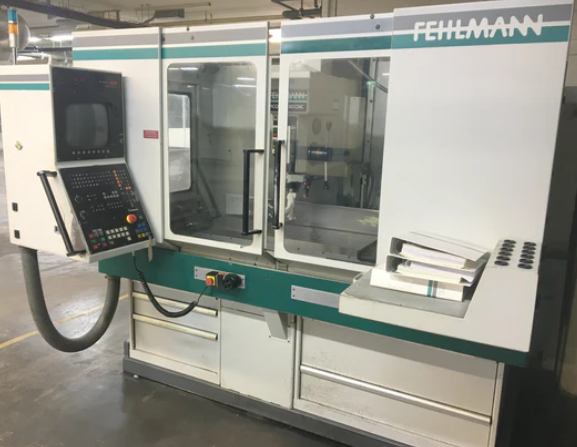

Fehlmann PICOMAX 80 CNC 2/3 5 Axis

X-Axis Travel: 700 mm
Y-Axis Travel: 315 mm
Z-Axis Travel: 180 mm
W-Axis Travel: 495 mm
Controlled Spindle Stroke: 170 mm
5 Axes
Control: HEIDENHAIN TNC 407/415
4th Axis Dividing Attachment
Tailstock
Electronic Handwheel
Spindle Speed: 50–9,200 rpm
Spindle Nose: SF32
Spindle Power: 16 kW
Drilling Capacity in Steel: 30 mm
Tapping Capacity: M24
Milling Capacity: 100 cm3/min
Feed X: 1–9,000 mm/min
Feed Y: 1–9,000 mm/min
Feed Z: 1–4,000 mm/min
Feed W: 1–4,500 mm/min
Rapid Traverse X: 9 m/min
Rapid Traverse Y: 9 m/min
Rapid Traverse Z: 4 m/min
Table Size: 1230 × 410 mm
Table Load Capacity: 250 kg
7 T-Slots
T-Slot Width: 12H8 mm
T-Slot Spacing: 50 mm
3-Jaw Chuck: Ø160 mm
Collet Device
Toolholder Set
Voltage: 3 × 380 V / 50 Hz
Machine Dimensions: 2500 × 2500 × 2450 mm
Machine Weight: 3200 kg
