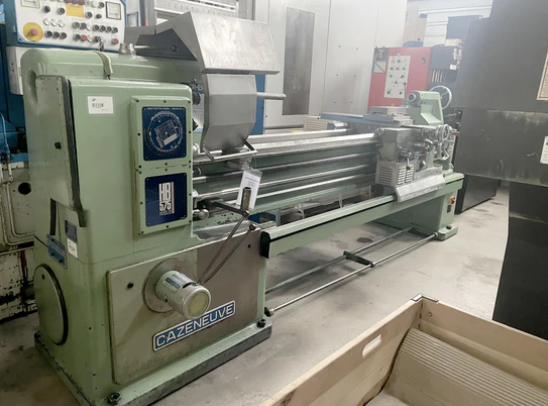

Cazeneuve Engine Lathe 1600 RPM HB 575

Ref : 2770510-3-MT

Condition : Used

Manufacturer : Cazeneuve

Type : Engine Lathe

Spindle Speed : 1600 RPM

Model : HB 575

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Centre Height: 250 mm
Distance Between Centres: 2000 mm
Swing Over Bed: 575 mm
Swing in Gap: 750 mm
Length of the Gap: 235 mm
Spindle Hole: 44 mm
Spindle Speeds Steps: 18
Spindle Speeds Range: 20–1600 RPM
Taper in Tailstock: 5 CM
Spindle Diameter: 70 mm
Voltage: 3x380 V 50 Hz
Spindle Motor: 5 kW
Machine Weight: 2200 kg
Overall Dimensions L x W x H: 3405 x 1175 x 1345 mm
Three-Jaw Bezel Folds Open
Drilling Tailstock
Lathe Chuck Protection
Spindle Refurbished 2017
