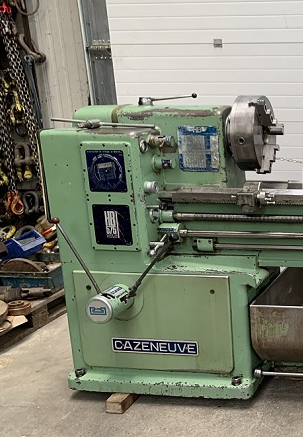

Cazeneuve Engine Lathe 2000 RPM HB 575 x 150
Ref :
2763036-3-MT
Condition :
Used
Manufacturer :
Cazeneuve
Type :
Engine Lathe
Spindle Speed :
2000 RPM
Model :
HB 575 x 150
Year(s) :
575
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Between centers 1500 mm
Max diameter on bed 575 mm
Max diameter over saddle 300 mm
Spindle bore diameter 51 mm
Spindle speed 25–2000 RPM
Turret square turret
Chuck 3-jaws chuck 350 mm
Spindle motor 8.8 kW
Threading metric + Whitworth
Tailstock CM5
Feeds automatic longitudinal
Feeds automatic transversal
Bed straight bed
Equipped with lubricant tank
Equipped with lubricant pump
Voltage 220 V three-phase
Dimensions 3000 x 1300 x 1800 mm
Weight approximately 2.2 T0 mm
