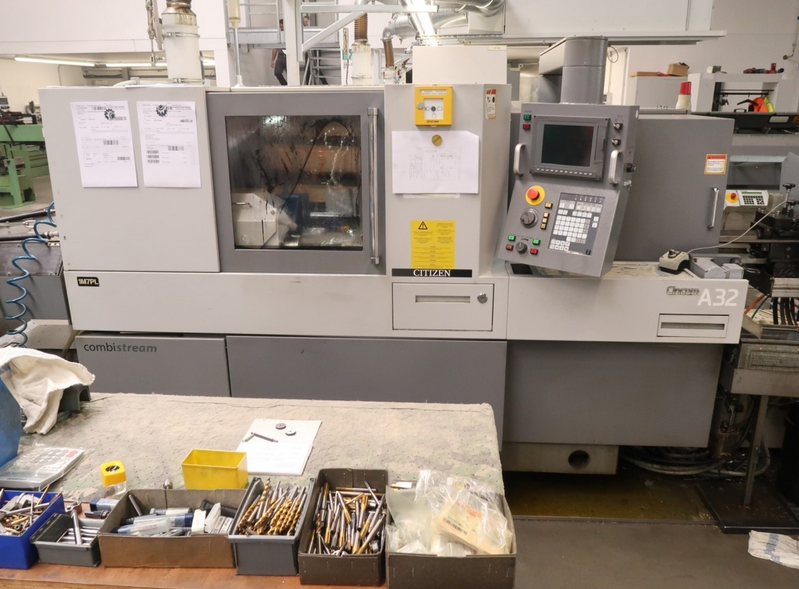

Citizen Mitsubishi M70 8000 rpm A32-VII (R) 7 (5 + 2x C-axis)

X1 rapid traverse: 32 m/min
Y1+Z1+X2+Z2 rapid traverse: 45 m/min

Bar material diameter: 32 mm
Spindle passage: 36 mm
Turning length: 320 mm
Back spindle diameter: 32 mm
Back spindle turning length: 600 mm
Spindle speed range: 200–8000 rpm
Back spindle speed range: 200–8000 rpm
Spindle motor power: 7.5 / 5.5 kW
Machine weight: 3.5 t + FMB
Machine dimensions: 2.5 x 1.2 x 1.82 m + FMB

Bar loader: FMB Turbo 3-36 3200
Chip conveyor: Combistream 130 bar
Parts conveyor
Parts container for long parts option
Fire extinguishing system: CO₂
Driven tools: 4 + 4
Taper: various
Collet chuck for spindle and pick-off spindle
Synchronous driven guide bushing
Drive unit for guide bushing
Workpiece ejection device
Cross-machining drive unit with 4 spindles
Door lock
Pick-off spindle
Parts receiving basket with conveyor belt
Pneumatic air sealing unit
Interior work light
3-color warning lights
Parting tool breakage detection

Combistream high-pressure coolant system (8 outlets, 130 bar)
4-way driven tool for back machining
Long parts option 600 mm with parts container, guide tube, and spindle nut
Loading magazine with material guides (7, 12, 20, 36), adapters, telescopic tubes, and inserts
CO₂ fire extinguishing system with FB 703 drilling control and flame/thermal detector
Manual release

CINCOM SYSTEM M70PLC CNC features
Multi-axis simultaneous machining
Cutting radius compensation
Multi-cycle repetition
Deep hole drilling
Constant cutting speed
Chamfer and radius insertion
Synchronization between main and pick-up spindles
Synchronous tapping
Thread cutting
Geometric functions
Collision detection
8.4" LCD display
