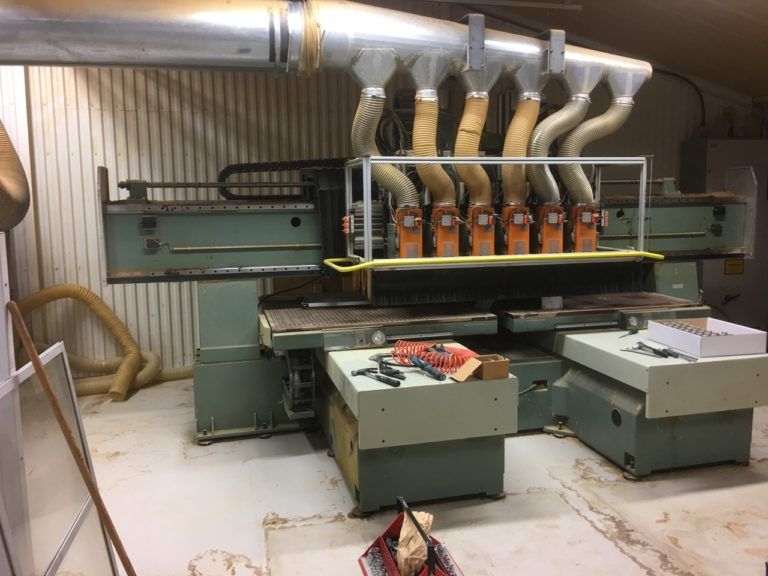

CMS PF102

CNC
Spare parts and tools included, complete manual/instruction
9 cutters included

Techn. info:
Numeric controll (NC) type AB OSAI 10/310
Memory 32Mbyte on HD
Double vacuum work tables size 1500x1500mm
Independent (alternating mode) or synchronized unde NC control for large pices machining
Typ:Lignostone suction surface. Width along X 1500mm, along Y 1500mm.
2 pcs vacuumpumps type BECKER VTL F250, 2x4,8Kw, 250m3/h
Stroke axis:
X=3600mm
Y=1600mm
Z=250mm
Feed speed programmable:
X=900mm/s /54000mm/min)
Y=750mm/s (45000mm/min)
Z=167mm/s (10000mm/min)

Operating units 6 pcs typeT12/18, 4-pole electrospindel, rated 8,5kw/spindle
frequency 600Hz, max speed 18000rpm, current 22 A, IP54
Chuck ETS 40 collets (max tool shank diam 25mm)
Hollow cutters hole diam 30mm
MK2 morse cone with hydraulic grip
Tools maximum length 120mm
Frequency static converters 3 pcs type BERGES ACI 22, 3x22kw
Programmable electrospindles speed from från 0-18000 rpm
Power 400 volt AC 10% V, 50 Hz, maximum installed power 100 KV A
Static converter power 3x22 kw
Average absorbed operating power 33 kw
Max current at start up 150A
Power cable three phase 4x16mm2
Cable terminal
Electric cabinet 1000x800x2100mm(h)
Dust suction, nozzles 6 pcs each 140mm in diam, 2 pcs each 250mm in diam.
Weight all assembled 7000 Kg
Weight electric cabinet 700 kg
Weight vacuum pumps 300 kg
Space needed for machine assembled see drawings
