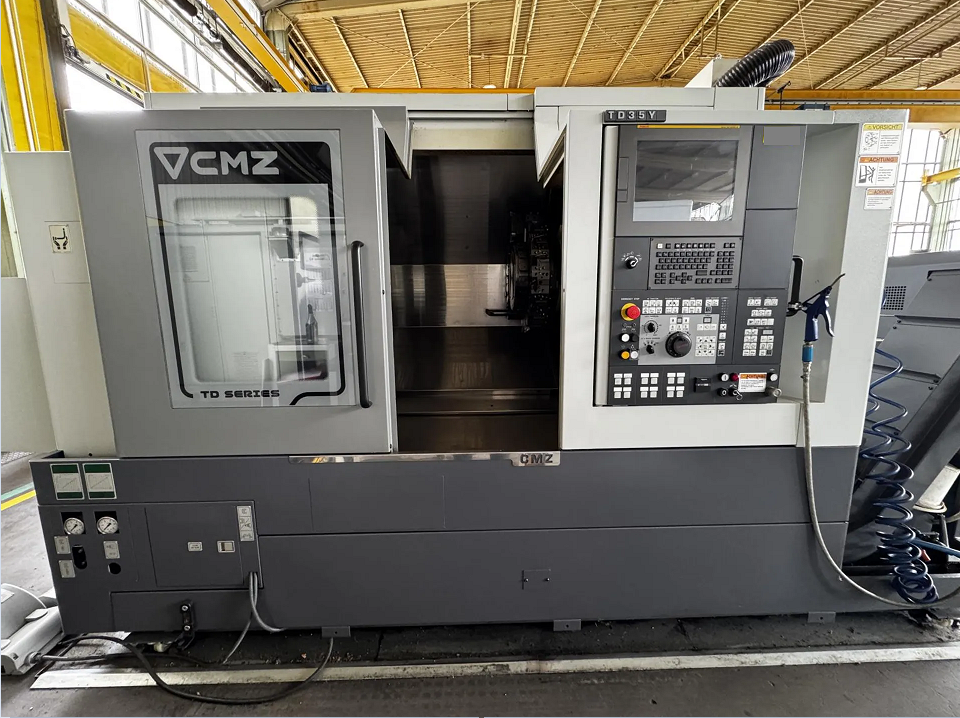

CMZ Fanuc Series 32i - Model B 3000 rpm TD35Y 2 Axis
Ref :
2735301-3-AW
Condition :
Used
Manufacturer :
CMZ
Controller :
Fanuc Series 32i - Model B
Spindle Speed :
3000 rpm
Model :
TD35Y
Nb Of Axis :
2 Axis
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X axis travel: 380 mm
Z axis travel: 800 mm
Y axis travel: +80/-60 mm
Rapid feed X axis: 30 m/min
Rapid feed Y axis: 15 m/min
Rapid feed Z axis: 30 m/min
Control: Fanuc Series 32i - Model B
Bar capacity: 95 mm
Max diameter over bed: 950 mm
Max diameter over carriage: 715 mm
Max turning diameter: 550 mm
Distance between centers: 850 mm
Spindle speed: 3000 rpm
Spindle nose: ASA 11” A2
Turret: 16 positions
Machine dimensions: 2803 x 1989 x 2236 mm
Machine weight: 8200 kg
Chip conveyor
High pressure pump
Smoke filtration
Live tooling
