CMZ FANUC 31i - MODEL A TX66 Y2 Quattro

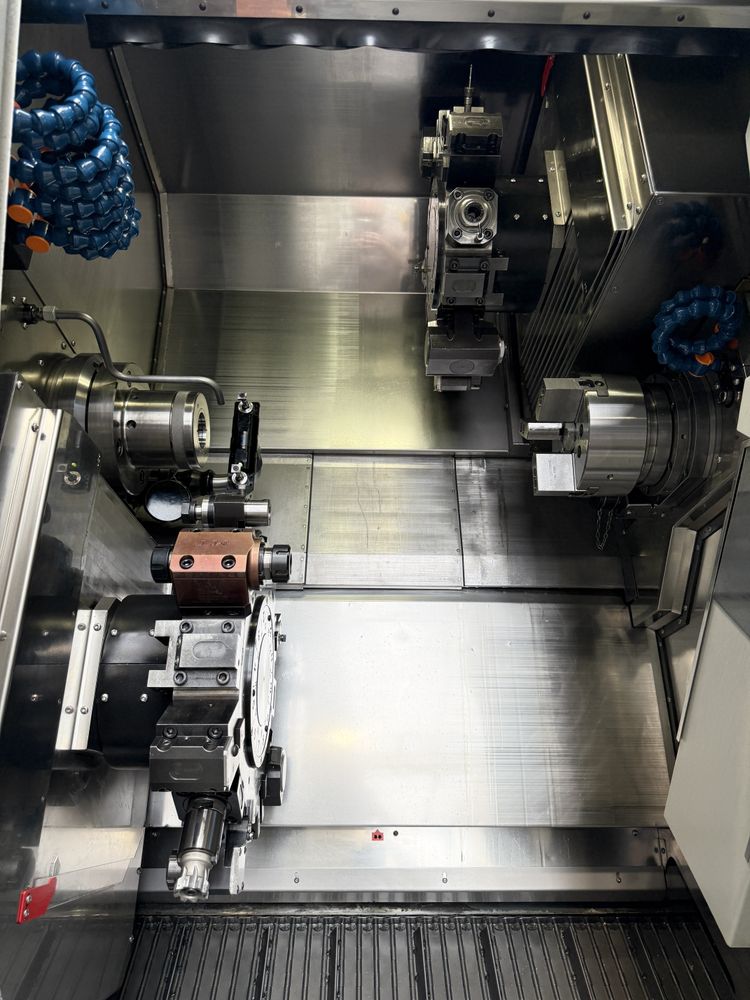

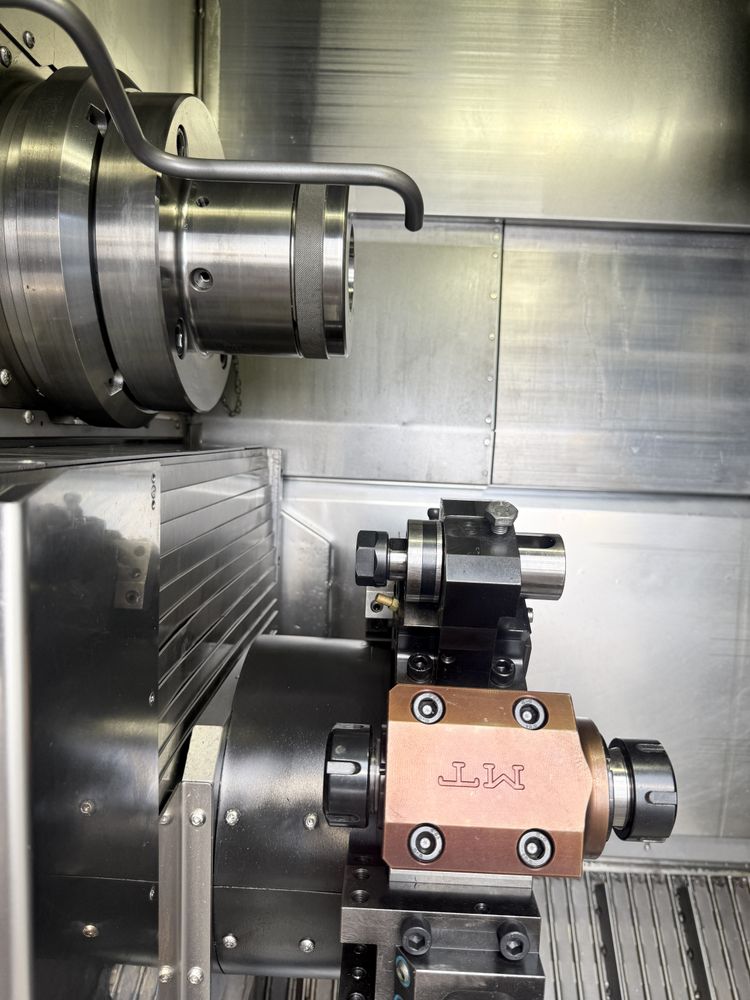

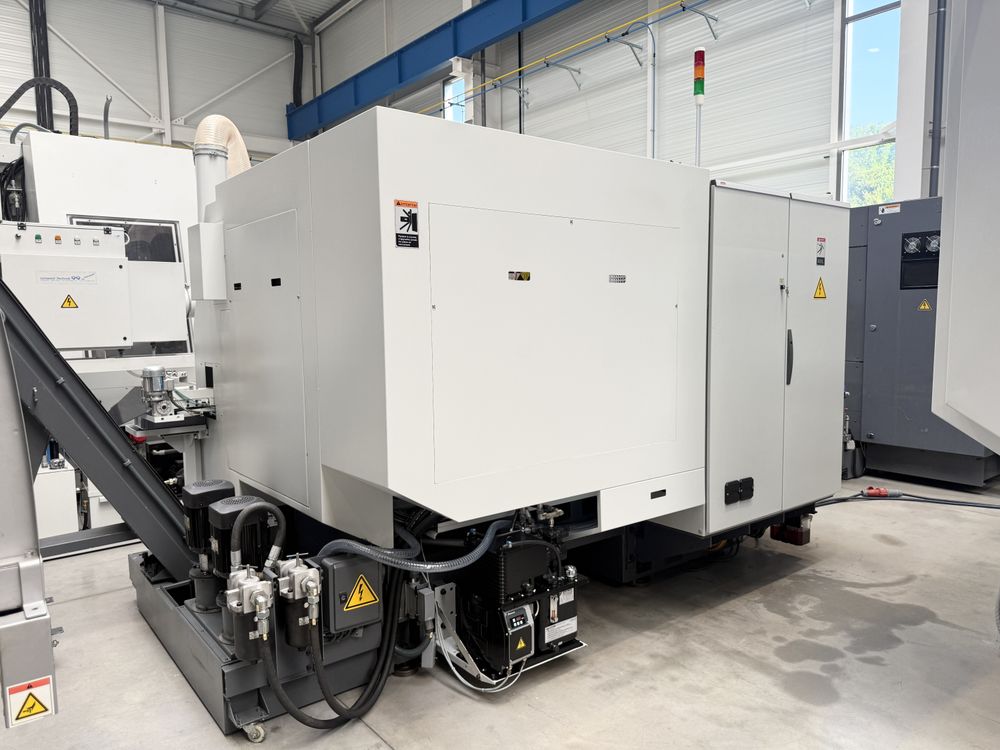

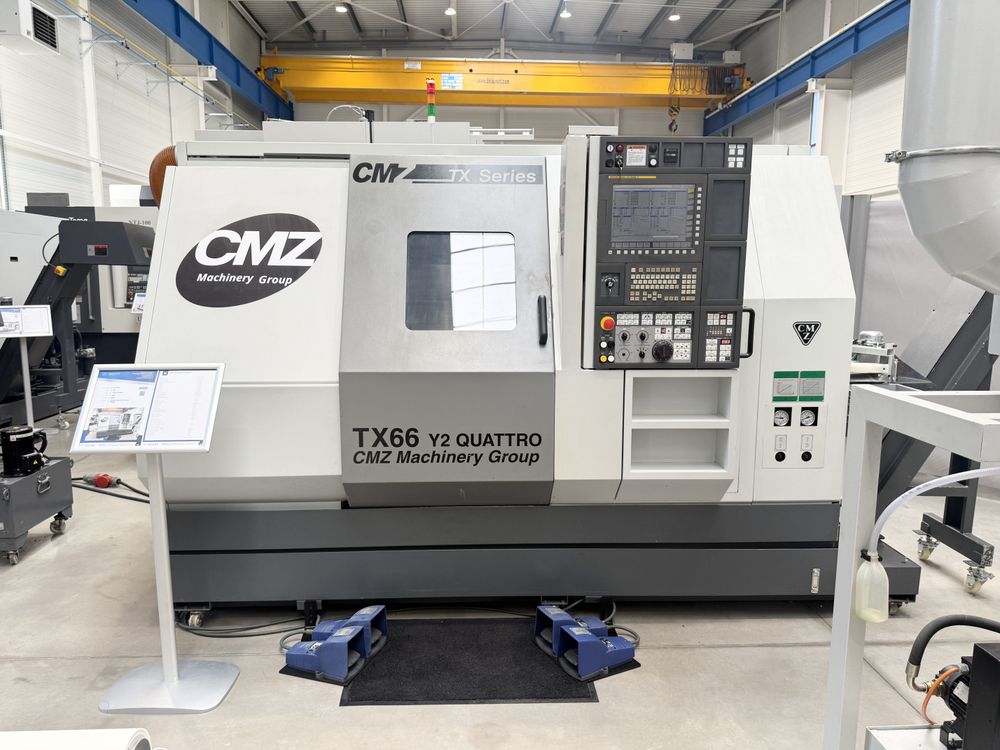

CNC Lathe CMZ TX 66 Y2 Quattro



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2010

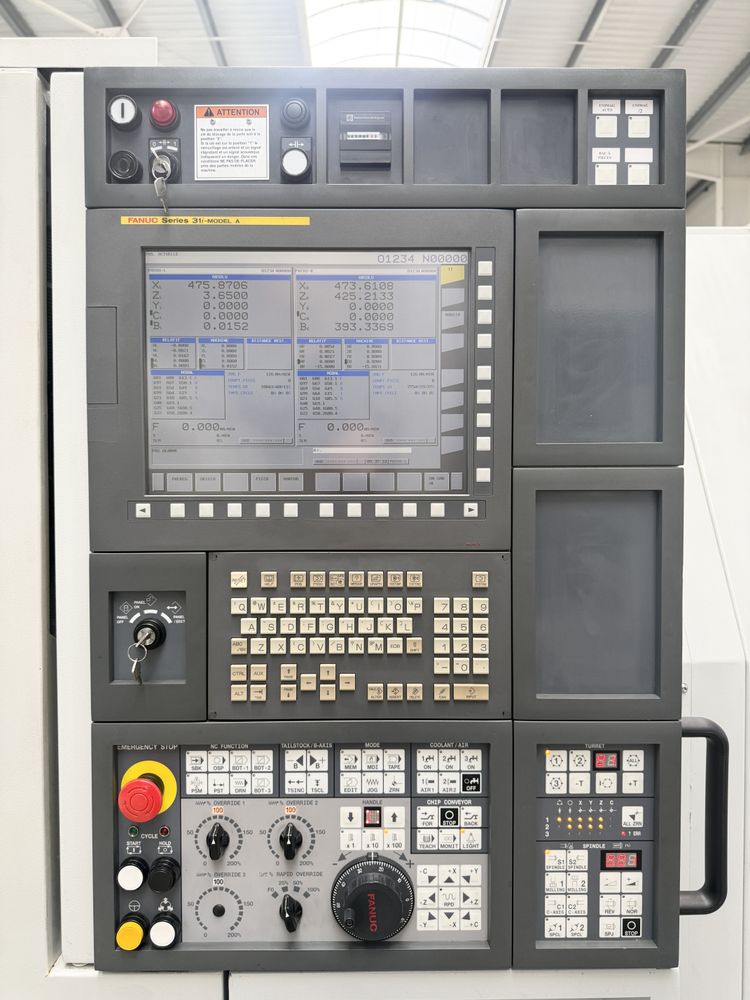

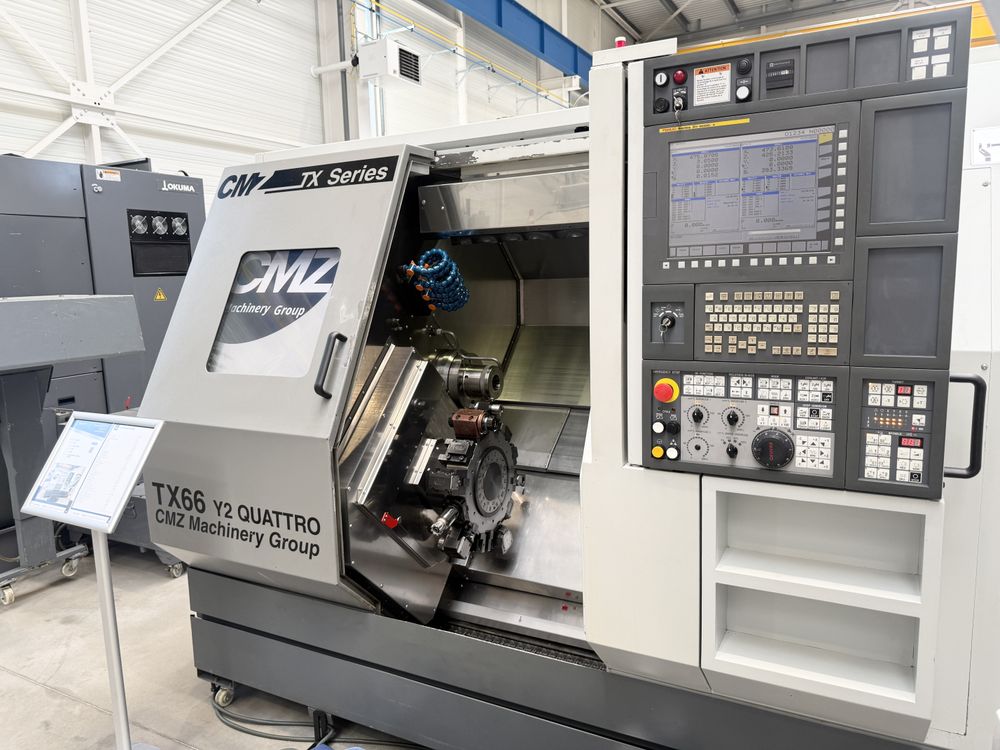

CNC control: FANUC 31i - MODEL A
Distance between chucks: 639 [mm]
Max. turning diameter: 255 [mm]
Height of centers over cariage: 270 [mm]
Stroke Z1 axis: 500 [mm]
Stroke X1 axis: 190 [mm]
Stroke Y1 axis: +/- 40 [mm]
Stroke Z2 axis: 500 [mm]
Stroke X2 axis: 190 [mm]
Stroke Y2 axis: +/- 40 [mm]
Rapid traverse rate X axis: 16000 [mm/min]
Rapid traverse rate Z axis: 20000 [mm/min]
Rapid traverse rate Y axis: 12000 [mm/min]
Axes acceleration: 1g
Spindle nose: ASA 8" A2
Max. bar diameter: 66 [mm]
Spindle throughbore: 77 [mm]
Max. spindle speed: 4000 [rpm]
Spindle power: 15 [kW]
Spindle torque: 136 [Nm]
Counter spindle nose: ASA 6" A2
Max. bar diameter counter spindle: 52 [mm]
Counter spindle throughbore: 61 [mm]
Counter spindle stroke: 635 [mm]
Max. counter spindle speed: 5000 [rpm]
Counter spindle power: 7.5 [kW]
Counter spindle torque: 68 [Nm]
Turret indexing time: 0.1 [s/pos]

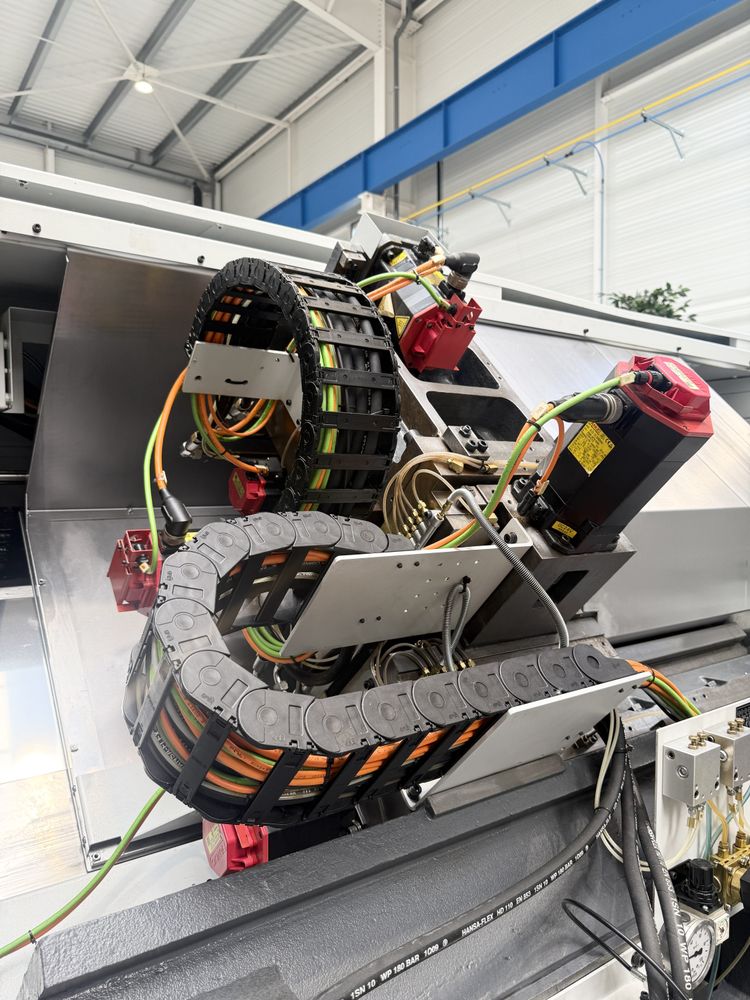

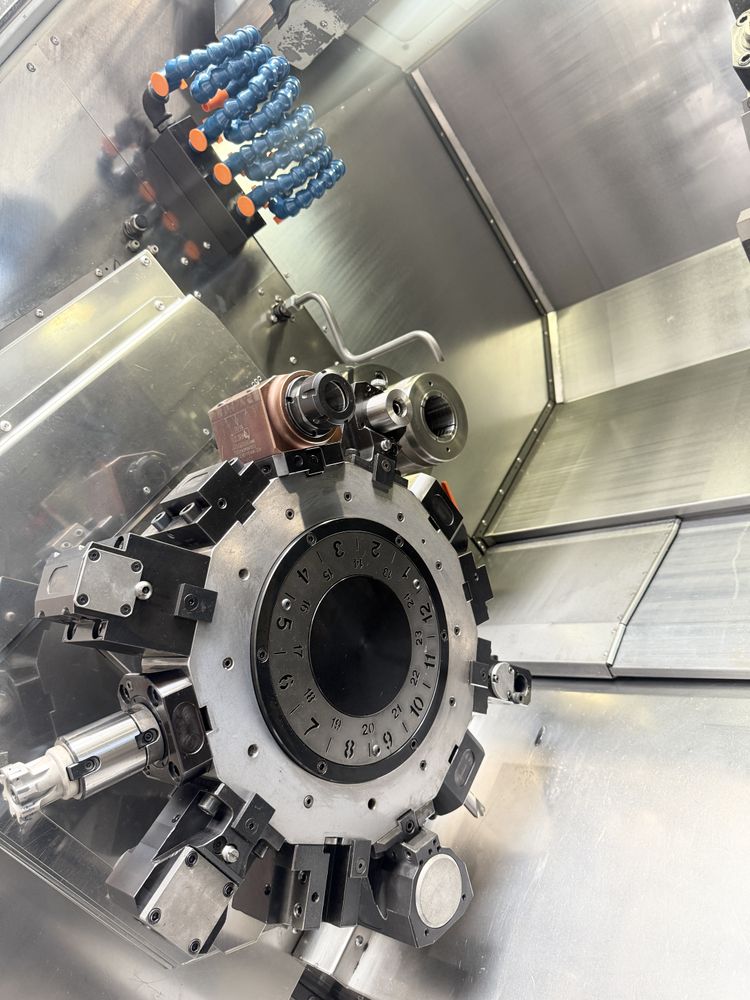

Number of tool stations - Turret 1: 12
Number of tool stations driven - Turret 1: 12
Max. speed driven tools - Turret 1: 6000 [rpm]
Number of tool stations - Turret 2: 12
Number of tool stations driven - Turret 2: 12
Max. speed driven tools - Turret 2: 6000 [rpm]
Live tools power: 18 [kW]
Total power required: 65 [kVA]
Supply voltage: 400 [V]
Weight: 9600 [Kg]


INCLUDED EQUIPMENT:

1x Chip conveyor

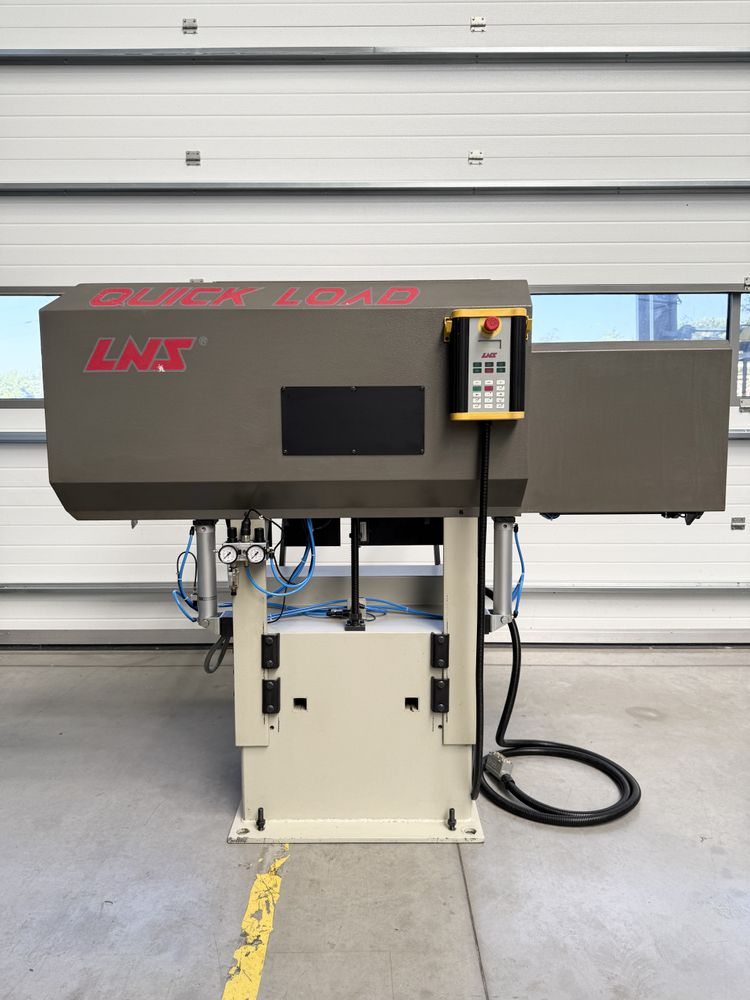

1x LNS QUICKLOAD bar feeder (bar length 1500 mm // max. Ø80 mm)
1x High-pressure pump
1x RENISHAW RP3 tool probe
1x Part catcher
1x Pneumatic part ejector

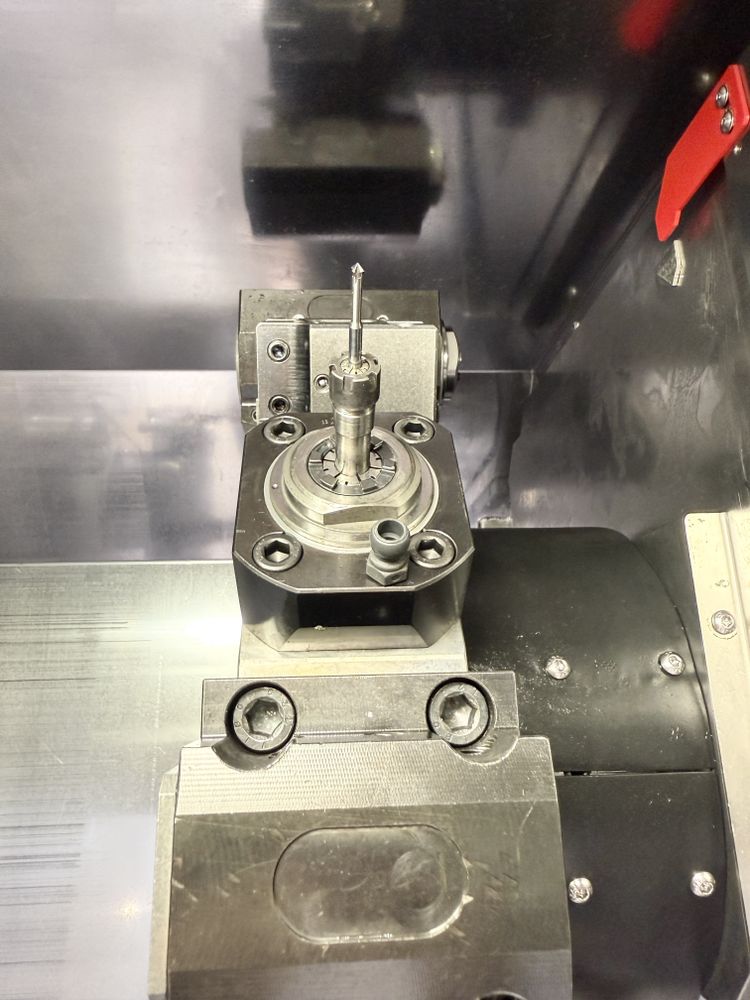

4x axial driven tool holders
6x radial driven tool holders
18x static tool holders
1x SMW AUTOBLOK collet chuck (main spindle)
1x KITAGAWA B-208 3-jaw concentric chuck (counter-spindle)
CMZ technical documentation



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
