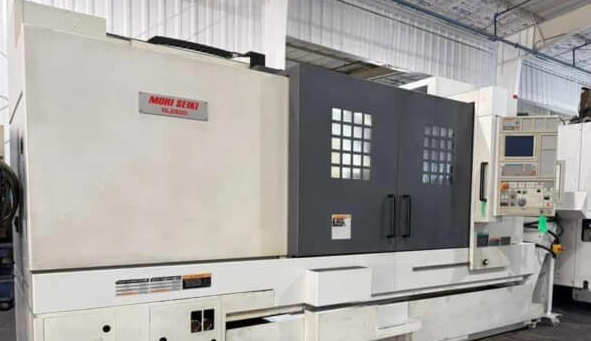

Mori Seiki MSX-850IV 4000 RPM NL-2500SY/1250 5 Axis

X Axis Travel: 10.2″
Y Axis Travel: 3.9″ (±2.0)
Z Axis Travel: 53.0″
B Axis Travel (Sub Spindle): 50.6″
C Axis (Both Spindles): 360 Degree (0.001)
MSX-850IV
Bar Feeder Interface
Tool Presetter
Parts Catcher
Oil Cooling Unit
LNS Chip Conveyor
Foot Switches
Max Bar Capacity: 3.1″
Swing Over Cross Slide: 29.7″
Max Turning Diameter: 14.0″
Main Spindle Speed: 4000 RPM
Main Spindle Motor: 25 HP
Main Spindle Nose: A2-8
Main Spindle Bore: 3.6″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Nose: A2-5
Sub Spindle Bore: 1.7″
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Rapid Traverse Rate X & Z Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 394 IPM
Rapid Traverse Rate B Axis: 787 IPM
10″ 3-Jaw Kitagawa Chuck on Main Spindle
8″ 3-Jaw Kitagawa Chuck on Sub Spindle
Turret Capacity: 12 Stations
Turret Type: BMT
Overall Dimensions: 171″ x 85″ x 88″ High
Weight: 16,750 lbs Approx.
Power Requirement: 50 kva
Power Source: AC 220 V Three Phase 60 Hz
