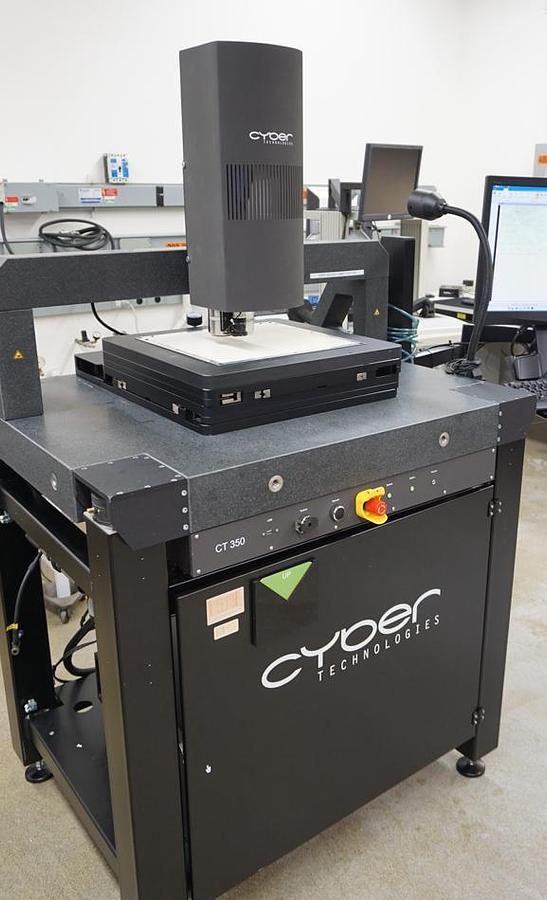

CT 350 3D Non-Contact Optical Profiler

Precitec CHRocodile SE-1000 Interferometric Point Sensor
Range: 1.000mm (resolution 0.035um)
Measuring Distance 20.800um
Spot Diameter: 3.5um
Measuring Angle: 90 degrees +/- 45 degrees
550 x 550mm XY stage
150mm Z travel

Precitec L-CHR 500 Line Sensor
Line length 1.4325 mm
Pitch: 7.500 um
Range: 500 um
Axial Resolution: 50.00 nm
Numerical Aperture: 90 degrees +/- 38
Working Distance: 12.00 mm

Upgraded Windows 11 PC
Scan Suite 8.14 version 8.14.8626 SP1 x64 Build 8/13/2023 System 2810001
Calibration standard
Basler acA2500-14gc Progressive scan CMOS color video camera with GigE Machine Vision

The Precitec CHRocodile SE is an ultra-high-speed interferometric point sensor designed
for non-contact distance and thickness measurements. It uses advanced optics to
measure layers with extreme accuracy. It is widely used in industries like electronics
and semiconductor manufacturing.

Key Features and Specifications of Precitec CHRocodile SE point sensor
Measurement Type: Measures distance and thickness passively.
Material Versatility: Works flawlessly on any infrared-transparent material,
including rough or highly doped silicon wafers, semi-transparent plastics, and glass.
Exceptional Speed: Captures data at incredibly fast rates (up to 66,000 to 70,000 Hz)
to keep up with rapid, high-volume production lines.
Accuracy: Delivers nanometer-level resolution, allowing it to measure even
the smallest microstructures.
Easy Integration: Features a small, compact design. It easily fits into tight spaces
in complex manufacturing and testing machines.
