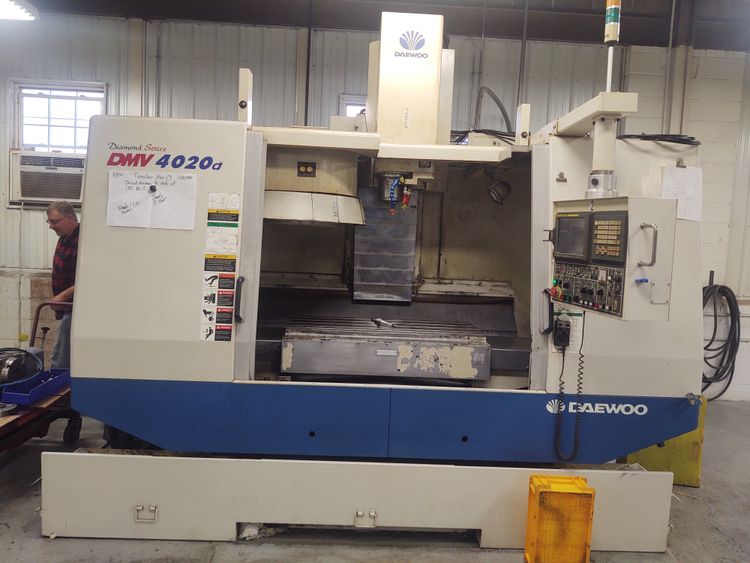

Daewoo DMV-4020d 3 Axis

Daewoo DMV-4020d
Year: 2005

X-AXIS TRAVEL ........................... 40.2"
Y-AXIS TRAVEL ........................... 20.1"
Z-AXIS TRAVEL ........................... 24.6"
SPINDLE NOSE TO TABLE TOP ............... 5.91" TO 30.5"
DISTANCE FROM SPINDLE CENTER TO COLUMN .. 20.47"
TABLE SIZE .............................. 19.7" X 47.2"
MAX TABLE LOAD .......................... 1,760 LBS
RAPID TRAVERSE RATES (X & Y/ Z) ......... 1,181 / 945 IPM
SPINDLE SPEEDS .......................... TO 8,000 RPM
SPINDLE MOTOR ........................... 20 HP
SPINDLE TAPER ........................... CAT 40
TOOL STORAGE CAPACITY ................... 24 TOOL
APPROX MCHINE DIMENSIONS ......... 128" X 102" X 118" TALL
APPROX MACHINE WEIGHT .................. 16,000 LBS

EQUIPPED WITH:
* FANUC MODEL: 21iMB 4-AXIS CNC CONTROL
* REMOTE JOG HANDLE (MPG)
* BOX WAYS
* SAMCHULLY MODEL: S200 F4 4TH AXIS
   w/ SAMCHULLY 7-1/2" 3-JAW, 5C COLLET NOSE ATTACHMENT
* COOLANT TANK AND CHIP PAN, FLOOD COOLANT
* SPINDLE OIL CHILLER
* 24 POCKET UMBRELLA STYLE TOOL CHANGER
* 20 HORSE POWER SPINDLE MOTOR
