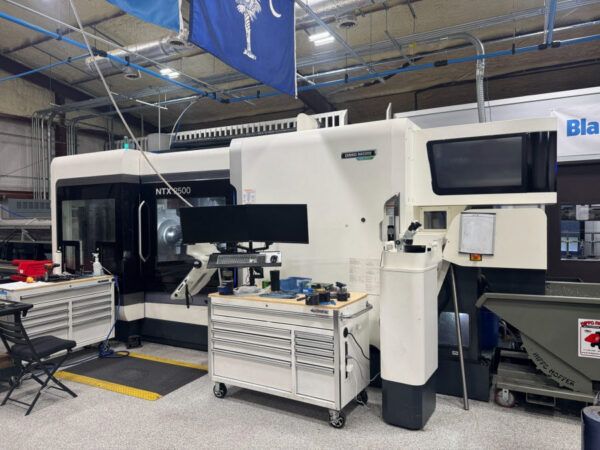

DMG FANUC 4,000 RPM MORI NTX-2500/1500 12 Axis

Y-axis turret
Control: FANUC
Tool spindle full indexing
Manual in-machine tool presetter
RENISHAW RMP600 probing system
Technology Cycle
Alternating speed
3D quickSET
MPC Machine Protection Control
Optional block skip 2-9
Water-soluble coolant
Through spindle coolant
Super high pressure coolant system 7.0 MPa
High pressure coolant 1000 PSI
Variable flow high pressure coolant
Coolant gun
Air blow for tool tip
Air blow for counter spindle chuck
Mist collector interface
Chip conveyor
Drum filter chip conveyor
Chip chiller
Multi dry filter
EtherNet/IP interface
Bar feeder interface
Signal lamp 4 colors
Workpiece unloader
Workpiece unloading conveyor
Workpiece stocker
Workpiece ejector
Parts unloader
Magazine barfeed
Tailstock on sub spindle
60" centers
Main spindle through hole: 91 mm
Sub spindle through hole: 91 mm
Main spindle speed: 4,000 RPM
Sub spindle speed: 4,000 RPM
Main spindle bore: 3.58"
Sub spindle bore: 3.58"
Main spindle chuck: 10"
Sub spindle chuck: 10"
Tool spindle speed: 20,000 RPM
Tool spindle power: 23 / 22.2 kW
Turret milling speed: 6,000 RPM
Turret milling torque: 40 Nm
Capto C6
10 station turret
76 tool magazine
220 V
60 Hz
