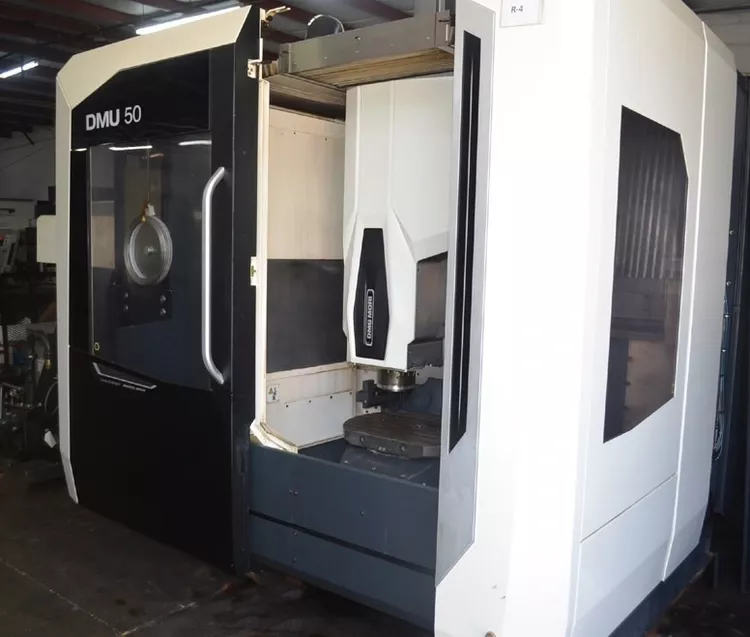

DMG MORI DMU 50 GEN III 6 Axis

DMG MORI DMU 50 GEN III
Year: 2020

Number Of Tables / Pallets 1
Table Size - L 24.8"
Table Size - W 19.6"
Weight On Table 660 lb
Integrated NC Rotary Table Size 0"
Main Spindle Horse Power 35 hp
Spindle Nose To Table 5.924"
Main Spindle Speeds 20,000 RPM
Main Spindle Taper 63

X - Axis Travel 25.59"
Y - Axis Travel 20.4"
Z - Axis Travel 18.7"
A - Axis Travel -5 ~ 110 DEGREES
B - Axis Travel 360 DEGREES
C - Axis Travel Table Indexing 0

Rapid Traverse Rate - X 1,654 in/min.
Rapid Traverse Rate - Y 1,654 in/min.
Rapid Traverse Rate - Z 1,654 in/min.

Cutting Feed Rate 0 in/min.
Vertical Turning Table Size, Number Of Tables 0
Vertical Turning Table Speed 0 RPM
Vertical Turning Table Horse Power 0 hp
Automatic Tool Changer 60

Tool Diameter 3.145"
Tool Length 11.8"
Tool Weight 17.6 lb
Machine Weight 16,500 lb
Control CNC (CELOS SIEMENS 840D CONTROL)
Weight 0.00

CHIP CONVEYOR
HAND HELD REMOTE PULSE GENERATOR
SPRAY GUN FOR SWARF REMOVAL
COOLANT THRU SPINDLE
TOOL LENGTH MEASUREMENT TOUCH PROBE
OIL AND EMULSION MIST SEPARATOR MECHANICAL
INFRARED MEASURING PROBE PP60 OPTICAL
3D QUICKSET
