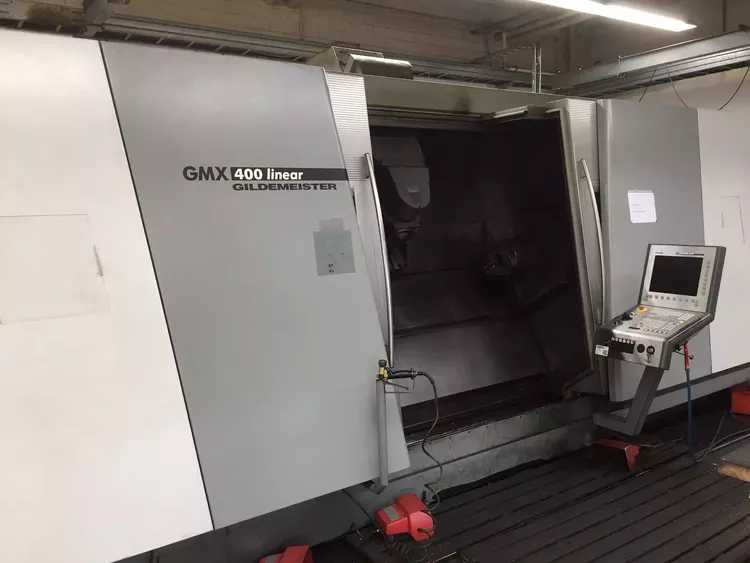

DMG Siemens 840 D Powerline 4000 rpm GMX 400 Linear 5 Axis

X-axis travel: 550 mm
Y-axis travel: ±90 mm
Z-axis travel: 1585 mm
Rapid feed rate (X/Y/Z): 40 / 24 / 60 m/min
C-axis: 0.001°
B-axis: ±120°
B-axis: triple Hirth serration 1°

CNC controller: Siemens 840 D Powerline
Turning length: 1500 mm
Turning diameter: 640 / 400 mm
Bar capacity: 92 mm
Main spindle speed: 4000 rpm
Main spindle power: 45 / 36 kW
Main spindle torque: 730 Nm
Counter spindle speed: 4000 rpm
Counter spindle power: 45 / 36 kW
Counter spindle bar capacity: 92 mm

Milling spindle speed: 12000 rpm
Milling spindle power: 22 / 13.2 kW
Milling spindle torque: 100 Nm
Milling spindle taper: HSK 63

Tool changer capacity: 60
Tool change time: 1.6 s
Lower turret driven tools: 12
High pressure pumps: 80 bar
Coolant system: 980 liters
Chip conveyor
Coolant gun
Air through spindle
Oil mist extractor
Steady rest with oil supply
3-jaw chuck: Röhm KFD-HS 315-91
Automatic doors
