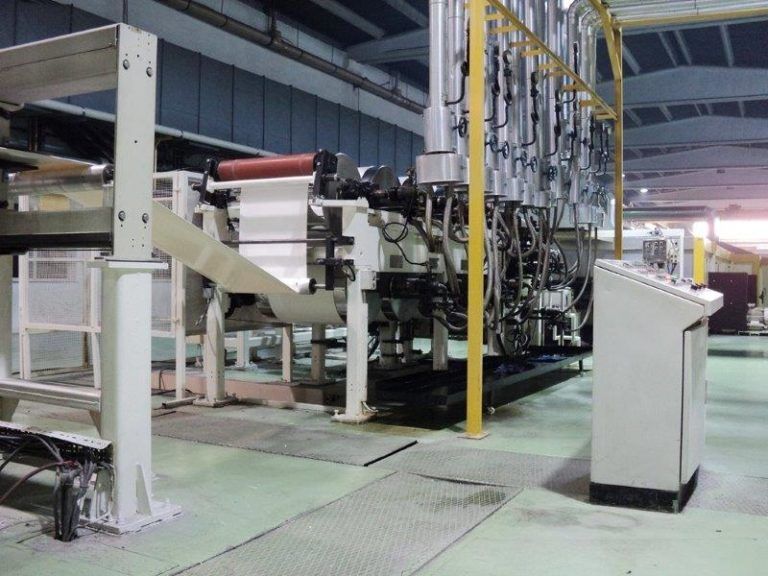

DMT BOPP / BOPET

Max. Size 4200mm
Condition Good

Continuous Dosing System :
Main Extrusion
4 components
homopolymer 0 - 1000 kg/h
reclaim 0 - 300 kg/h
masterbatch A 0 - 150 kg/h
masterbatch B 0 - 60 kg/h
Main extruder mixing hopper:
Capacity : 1 m³
Mixing screw drive capacity : 2.2 kW
Rotation arm drive capacity : 0.37 kW
Construction : stainless steel - 304 L
Weighing device
Capacity : 1000 kg + dead weight of the hopper
Accuracy : ± 2 kg

Extrusion Line :
Main Extruder 200 mm ( DAVIS STANDARD )
Maximum extruder output : 1060 kg / h
Screw diameter : 200mm
L / D ratio : 34
Number of water heating / cooling zones : 7
Total heating capacity : 231 kW
Drive Requirement : 490 kW by DC motor
Satellite extruder 50 mm ( DAVIS STANDARD )
Capacity : 45 kg/h
Diameter : 50 mm
L/D Ratio : 30
Number of barrel heating / cooling zones: 4
Drive capacity : 39,5 kW
Barrel heating capacity : 18 kW
Main filtration system
Type : Candles
Number of candles : 7
Number of Filter : 1 in operation
Filter heating : electrical
Heating capacity : approx. 8.4 kW
Satellite filters
Type : Screen changer
Diameter : 50 mm
Filter heating : electrical
Heating capacity : approx. 1.4 kW
Static Mixer
Die ( multi - layer die system )
Type of die : automatic die ( 22 bolts )
Die slot width : 650 mm approx.
Die slot opening : 2.1 - 4 mm
Heating capacity : 12 kW electrical

Casting Machine :
Film width : 650 mm ( max )
Web Speed : 2 - 40 m/min
Chill roll diameter : 1400mm
Chill roll width : 900 mm
Chill roll surface fiinish : Hard chrome plated
Drive : 4.35 kw
ACCESSORIES

Machine Direction Orienter ( MDO ):
Longitudinal Stretching machine
Working width : 650 mm
Preheating rolls Ø 600mm, chrome
Stretching rolls Ø 150mm, chrome
Anealing rolls Ø 600mm, chrome
Roll speed mechanical slow section : 2 - 50 m/min
Roll speed mechanical Fast section : 3 - 180 m/min
Nip rolls Ø 150mm
Drive : slow section 26 kW
fast section 66 kW
Heating type : oil boiler
Heating capacity : 30 kW for each preheating roll pair
15 kW for each stretching roll pair
30 kW for the heat setting roll pair
ACCESSORIES

Transverse Direction Orienter ( TDO ) :
Transverse Stretching machine, continuous chain track heavy duty
sliding chain and clips. Heated by oil. Galvanized carbon steel
air nozzles.
Working width :4000 - 4500 mm between clip face
Feed zone : 1.5 m
Preheating zone : 3 zone, 9 m
Stretching zone : 3 zone, 9 m
Heat Set zone : 3 zone, 9 m
Neutral zone : 1 m
Cooling zone : 2 m
Outlet zone : 1.5 m
2 gear box size 200, one right, one left.
Drive : 109kW
ACCESSORIES

Pull Roll Stand ( PRS ):
Working width 4400 mm before edge trims
Wautomatic edge trim cutting and conveying to the edge trim recycling system
Thickness gauge system with automatic die bolt control
Corona treatment on bottom side equipped with 1 x 10 fins station and
1 x 20 kW generators
Corona treatment on top side equipped with 1 x 10 fins station and
1 x 20 kW generators
Ozone exhaust system
Cooling rolls Ø 310mm, chrome
Guide rolls Ø 310mm, chrome
Treater rolls Ø 350mm, chrome
Press rolls Ø 310mm, rubber
Drive : 22kW
ACCESSORIES

Winder :
Automatic two position turret winder
Working width 4200 mm after edge trims
Max. Roll diameter 800 mm
4500mm core tube x 290 mm diameter
Core length 4500 mm
Roll transfer system automatic / tapeless
Tension control system high precision electronic gauge
Special low bending Contact roll Ø 175mm
Drive 2 x 11,5 kW winding, 6,7 kW turret.
ACCESSORIES

Edge Trim Recycling System:
Two edge trim nozzles with cannection pipes and flexibles
Two edge trim suction fans with venturi, 7.5 kW 1500 m³/hr
One cyclone
Grinder 300 kg/hr for edge trim width 75 - 150 mm
Drive requirement 30 kW
One pneumatic transport fan, 18 kW, 1500 m³/hr
Connection pipes and flexibles
ACCESSORIES

Slitting Machine with electrical and pneumatic panels
Atlas CSE 820
Max. Rewind width 1500mm
Min. Rewind width 300mm
Max Rewind diameter 760mm
Max. Speed 600m/min
Number of rewind station 8
Electrical System
electrical equipment for resin supply
electrical equipment for stretching line
electrical equipment for winder
electrical equipment for drive system
Computerized process control system
automatic thickness control system
Variable speed drive group
Motor Control center
ACCESSORIES

Hot Oil Boiler:
1.250.000 kcal
