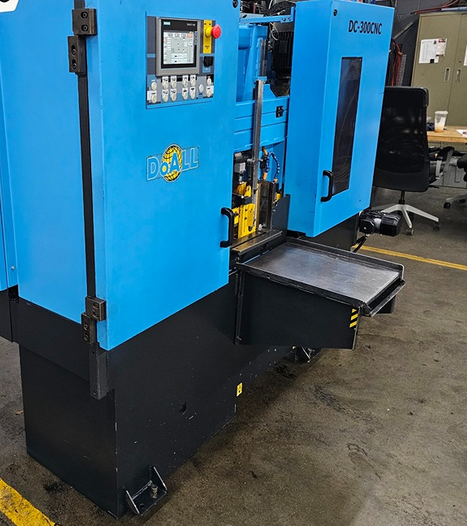

DoAll DC-300CNC Hercules Band Saw CNC CONTROL

Cutting capacity round tube 11.8" (300mm)
Cutting capacity round solid 9-7/8" (250mm)
Cutting capacity rectangle 11.8 x 11.8" (300x300mm)
Maximum bundle capacity 11.8 x 8.7" (300x220mm)
Band saw blade width 1-1/4 x 0.043"
Maximum blade length 178"
Band speed 65-328 fpm
Band drive 5 hp (4 kW)
Hydraulic pump 1 hp (0.75 kW)
Coolant pump 0.16 hp (0.12 kW)
Material pass line height 31-1/2" (800mm)
Machine weight 3,131 lbs (1,420 kg)
Dimensions W x L x H 87 x 82 x 85"
Index single stroke min-max 0.2-19.9" (5-505mm)
Auto index multiple stroke max 394" (9999mm)
Wired 460V 3 Phase
Approx. 14 new blades
Colored Siemens touch screen
Automatic & semi-automatic cycle
Worm chip conveyor for long chips
Rapid head down approach
Carbide faced saw guide inserts with lead in bearings
Programmable material height sensor
Full stroke hydraulic vises
Electric driven band cleaning brush
Infinite band speed by variable frequency drive
Split front vise
Cast steel band wheels
Programmable modified metered feed system
19" discharge table
Hydraulic band tension
Recirculating coolant system
Variable vise pressure
LED work light
Saw blade guards
Band door interlocks
Automatic retraction of material in cycle for protection of carbide blade
Automatic guide arm setting
