Doosan CNC (FANUC 0i-TD) 3000 rpm PUMA 3100 ULY 4 Axis

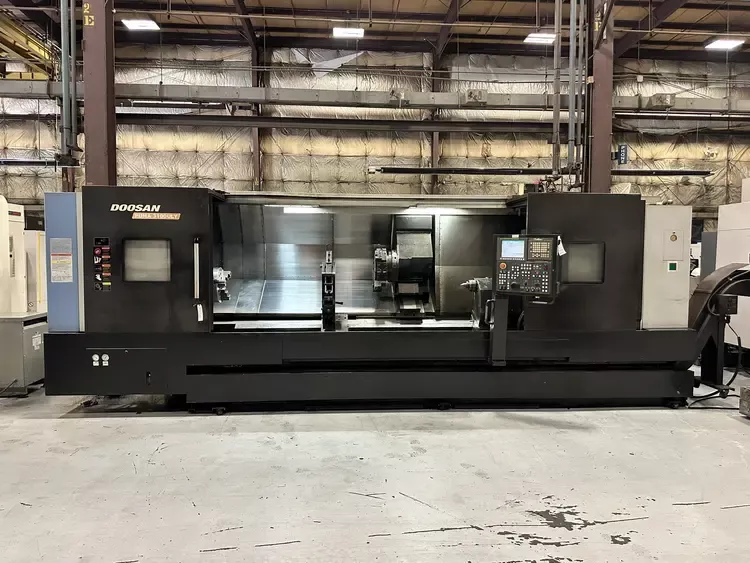

DOOSAN PUMA 3100 ULY
2010

Maximum swing 33.46 in
Maximum turning diameter 16.53 in
Maximum cutting length 123 in
Distance between spindles 125.59 in
Maximum swing over cross slide 26.38 in
X-axis travel 11.53 in
Z-axis travel 125.59 in
Y-axis travel 5.12 in
C-axis indexing .001 deg
Main spindle chuck size 15 in
Main spindle chuck type Hydraulic
Main spindle bore diameter 4.52 in
Main spindle maximum bar work 4.05 in
Main spindle speed 3000 rpm
Main spindle horsepower continuous 30 hp
Main spindle horsepower 30 min 40 hp
Turret tool positions 12
Turret rotary tool spindle speed 5000 rpm
Turret rotary tool horsepower 10 hp
Tailstock included
Steady rest included
Chip conveyor included
Chip conveyor type Side
Tool eye automatic front spindle included
Number of available live tool holders 3
Control CNC (FANUC 0i-TD)
Machine dimensions 300 in x 90 in x 91 in
Machine weight 29000 lbs
FANUC Oi-TD CNC control
Manual Guide i
Y-axis
Live milling
Kitagawa B-15 15 in 3-jaw hydraulic chuck
Tool presetter
Chip Blaster JV40 high-pressure coolant unit
RIP 216 manual steady rest with base
Steady rest capacity 0.5 in – 16 in
