Doosan Doosan-Fanuc i Series CNC control 5000 RPM PUMA 2100Y 4 Axis

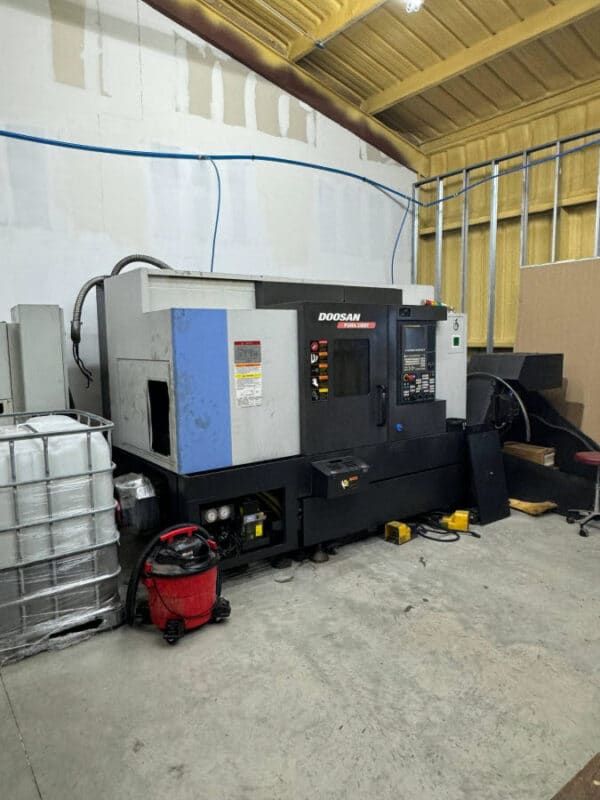

DOOSAN PUMA 2100Y
2015

maximum turning diameter 16.0″
maximum swing over bed 30.7″
maximum swing over saddle 24.8″
maximum turning length 20.5″
maximum bar capacity 2.6″
distance between centers 24″
X axis travel 10.2″
Z axis travel 23.2″
Y axis travel 5.25″ (±2.62″)
C axis rotation 360° (0.001° increment)

X axis rapid traverse 1181 IPM
Z axis rapid traverse 1181 IPM
Y axis rapid traverse 393 IPM

spindle nose A2-6
spindle bore 3.0″
spindle speed 5000 RPM
spindle motor 15 HP

turret capacity 12 stations
turret index time 0.15 sec
live tool power 7.5 HP

tailstock quill diameter 3.1″
tailstock quill stroke 3.93″
tailstock body travel 23.2″
tailstock taper MT-4

power supply AC 220 V / 3-phase / 60 Hz
power requirement 36.26 kVA
machine dimensions 125.6″ x 76.6″ x 85.2″
machine weight approx. 12,015 lbs
Doosan-Fanuc i Series CNC control
10.4″ color LCD display
C and Y axis capability
8″ 3-jaw chuck
servo controlled full C-axis spindle
12-station live tool turret
parts catcher
USB drive
PCMCIA card slot
rigid tapping
tool presetter
tailstock
coolant system
chip conveyor
