Doosan CNC type FANUC i Series 5000 rpm LYNX 2100A 2 Axis

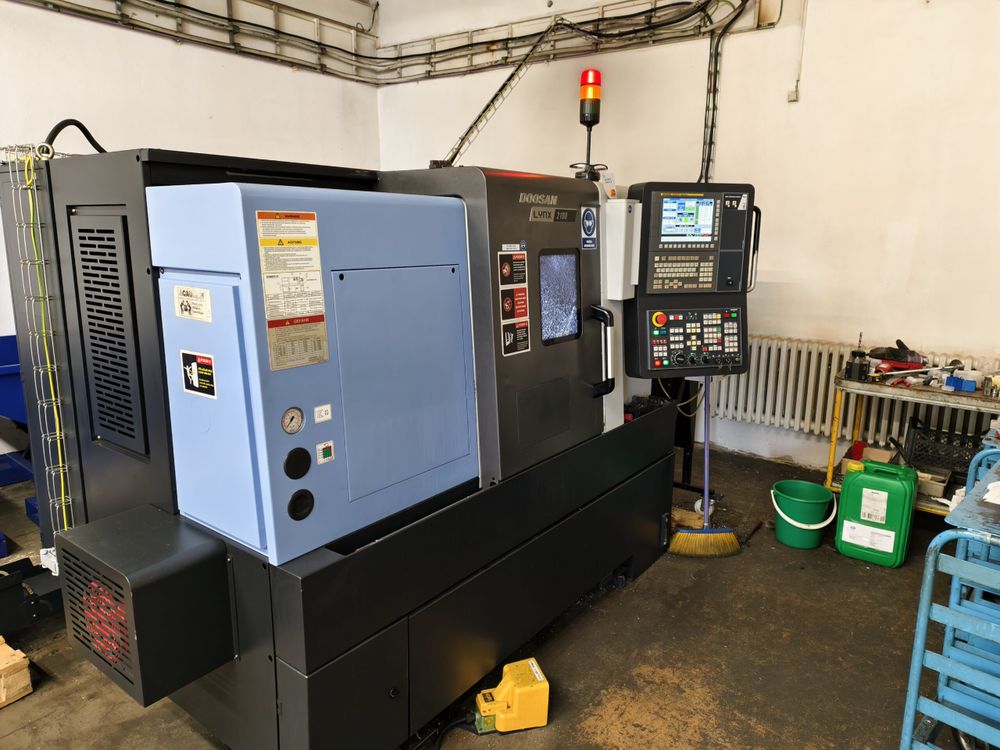

DOOSAN LYNX 2100A

In good technical condition and fully functional.
Powerful, compact and reliable 2-axis horizontal lathe.
Turning length 330 mm.
Bar diameter 51 mm.

Number of controlled axes 2
X-axis travel 205 mm
Z-axis travel 340 mm
Chuck diameter 170 mm (6")
Spindle speed 5000 rpm
Spindle mount ASA A2-5
Automatic turret
Number of tools 12
Machine weight 3100 kg
Operating hours 5443
Max turning length 330 mm
Max turning diameter 350 mm
Max swing over bed 600 mm
Swing over cross slide 400 mm
CNC type FANUC i Series
Manual Guide
LAN interface
Spindle nose A2-5
Spindle bore 51 mm
Tailstock not present
