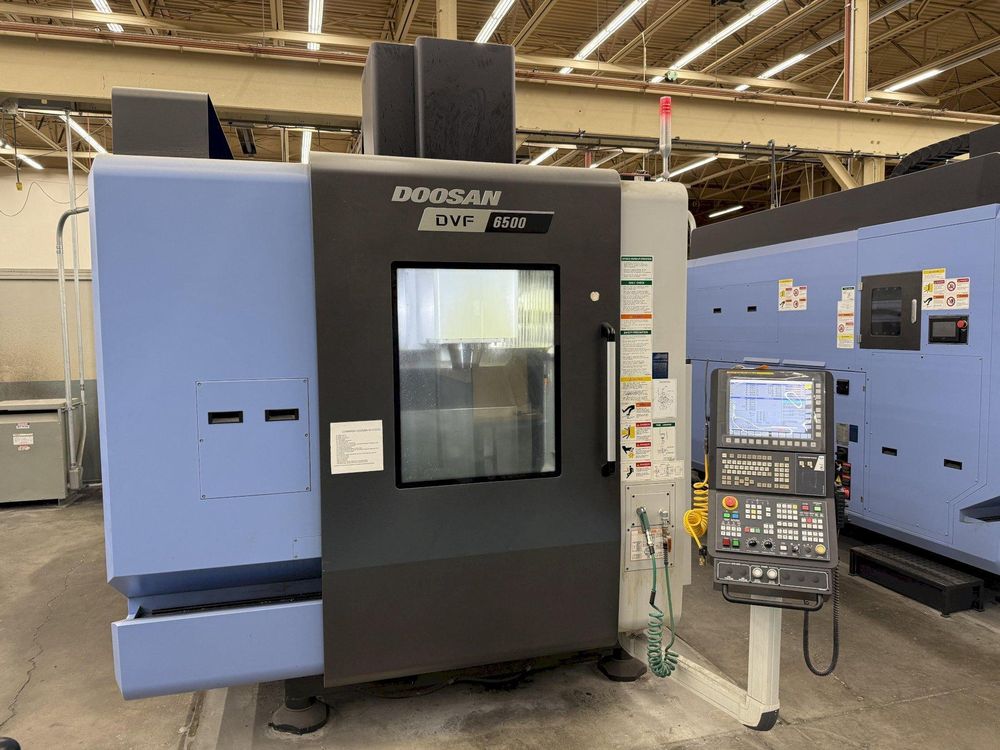

Doosan DVF 6500 5 Axis

X-Axis Travel 25.9"
Y-Axis Travel 30.9"
Z-Axis Travel 23.6"
C Axis Index 360°
A Axis Rotation +/- 120°

Control Fanuc 31i-Model B5
5-Axis Machining
Coolant Thru Spindle
Table Size 25.6" x 23.6"
Max Table Load 1,322 lbs
Spindle Taper CAT 40 Big Plus
Spindle Speed 18,000 rpm
Main Motor 30 hp
ATC Capacity 60

Rapid Traverse Rate X/Y/Z 1,771 ipm
Machine Weight 32,000 lbs
5-Axis Simultaneously Controlled
Glass Scales on X/Y/Z Axes
Chip Conveyor
Coolant Tank & Pump
Thru Spindle Air
Flood Coolant
Renishaw RPM600
NC4 Laser Tool Setter
Hydraulic Power Unit 2,900 psi
Spindle Chiller
Rigid Tapping
AICC II - 600 Block Look Ahead
1GB Data Server
Intelligent Kinematic Compensation (IKC) Software
