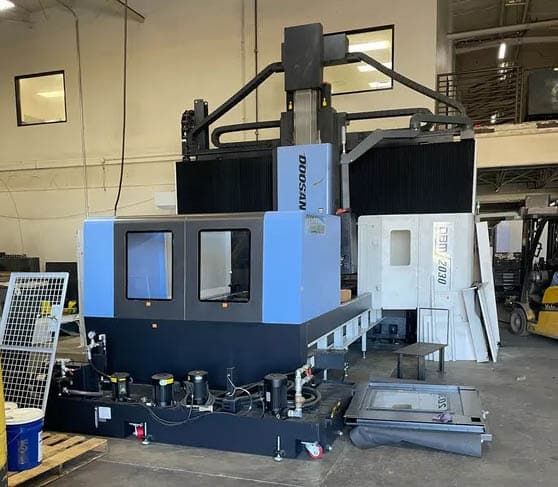

Doosan DBM2030 4 Axis

X-axis travel 3250mm (128")
Y-axis travel (working) 2500mm (98.4")
Y-axis travel (ATC access) 350mm (13.78")
Y-axis travel (AAC access) 350mm (13.78")
Z-axis travel (extended) 1100mm (43.3")
C axis 0–360°, 1° increments

Rapid traverse X/Y 20 m/min (787 IPM)
Rapid traverse Z 15 m/min (590 IPM)
Cutting feedrate X/Y/Z 10000 mm/min (394 IPM)

Width between columns 2500mm (98.4")
Table to spindle nose (standard) 200–1000mm (7.87–39.4")
Table to spindle nose (riser) 500–1300mm (19.69–51.2")
Table to spindle nose (riser, extended Z) 200–1300mm (7.87–51.2")
Table width 1500mm (59")
Table length 3000mm (118.1")
Table load capacity 12000kg (26400 lbs)
T-slots 24H8 x 10, 28H8 x 10

Spindle type Built-in
Spindle max RPM 8000
Spindle power 55kW (73.8 HP)
Spindle base speed 350 RPM
Spindle max torque 1009 Nm (744.6 ft-lbs)

Ram size 380 x 380mm (14.96" x 14.96")
ATC tool capacity 40
Tool shank CAT 50 Big-Plus
Pull stud Modified CAT 50
Tool selection Fixed address

Max tool diameter 130mm (5.1")
Max tool diameter with empty pockets 250mm (9.8")
Max tool length 400mm (15.7")
Max tool weight 30kg (66 lbs)
Max tool moment 29.4 Nm (21.7 ft-lbs)

Tool change time (V T-T-T) 5.5 sec
Tool change time (V C-T-C) 36 sec
Tool change time (H T-T-T) 6.0 sec
Tool change time (H C-T-C) 34 sec
Tool clamping force 21400kg

Least command increment 0.001mm (0.0001")
Positioning accuracy ±0.01mm/m (±0.00039")
Positioning accuracy with linear scales ±0.007mm/m (±0.00028")
Repeatability ±0.003mm (±0.00012")
Flood coolant flow rate 30 L/min (8 GPM)
Coolant tank capacity 1000 L (264 gal)
TSC coolant pressure 20 bar (290 PSI)
TSC filtration 10 micron (cyclone)
High-pressure TSC pressure 70 bar (1000 PSI)
High-pressure TSC filtration 5 micron (paper bag)
Hydraulic tank capacity 105 L (27.6 gal)
Hydraulic pressure/volume 90 bar / 25 L
Way lube tank capacity 12 L (3.1 gal)
Spindle cooling tank capacity 60 L (15.7 gal)
Ballscrew cooling tank capacity 20 L (5.2 gal)
Machine length 8800mm (346")
Machine width 6930mm (273")
Machine height (with riser) 5700mm (224")
Machine weight 32000kg (70400 lbs)
Power required 100 KVA / 265 A @ 220V
Voltage required 205–235V, 3 phase
Air pressure 5.4 bar (78 PSI)
Air consumption 950 NL/min (35 SCFM)
Fanuc 31i-B control
15" screen
Oil skimmer (belt type)
Coolant gun
Lubrication with metered piston distributor
Slideway covers (X and Y)
3-color signal light
Work lights (ram, under cross rail, under saddle)
Fanuc tool management
Doosan tool load monitoring
Workload counter
Adaptive feedrate control
Doosan EOP easy pattern cycle
Renishaw probe ready (RMI-Q)
Auto power off
MPG with LCD display
Monolever switches
DSQ 1 (AICC II – 200 block + machine condition select)
Inch/metric conversion
Rigid tapping
Custom Macro B
G120 five-face automatic offset cycle
Coordinate system rotation with macro
2MB program memory
1000 registered programs
200 tool offsets
Leveling pads
Foundation plates
Tool kit
Heavy cast iron construction
Dual Z-axis ballscrews
8-point box guideway on ram
Large LMG guideways for X and Y axes
Spindle override 10–150%
Spindle load meter
Spindle air purge
Chip air blow on ram
Oil cooler for spindle
Oil cooler for ballscrews
1° curvic coupling
5-face machining support
Dummy head cover
Double arm ATC
Tool clamp/unclamp device
ATC safety fence
Chip cover (operator/ATC sides)
Spindle lubrication system
Hydraulic power unit
Pendant-mounted control
Electrical cabinet cooling fan
Operator side step
Spindle thermal compensation
