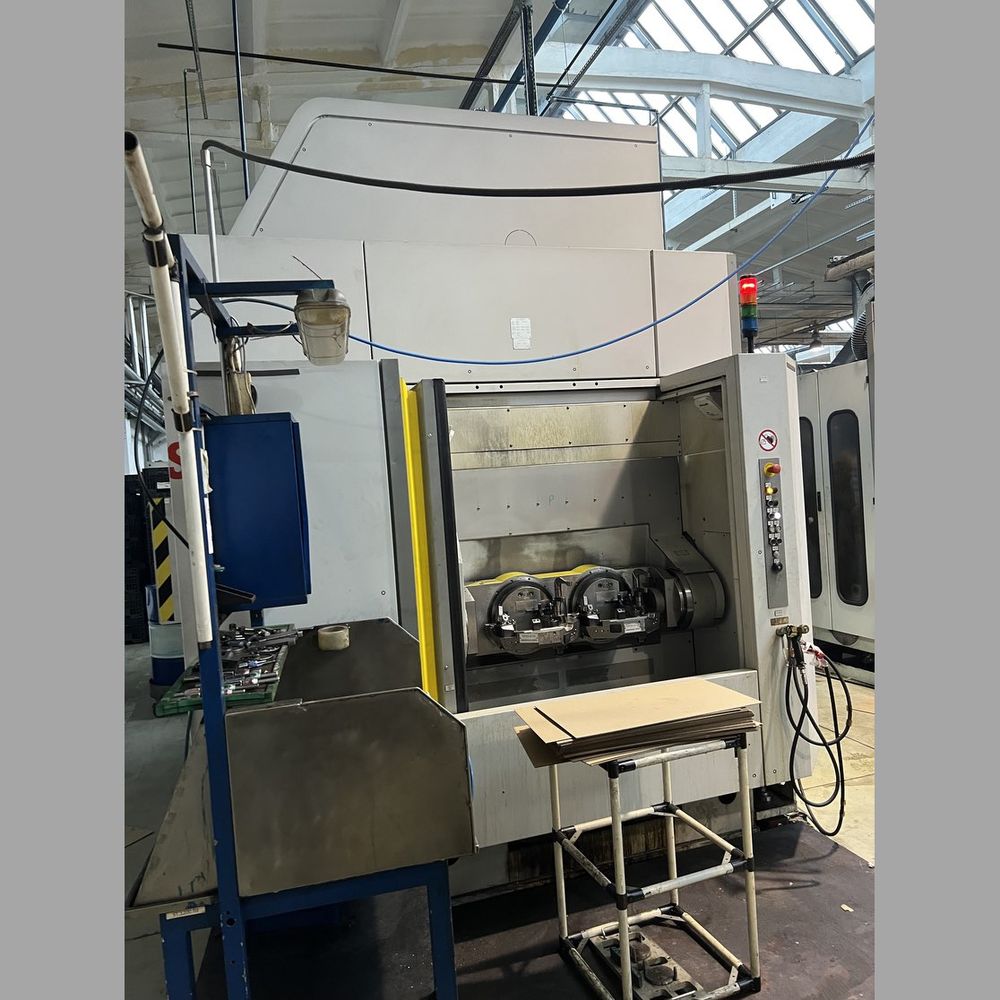

SW (Schwäbische Werkzeugmaschinen) BA 422 5 Axis

X-Axis Travel: 400 mm
Y-Axis Travel: 500 mm
Y-Axis Travel: 775 mm
Z-Axis Travel: 425 mm
5 Axis
NC-Controlled Swivel Units: 2
NC-Controlled Rotary Tables: 2
Control: Siemens 840D Solutionline
Linear Glass Scales
Internal Coolant Supply
Coolant Unit With Paper Band Filter
High Pressure Pump: 70 bar
Oil / Emulsion Mist Extraction Unit
Flush Gun
Max Spindle Speed: 10000 rpm
Spindle Power: 2 × 27 kW
Max Torque: 2 × 200 Nm
Spindle Diameter Front Bearing: 80 mm
Tool Holder: HSK A-80
Horizontal Milling Spindles: 2
Spindle Distance: 400 mm
Max Cutting Feed X: 55 m/min
Max Cutting Feed Y: 70 m/min
Max Cutting Feed Z: 75 m/min
Acceleration X: 8 m/s²
Acceleration Y: 8 m/s²
Acceleration Z: 15 m/s²
Feed Force X: 15000 N
Feed Force Y: 15000 N
Feed Force Z: 2 × 8000 N
Tool Magazine: 2 × 30 Stations
Max Tool Diameter: 80 mm
Max Tool Diameter Without Adjacent Tools: 160 mm
Max Tool Length: 300 mm
Max Workpiece Weight: 10 kg
Chip-To-Chip Time: 2.75 s
Automatic Workpiece Changer: 2 Position
Clamping Bridge Supports: 2 Sets
Hydraulic Clamping
Additional Clamping Circuits: 6
Air Monitored Tool Clamping
Air Monitored Workpiece Clamping
Tool Breakage Monitoring Inductive
Tool Breakage Monitoring MONTRONIX
Tool Life Monitoring With Sister Tool Management
Fully Enclosed Work Area
Automatic Sliding Working Door
Work Area Light
Scraper Type Chip Conveyor
Additional Control Panel For Tool Management
Warning Lamp
Total Power Requirement: 105 kVA
Machine Dimensions: 4400 × 3270 × 3050 mm
Machine Weight: 13900 kg
