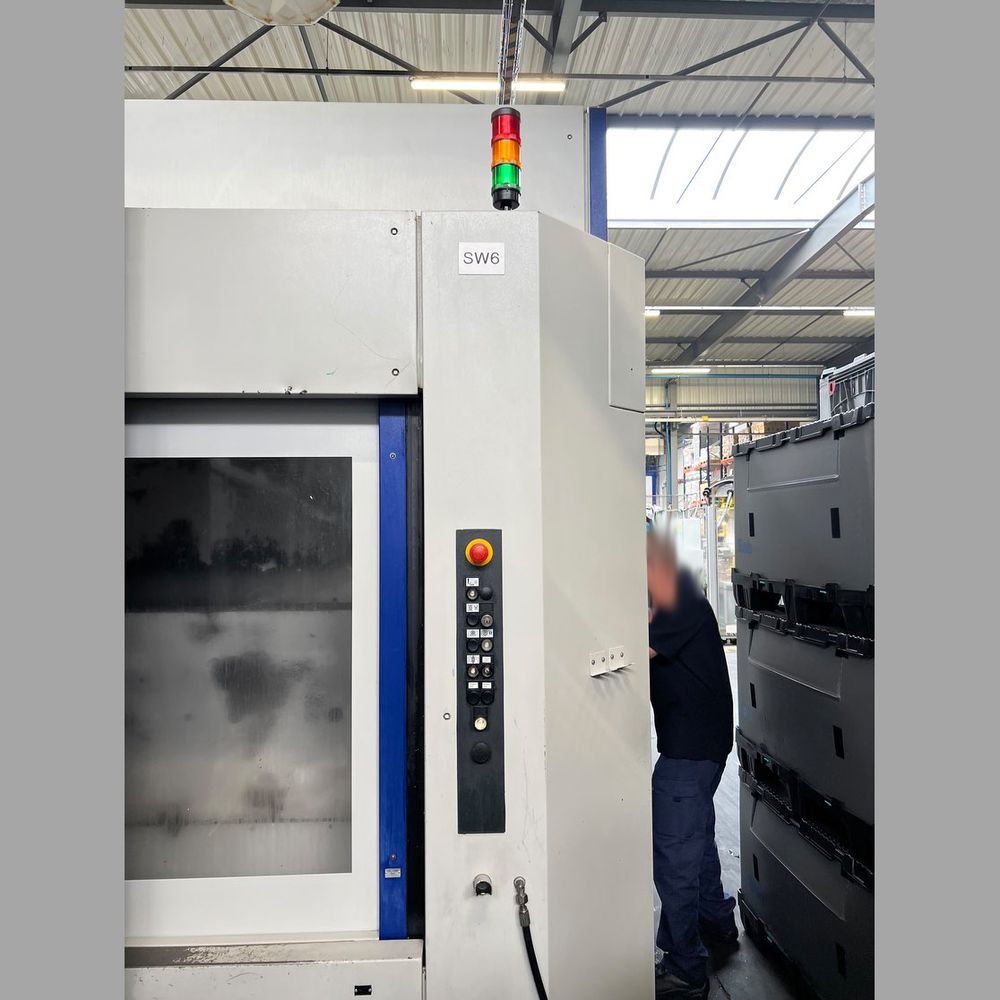

SW (Schwäbische Werkzeugmaschinen) BA W06-22 6 Axis

X Axis Travel: 600 mm
Y Axis Travel: 600 (875) mm
Z Axis Travel: 500 mm
Rapid traverse X/Y/Z: 100/100/100 m/min
Linear drives X/Y/Z
Linear glass scales X/Y/Z/A/C/W
2 swivel units NC-controlled
2x 5-axis rotary tables
1x 4-axis machining side
Rotary table diameter: 240 mm
Control: CNC
Siemens 840D powerline control
IR measuring probe
Tool breakage monitoring system
Tool life monitoring with sister tool management
Air-monitored tool clamping
Pneumatic tool taper cleaning
Fully enclosed work area
Automatic sliding door
Working area lighting
Preparation for mist extraction system
Scraper-type chip conveyor
Internal coolant supply
Coolant unit with paper band filter
High-pressure coolant pump: 70 bar
Interface for gantry loader or robot
Remote diagnostics capability
Rigid tapping
Additional control panel for tool management
Warning lamp
Spindle taper: HSK-A63
Number of spindles: 2 horizontal milling spindles
Spindle speed: 17,500 RPM
Spindle power: 35/26 kW
Spindle torque: 80/60 Nm
Spindle diameter: 80 mm
Spindle distance: 600 mm
Tool magazine: 2 x 42 tools
Maximum tool diameter: 80 mm
Maximum tool diameter (without adjacent tools): 160 mm
Maximum tool length: 350 mm
Chip-to-chip time: 2.75 sec
Pallet changer: 2 pallets
Maximum workpiece weight per pallet: 600 kg
Maximum workpiece weight: 10 kg
Machine dimensions: 3680 x 5400 x 3250 mm
Floor space: 4800 x 7500 x 3300 mm
Machine weight: 20,000 kg
