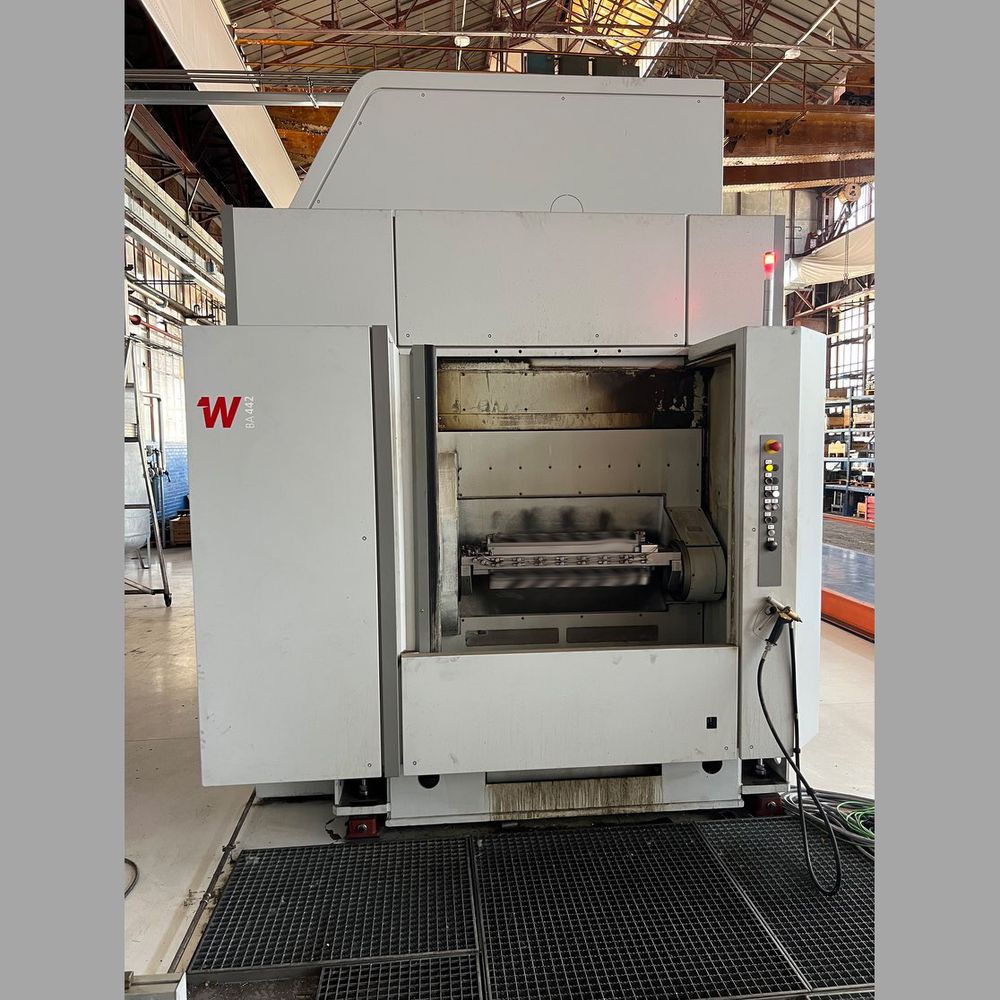

SW (Schwäbische Werkzeugmaschinen) BA 442 3 Axis 4-spindle Machining Centre

X-axis travel: 200 mm
Y-axis travel: 500 mm (775 mm)
Z-axis travel: 425 mm
Rapid traverse X/Y/Z: 55/70/70 m/min
Siemens Sinumerik One control
Linear glass scales
Tool breakage monitoring by toolinspect
Tool life monitoring
Fully enclosed work area
Automatic sliding door
Work area light
Oil/emulsion mist extraction unit
Scraper-type chip conveyor
Internal coolant supply
Coolant unit with paper band filter
High pressure pump: 70 bar
Additional control panel for tool management
Warning lamp
Tool taper: HSK 63
4 horizontal milling spindles
Spindle speed: 17500 RPM
Spindle power: 4 x 32 kW
Spindle torque: 4 x 72 Nm
Spindle diameter: 80 mm
Spindle distance: 200 mm
Feed force X/Y/Z: 15000/15000/12000 N
Tool magazine: 4 x 30 stations
Max tool diameter: 80 mm
Max tool diameter without adjacent tools: 150 mm
Max tool length: 300 mm
Air-monitored tool clamping
Chip-to-chip time: 3 sec
Bridge dimensions: 1030 x 550 mm
1 set clamping bridge supports
Hydraulic clamping: 250 bar
2 additional clamping circuits
Air-monitored workpiece clamping
Max workpiece weight: 10 kg
Total power requirement: 110 kVA
Transport dimensions: 4400 x 3270 x 3050 mm
Space requirement: 4380 x 7000 x 5500 mm
Machine weight: 18000 kg
