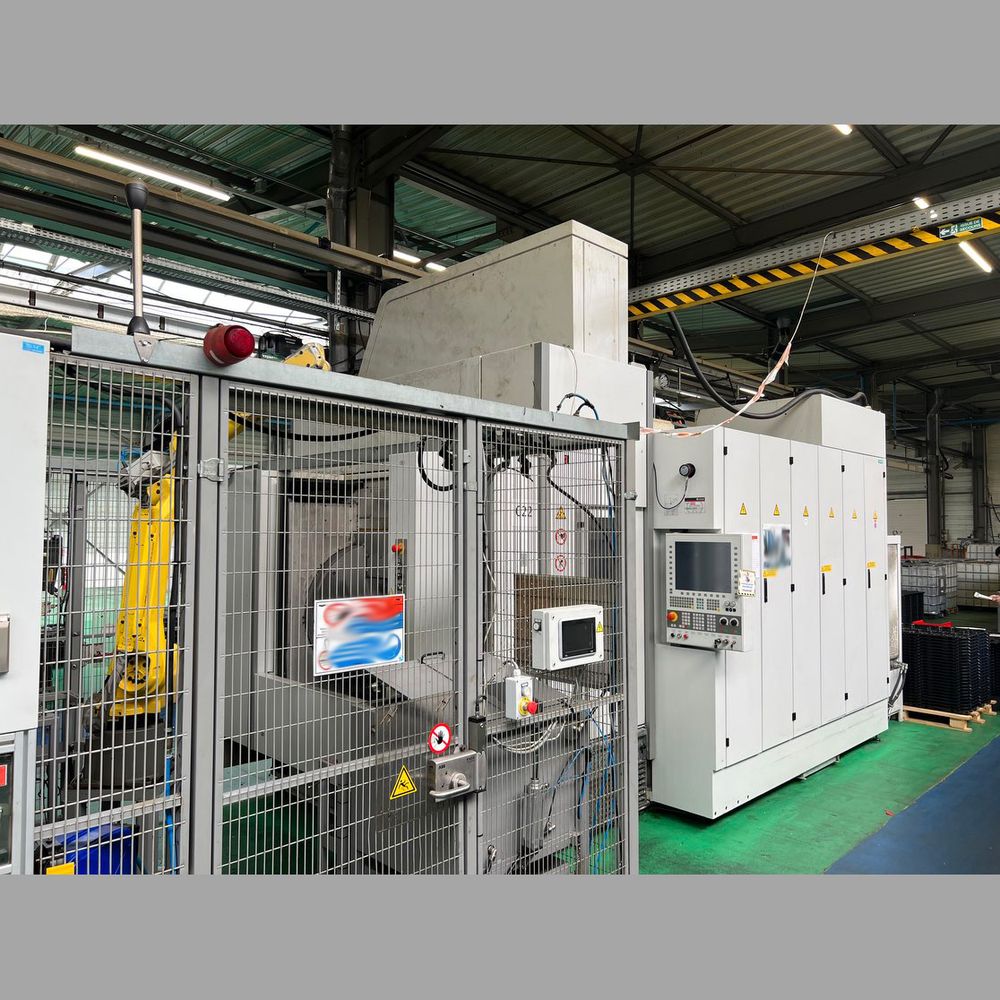

SW (Schwäbische Werkzeugmaschinen) BA W04-22 Double-spindle machining center 4 Axis

Control: Siemens 840D Solutionline
X-axis travel: 400 mm
Y-axis travel: 500 mm (775 mm option)
Z-axis travel: 425 mm
Rapid traverse (X/Y/Z): 100 / 100 / 100 m/min
Acceleration (X/Y/Z): 13 / 12 / 23 m/s²
Feed force (X/Y/Z): 10,000 / 10,000 / 2×5,000 N

Spindle taper: HSK-A 63
Max spindle speed: 17,500 rpm
Spindle power (10–40/100%): 35 / 26 kW
Spindle torque (10–40/100%): 80 / 60 Nm
Spindle diameter (front bearing): 80 mm

Milling spindles: 2 horizontal spindles
Spindle distance: 400 mm
Linear scales: X/Y/Z/A(U)/C1(C2)/W1(W2)
Drive system: Linear drive
Z-axis: Two separate Z-axes

Tool magazine: 2 × 60 stations (chain type)
Max tool diameter: 80 mm
Max tool diameter (no adjacent tools): 160 mm
Max tool length: 300 mm
Tool clamping: Air-monitored

Workpiece weight per pallet: 450 kg
Max workpiece weight: 10 kg
Pallet changer: 2-fold
Swivel unit: 2 pcs NC-controlled
Rotary table: NC-controlled (4 × 5th axis capability on one side)
Workpiece swing diameter: 550 mm
Clamping: Hydraulic + air-monitored
Clamping bridge supports: 2 pcs

Coolant: Emulsion system
Internal coolant supply: Yes
High-pressure pump: 70 bar
Coolant unit: Paper band filter + temperature controlled

Chip conveyor: Scraper type
Enclosure: Fully enclosed
Loading door: Automatic sliding
Lighting: Work area lighting included
Warning lamp: Yes

Probe system: IR measuring probe
Tool breakage monitoring: Toolinspect
Tool life monitoring: Yes
Tapping: Without compensation chuck
Remote service: TeleService modem
Automation interface: Gantry loader / robot ready

Air supply: 6 bar
Voltage: 3×400 V / 50 Hz
Total power: 133 kVA

Transport dimensions (L×W×H): 3230 × 5100 × 3050 mm
Installation space (L×W×H): 4350 × 7000 × 3100 mm
Machine weight: 14,500 kg
