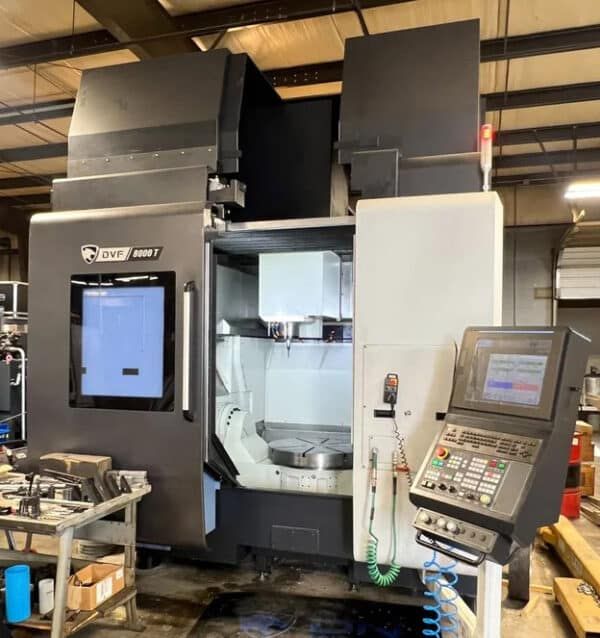

Doosan DVF8000T 5 Axis
AMERICA North (USA-Canada-Mexico)
DOOSAN DVF8000T
2020
Table Size 31.5"
Table Capacity 1,543 LB
X-Axis Travel 39.37"
Y-Axis Travel 35.43"
Z-Axis Travel 26.97"
A-Axis Rotation ±120°
C-Axis Rotation 360°
Spindle Speed 18,000 RPM
Spindle Motor 30 HP
Spindle Taper HSK-T63
Tool Capacity (ATC) 120
Max Rapids 1,772 IPM
Cutting Feedrate 885 IPM
Approximate Machine Weight 56,000 LB
Approximate Machine Dimensions 303" x 150" x 150"
Doosan CUFOS Control (Fanuc)
Simultaneous 5-Axis Vertical Machining Center with Turning Function
600 RPM Direct Drive Turning Spindle (C-Axis)
Renishaw Probe-Ready
Through-Spindle Coolant
Through-Spindle Air
Chip Conveyor (Rear Discharge)
Spindle Chiller
Coolant Chiller
AICC II 600 Block Look Ahead
Intelligent Kinematic Compensation (IKC) Software
Absolute Glass Scales (X/Y/Z)
Absolute Rotary Encoders (A & C Axes)
Spindle Orientation
Rigid Tapping
USB Port
Installed New in 2023
Approximately 200 Cutting Hours
