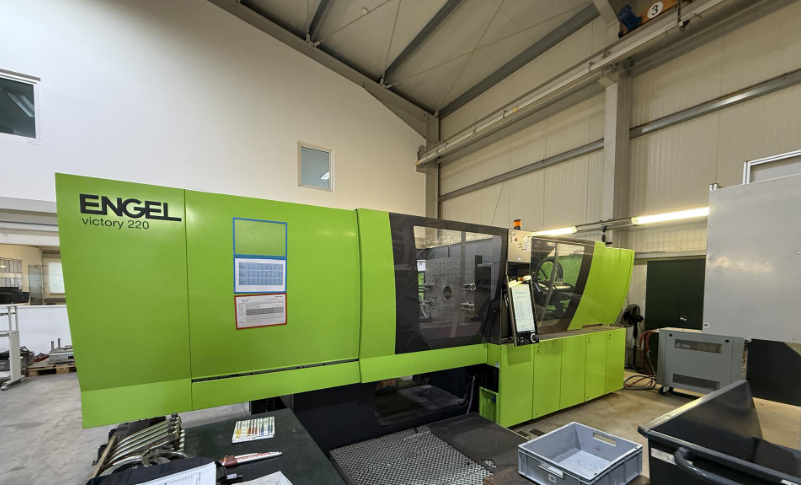

Engel Victory 750/220 spex 220 T

ENGEL Victory 750/220 SPEX – Technical data
Machine designation: VICTORY 750/220 SPEX

Plasticizing 1:
Screw diameter (standard): 45 mm
Available screw diameters: 40 / 45 / 50 / 55 mm
Screw stroke: 200 mm
Max. injection capacity: 318 cm3
Screw speed: 230 min-1
Recovery rate (3-zone screw): 24.2 g/s
Recovery rate (barrier screw): 30.1 g/s

Injection 1:
Injection rate: 229.0 cm3/sec
Injection pressure (regenerative): 1760 bar
Injection pressure (max): 2360 bar

Nozzle 1:
Nozzle stroke: 350 mm
Nozzle contact pressure: 67.2 kN

Plasticizing Unit 1:
L/D ratio: 20.0
Heating zones incl. nozzle: 5
Heating wattage: 13.4 kWel

Clamping unit:
Clamping force: 2200 kN
Opening stroke + cylinder tolerance: 759 mm
Minimum mold height: 300 mm
Maximum distance between platen: 1050 mm
Platen size horizontal × vertical: 880 × 830 mm
Drop out chute width: 650 mm
Maximum mould weight moving platen: 1500 kg
Maximum mould weight stationary platen: 1500 kg
Maximum mould weight total: 3000 kg
Dry cycle stroke: 250 mm
Dry cycle time: 2.00 s

Ejector:
Ejector stroke: 180 mm
Ejector force: 80.0 kN

Drive unit:
Oil reservoir capacity – injection unit: 330 l
Oil reservoir capacity – clamping unit: 210 l

Oil filter / Oil cooler:
Cooling power standard (25 °C water inlet): 12.0 kW
Water consumption oil cooler 25 °C: 1.00 m3/h
Water consumption oil cooler 32 °C: 2.10 m3/h

Machine basics:
Weight total (without oil): 12.2 t
Total power: 72.0 kW

Hydraulic drive variant HV1 (standard)
Microcomputer CC300
6-fold flow regulator, 0–10 l/min
