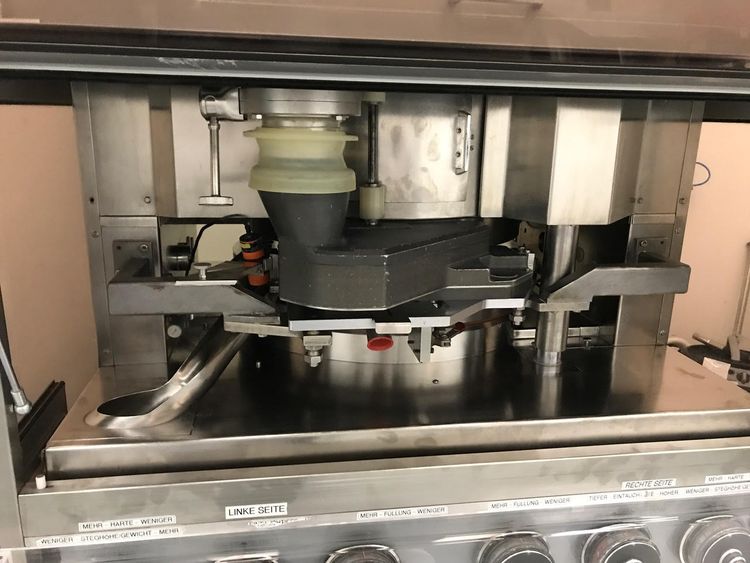

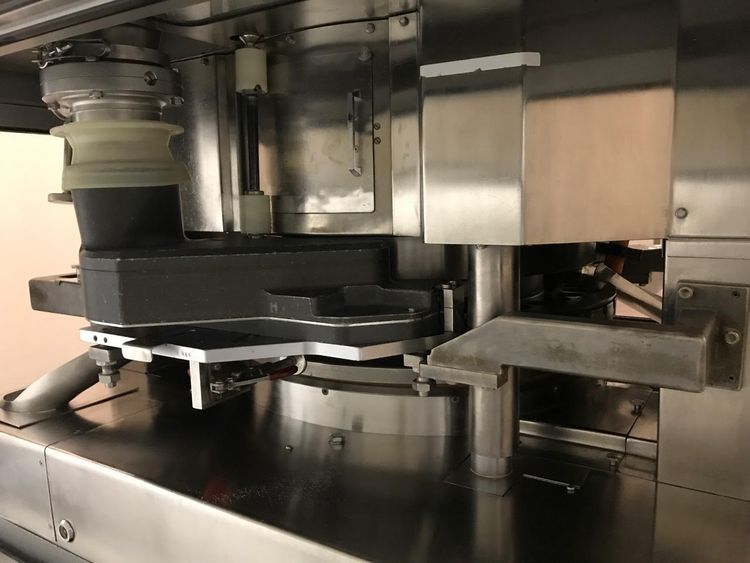

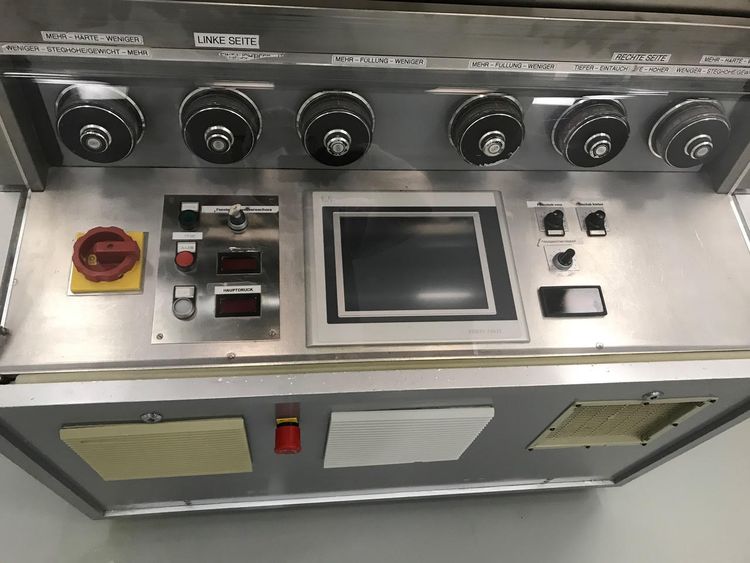

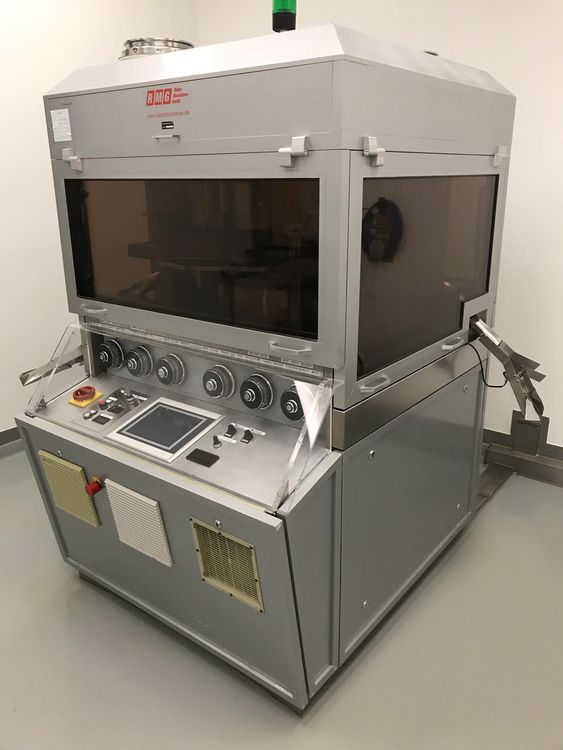

Fette P3100 EU D Tablet Press

With 37 stations, recently overhauled by a german company
Number of punch holding stations: 37
Tablet output max. units/h: 341.880
Tablet dia. Max mm 25
Filling depth max mm 22
Tablet thickness max. mm 11
Compression force max. kN 100
Initial compr. force max kN 20
Pitch circle dia. Mm 508
Dieplate speed rpm 25-77
Die diameter mm 38.1
Die height mm 23.8
Punch shank dia. mm 25.35
Punch length mm 133.6
Upper punch penetration mm 2-8
Height of the machine without filling hopper mm 1965
Height of the machine with filling hopper mm 2105
Projected floor area mm 1490x1230
Weight approx.. 3400 kg
