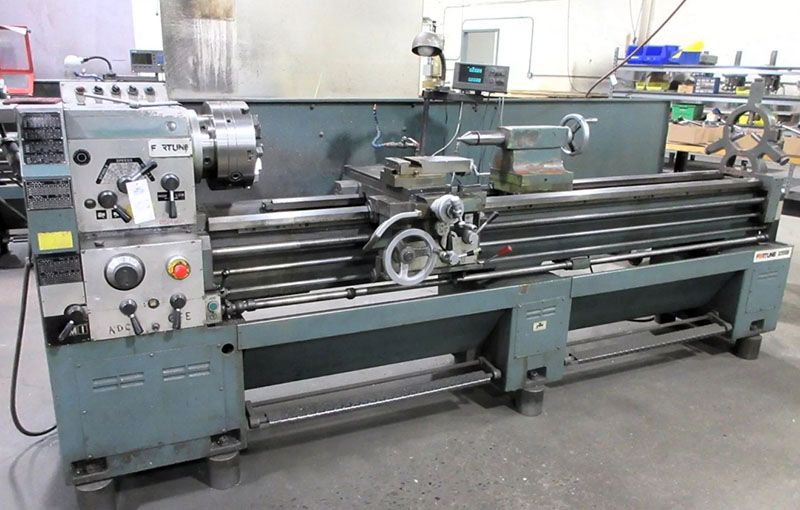

Fortune Engine Lathe 1500 RPM S20100G

Swing Over Bed Ways: 20"
Swing in Removable Gap: 27"
Swing Over Cross Slide: 11.25"
Distance Between Centers: 100"
Width of Bed: 14.125"
Hole Thru Spindle: 3.125"
Spindle Nose: D1-8 Camlock
Spindle Speed Range: 31 - 1500 RPM
Longitudinal Feed Range: 0.0033" - 0.0233"
Cross Feed Range: 0.0016" - 0.0108"
Inch Threading Range: 4 - 56 TPI
Metric Threading Range: 0.5 - 7 mm
Tailstock Spindle Travel: 6"
Tailstock Spindle Taper: #4 MT
Approximate Floor Space: 145"L x 36"W x 50"H
Approximate Weight: 6,000 lbs
Inch & Metric Threading Capability
Removable Gap
Two Axis Digital Readout
3-Jaw Chuck
8" Capacity Roller Type Steady Rest
Thread Dial Indicator
Foot Brake
Coolant System with Removable Chip Pans
Hardened & Ground Bed Ways
10 HP Main Motor
