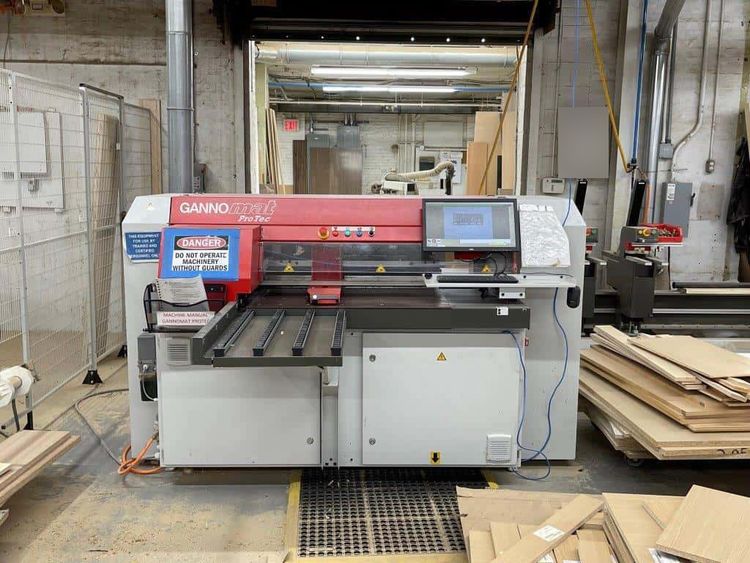

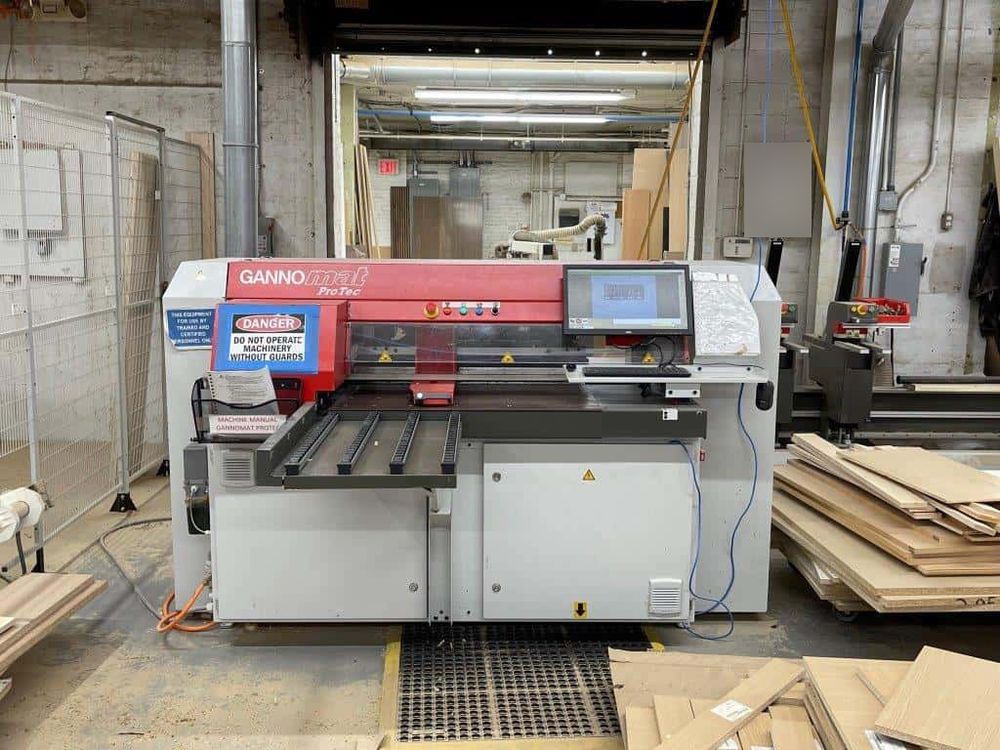

Gannomat 571-A

Protec Feed Thru CNC Machining Center
5HP HSK63F Main Spindle
3 Position Tool changer
21 Drill Boring Block; 13 vertical 8 Horizontal 6 (Y) 2 (X)
Grooving Saw
Windows PC Based Operating System
Automatic Lubrication
Compressed air connection 6-8 bar / 85-112 psi
Workpiece width (X): min. 60 mm / max. 1000 mm (min. 2.36 inches / max.39.37 inches)
Workpiece height (Z): min. 6 mm / max. 60 mm (min. 0.236 inches / max. 2.362 inches)
Workpiece length (Y): min. 250 mm (9.842 inches) at the through feed mode max. 5600 mm programable workpiece length in the software
Workpiece weight: max. 75 kg (165.347 LBS)
Very clean immediately with available all manuals and Electrical Specs included
